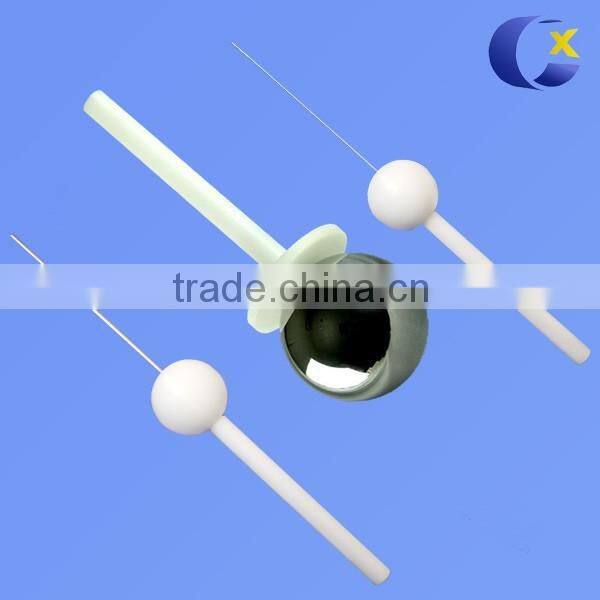

IEC60529/IEC60065 Sphere Test Probe A & IP1X Test Probe A

IEC60529/IEC60065 Sphere test probe A & IPX Test probe A

1.Introduction:

Test Sphere Probe is intended to verify protection of persons against access to hazardous parts for an IP1  Code.Also used to verify protection from access with the back of the hand for an IP suffix A code.

 It is strictly designed and manufactured according to IEC61032 IEC60529 IEC60065 standards and other similar international standards.

2.Feature:

• In accordance with VDE 0470 part 2 picture 1 probe A resp. IEC/EN 61032
• Additional standards: VDE 0470 part 1 resp. IEC/EN 60529
• Access probe to assess protection of persons against access to dangerous parts and also against access with the back of the hand.

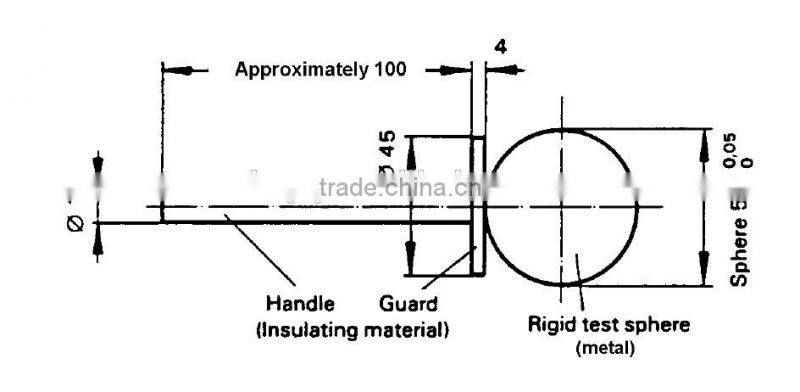

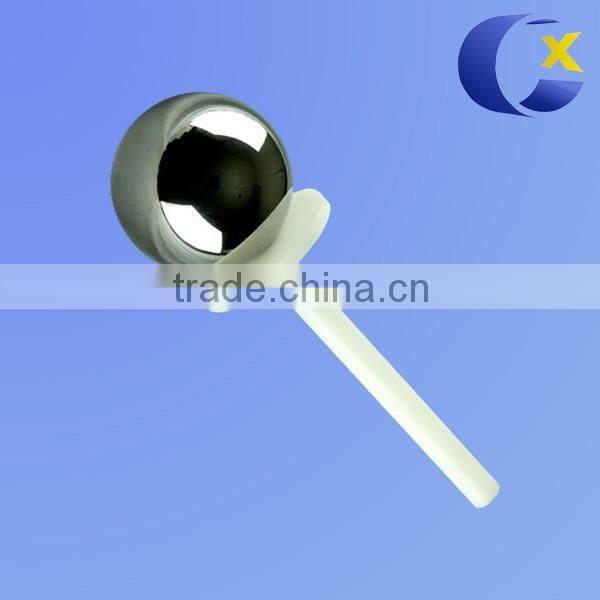

• The rigid test sphere Ø 50 mm is made of high-grade steel. It is chromed and hardened. The handle is made of plastic. For contact- and continuity checks it has an integrated 4 mm receptacle which is conductively connected to the test ball.

4.Technical parameter:
