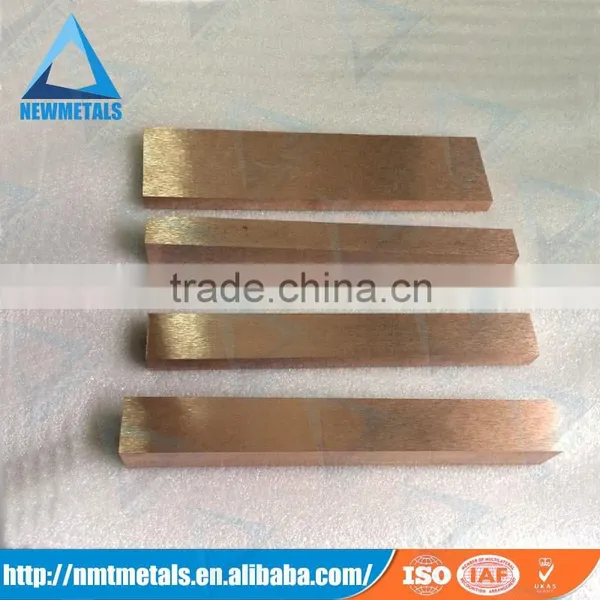

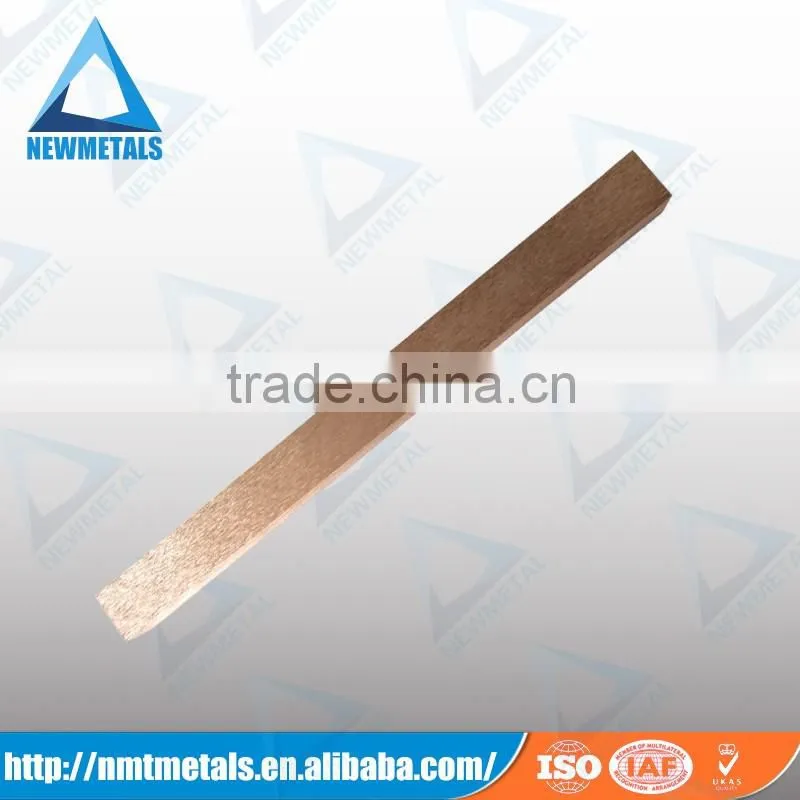

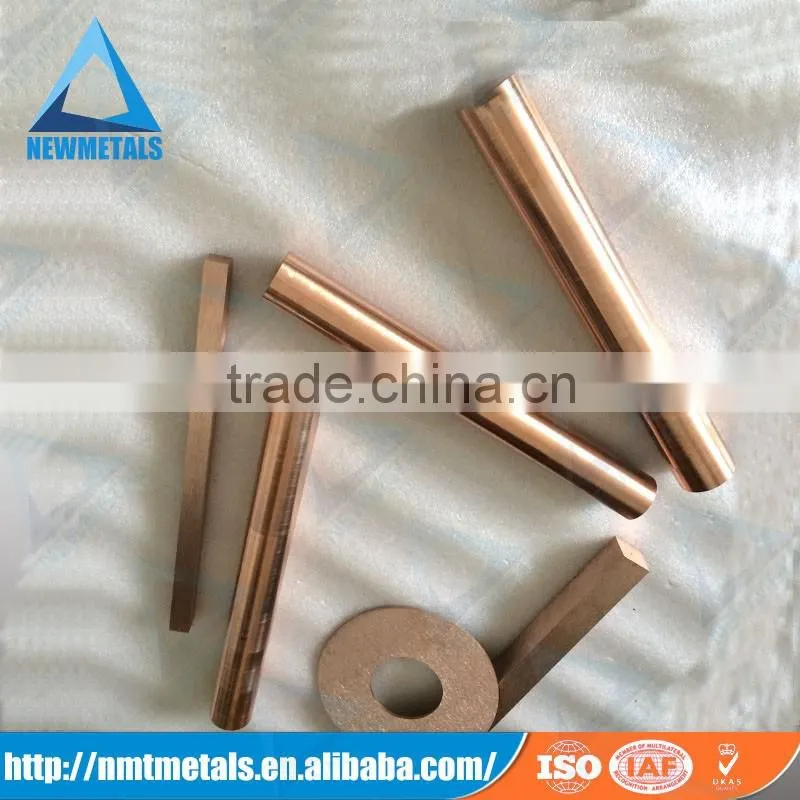

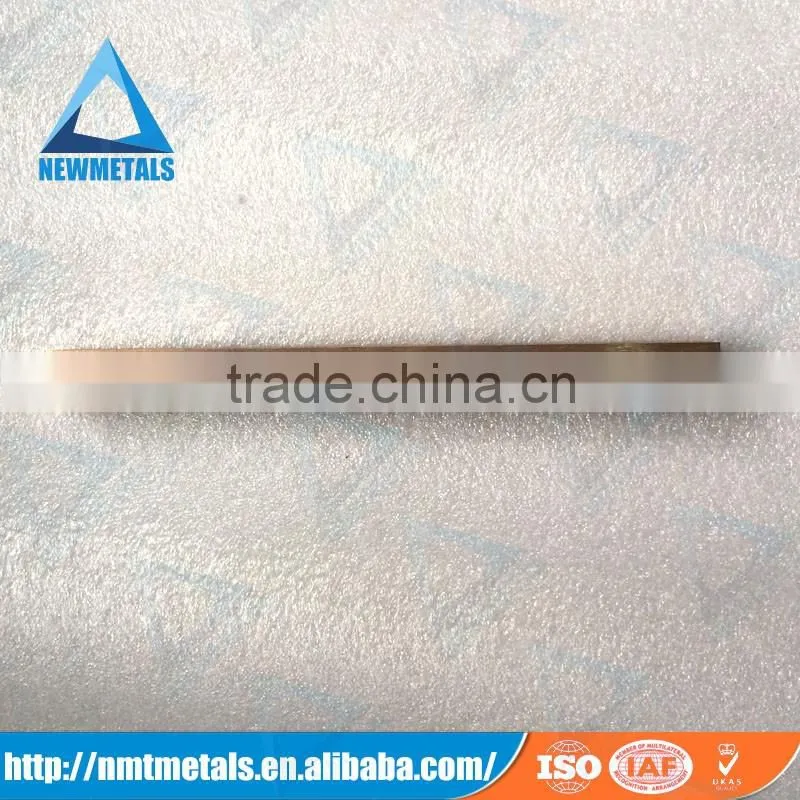

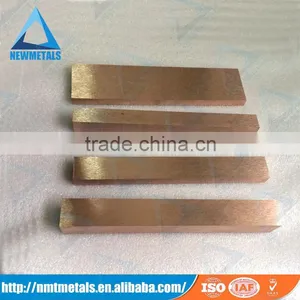

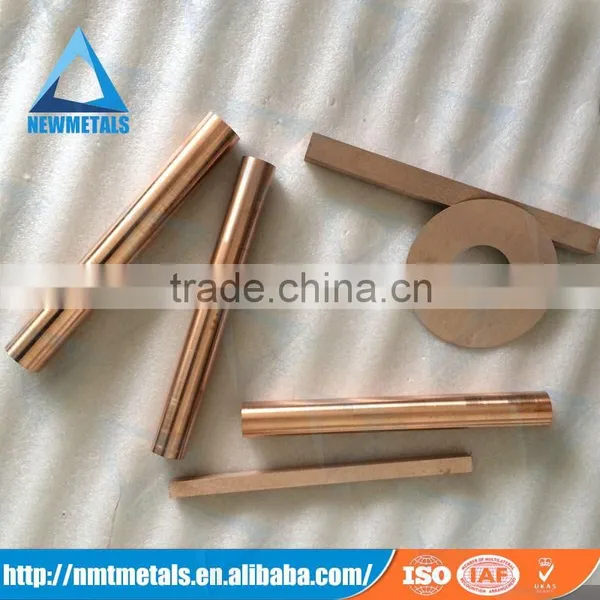

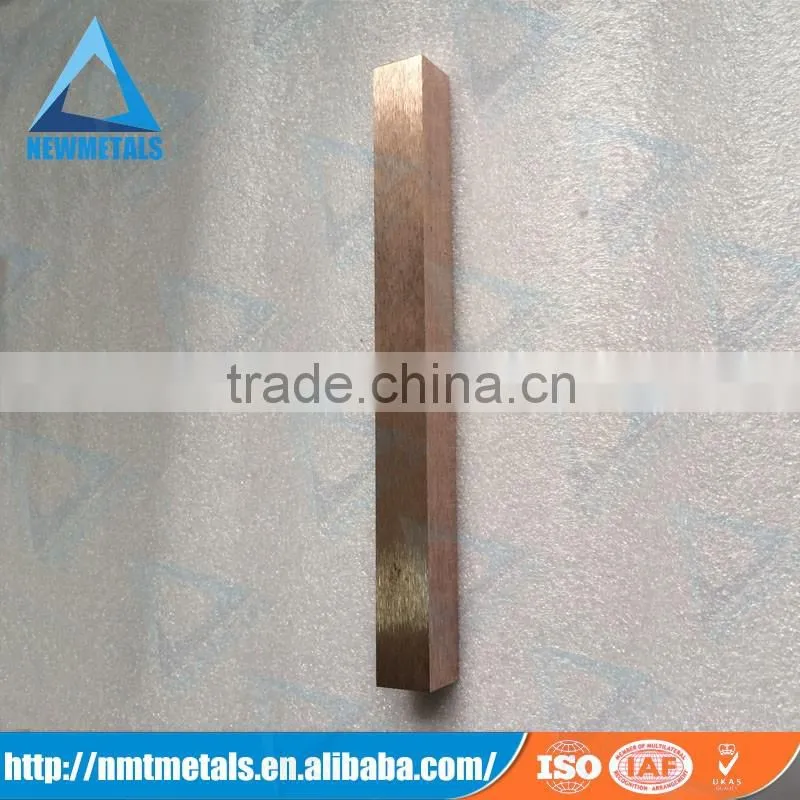

Help CenterGold Hard Metal Tungsten Copper Alloy Bar/copper Tungsten Alloy Electrode Tungsten Copper Electrode Low Price
Related Products
-
for Edm Copper Electrode and Tungsten Material Resistance Welding Electrode W75 Tungsten Copper Alloy RodUS$ 20 - 25MOQ: 500 Pieces -
SF6 Circuit Breakers High Quality Tungsten Copper Alloy Bar/sheet/plateUS$ 1 - 100MOQ: 10 Pieces
-
For PCD Tools Disk Erosion Tungsten Copper Electrode/EDM Electrode/welding ElectrodeUS$ 15 - 180MOQ: 5 Pieces
-
Tungsten Copper Alloy Arcing Contacts/arc Runners/copper Tungsten Contacts RivetsUS$ 0.45 - 6MOQ: 50 Pieces
-
Tungsten Copper Alloy High Medium Low Voltage Solenoid Switch Contact/ Heavy Duty Vacuum Switch ContactUS$ 0.45 - 6MOQ: 50 Pieces
| Product Name | Cu50W50 Cu10W90 tungsten copper alloy bar/copper tungsten alloy electrode |
| Model No. | various on request or drawings |
| Brand |
nmtmetals |
| Material |
Wcu |
| Trial order | Available |
| ODM/OEM | Available |
| Application | industries as engine, electrical power, electron, metallurgy, electric vaccum parts ,spaceflight and aviation. |
1.heat-resistant
2.ablate-resistant
3.high-intensity
4.excellent thermal andelectrical conductivity
5.easy to be machined
Specifications
tungsten copper rods
1.purity:99.95%min
2.Size:dia(0.08-100)*L
3.surface:black,ground,polished
4.Dimension: Φ(0.08-100)×L(mm)
We can offer various type with different functions for customers, not only manufacture
according to the international standard, but also can design as per the requirements of customers.
| Type | Chemical composition (wt%) | Density | Hardness | Resistivity | IACS | Bending strength | ||
| Cu | Total impurity content(≤) | W | g/cm3 (≥) | HB Kgf/mm2 ( ≥) | μΩ.cm (≤) | % (≥) | MPa (≥) | |
| W50/Cu50 | 50±2.0 | 0.5 | balance | 11.85 | 115 | 3.2 | 54 | -- |
| W55/Cu45 | 45±2.0 | 0.5 | balance | 12.3 | 125 | 3.5 | 49 | -- |
| W60/Cu40 | 40±2.0 | 0.5 | balance | 12.75 | 140 | 3.7 | 47 | -- |
| W65/Cu35 | 35±2.0 | 0.5 | balance | 13.3 | 155 | 3.9 | 44 | -- |
| W70/Cu30 | 30±2.0 | 0.5 | balance | 13.8 | 175 | 4.1 | 42 | 790 |
| W75/Cu25 | 25±2.0 | 0.5 | balance | 14.5 | 195 | 4.5 | 38 | 885 |
| W80/Cu20 | 20±2.0 | 0.5 | balance | 15.15 | 220 | 5 | 34 | 980 |
| W85/Cu15 | 15±2.0 | 0.5 | balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| W90/Cu10 | 10±2.0 | 0.5 | balance | 16.75 | 260 | 6.5 | 27 | 1160 |
Please choose freely from the wide range of already available tungsten alloy rod or contact us with
your specifications. Please do not hesitate to contact Irene via Skype: Irene Xie .

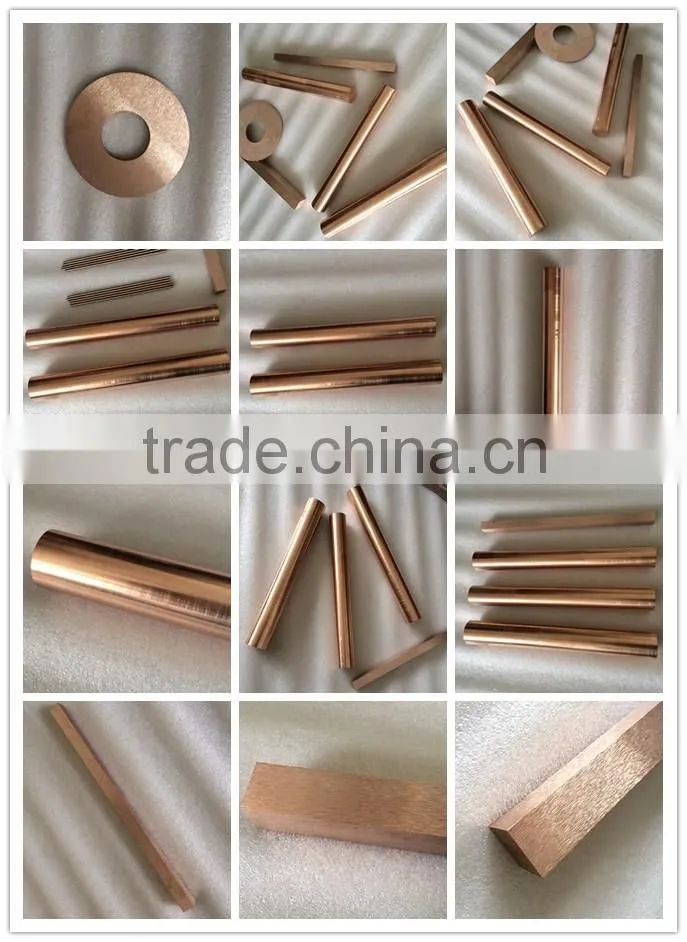

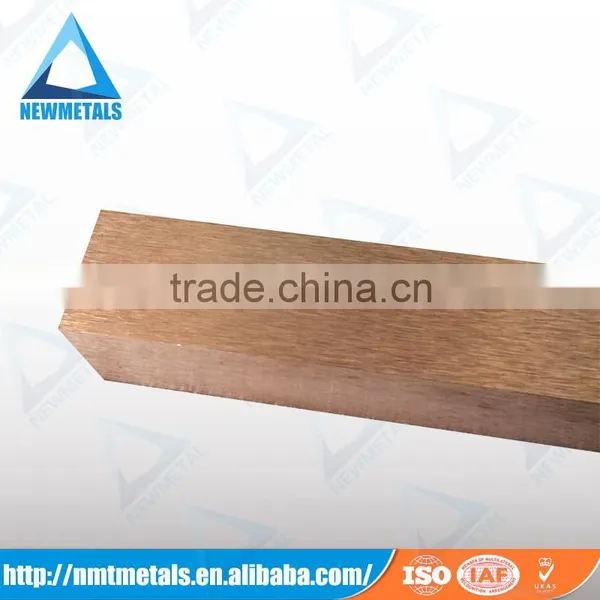

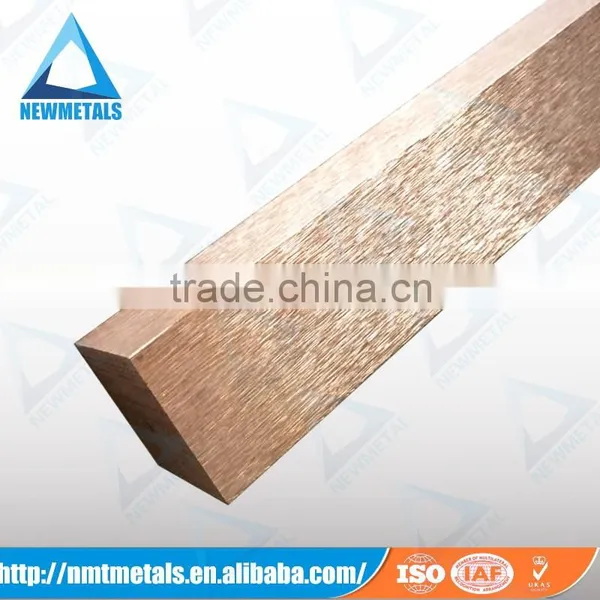

Product display:
Zhuzhou Newmetal Materials Co., Ltd. is a refractory metal manufacturer specializing in the raw material and deep-processing product of tungsten, molybdenum, tantalum, niobium, rhenium and tungsten carbide.
• We have conquered the technological difficulties in welding between the tungsten carbide wear-resistant material and stainless steel-based and iron-based. The geometrical tolerance of weldment can be controlled in level A.
• Relying on powder metallurgy institute and engineering materials institute of Central South University, We have established a production-learning-research base to provide powerful technologic support for products R&D. And we have the whole production equipment from mixing to finish machining, including the world’s most advanced cold isostatic pressing machine which can manufacture the widest and longest plate.
•Our 21 technicians, 10 after-sales personnel and 120 manufacturing workers are all heartedly at your service.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
