copper tungsten electrode tungsten copper electrode price
Tungsten copper (Class 10) is used for flash and butt welding electrodes in applications in which high heat resistance, higher electrical and thermal conductivity, high malleability, and low thermal expansion are required. This metal is created by combining 45% copper and 55% tungsten, resulting in a dense, hard metal with superior wear resistance and strength.
Tungsten copper (Class 11) contains 25% copper and 75% tungsten. Like Class 10, it has superior wear resistance and strength and good thermal and electrical conductivity. However, it is harder than Class 10 and used in applications that require moderate pressure. Common uses include projection welding electrodes, flash and butt welding electrodes, light upsetting and seam welding bushings, and spot welding low conductivity steels. It is also widely used in chip carriers, substrates, flanges, and frames for power semiconductor devices.
Tungsten copper (Class 12) contains 20% copper and 80% tungsten. Being stronger than Class 10 and 11 tungsten copper, it is commonly used in heavy duty projection welding electrodes, electro-forming and forging electrode facings for upsetting studs and rivets, and cross wire welding. It is also used in the liners of some specialty shaped explosive charges for the defense and oil and gas industries.
Advantages
| Type | Chemical composition (wt%) | Density | Hardness | Resistivity | IACS | Bending strength | ||
| Cu | Total impurity content(≤) | W | g/cm3 (≥) | HB Kgf/mm2 ( ≥) | μΩ.cm (≤) | % (≥) | MPa (≥) | |
| W50/Cu50 | 50±2.0 | 0.5 | balance | 11.85 | 115 | 3.2 | 54 | -- |
| W55/Cu45 | 45±2.0 | 0.5 | balance | 12.3 | 125 | 3.5 | 49 | -- |
| W60/Cu40 | 40±2.0 | 0.5 | balance | 12.75 | 140 | 3.7 | 47 | -- |
| W65/Cu35 | 35±2.0 | 0.5 | balance | 13.3 | 155 | 3.9 | 44 | -- |
| W70/Cu30 | 30±2.0 | 0.5 | balance | 13.8 | 175 | 4.1 | 42 | 790 |
| W75/Cu25 | 25±2.0 | 0.5 | balance | 14.5 | 195 | 4.5 | 38 | 885 |
| W80/Cu20 | 20±2.0 | 0.5 | balance | 15.15 | 220 | 5 | 34 | 980 |
| W85/Cu15 | 15±2.0 | 0.5 | balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| W90/Cu10 | 10±2.0 | 0.5 | balance | 16.75 | 260 | 6.5 | 27 | 1160 |
Quick Response:feedback within 24hours
High quality:Well-trained workers and more than 10 years experience technical staff
Competitive price :Directly from factory to save your money.
short lead time:sample 5-10days,large order about 20 days
Flexibility:order no matter how big or small all welcome
OEM & ODM both ok
We can offer various type with different functions for customers, not only manufacture according to the international standard, but also can design as per the requirements of customers.
Please choose freely from the wide range of already available copper tungsten electrode tungsten copper electrode or contact us with your specifications.

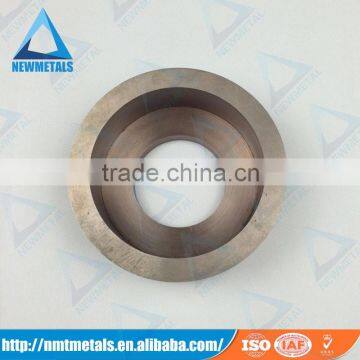

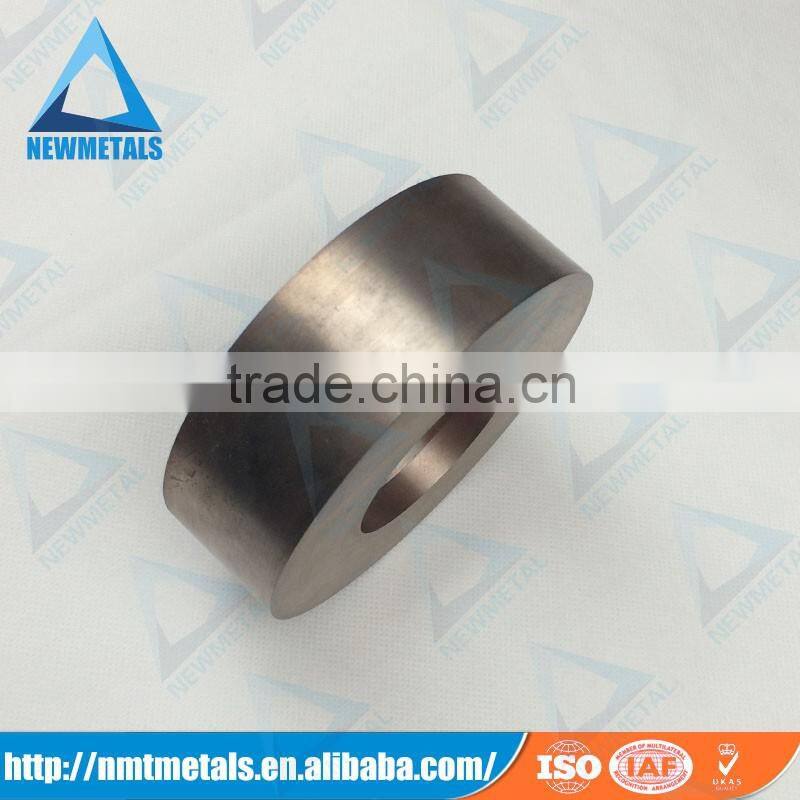

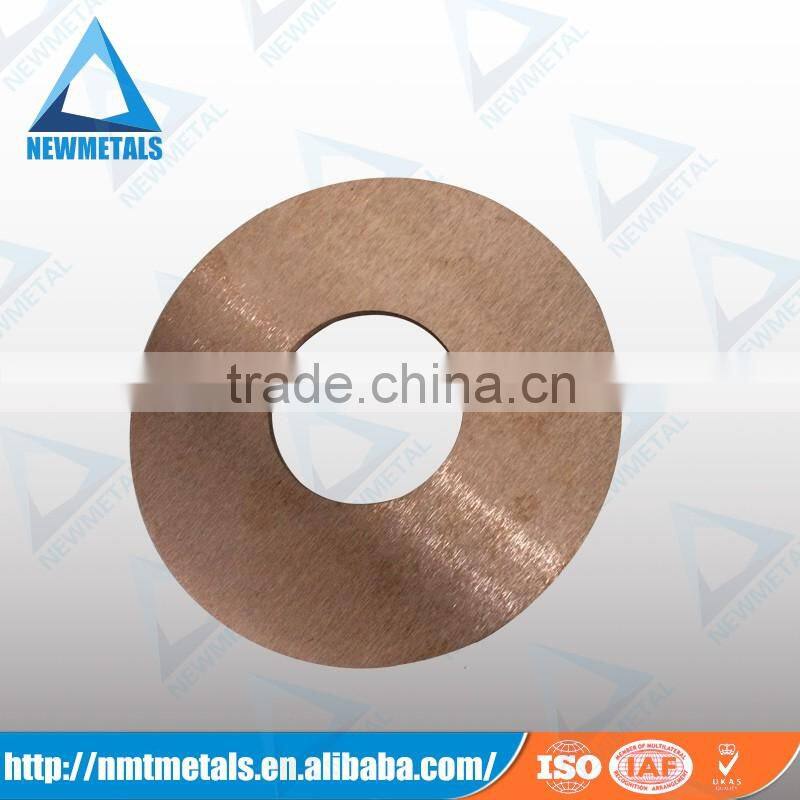

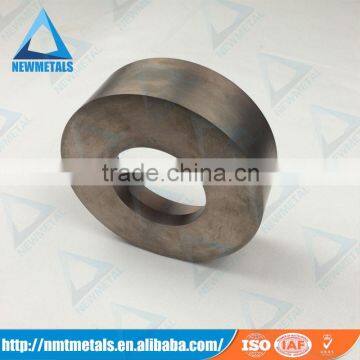

Product display
Zhuzhou Newmetal Materials Co., Ltd is a refractory metal manufacturer specializing in the raw material and deep-processing product of tungsten, molybdenum, tantalum, niobium, rhenium and tungsten carbide.
• We have conquered the technological difficulties in welding between the tungsten carbide wear-resistant material and stainless steel-based and iron-based. The geometrical tolerance of weldment can be controlled in level A.
• Relying on powder metallurgy institute and engineering materials institute of Central South University, We have established a production-learning-research base to provide powerful technologic support for products R&D. And we have the whole production equipment from mixing to finish machining, including the world’s most advanced cold isostatic pressing machine which can manufacture the widest and longest plate.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
