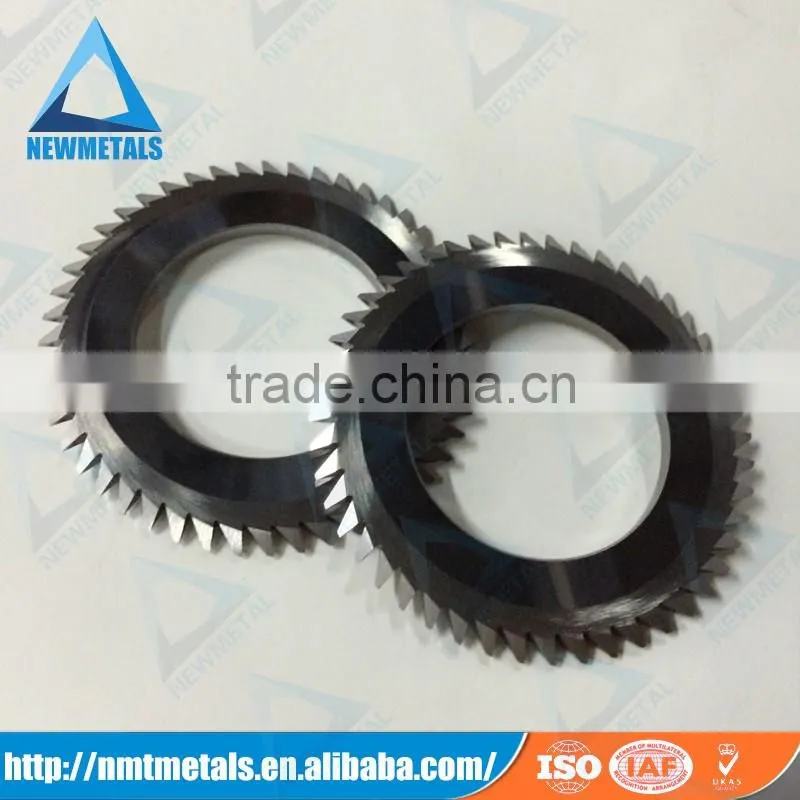

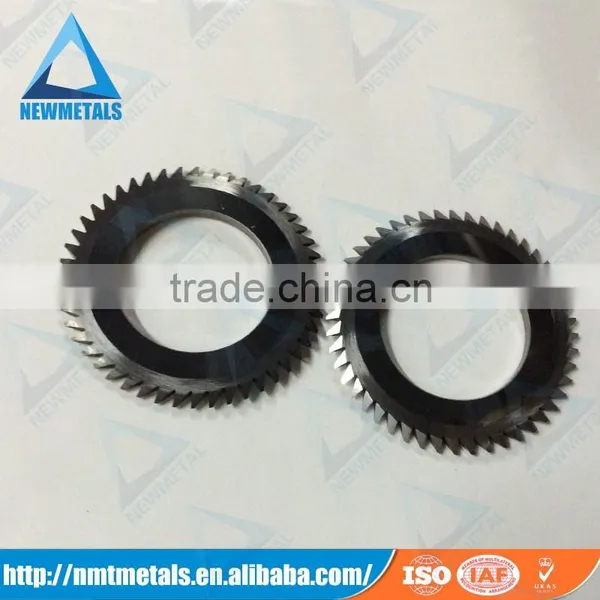

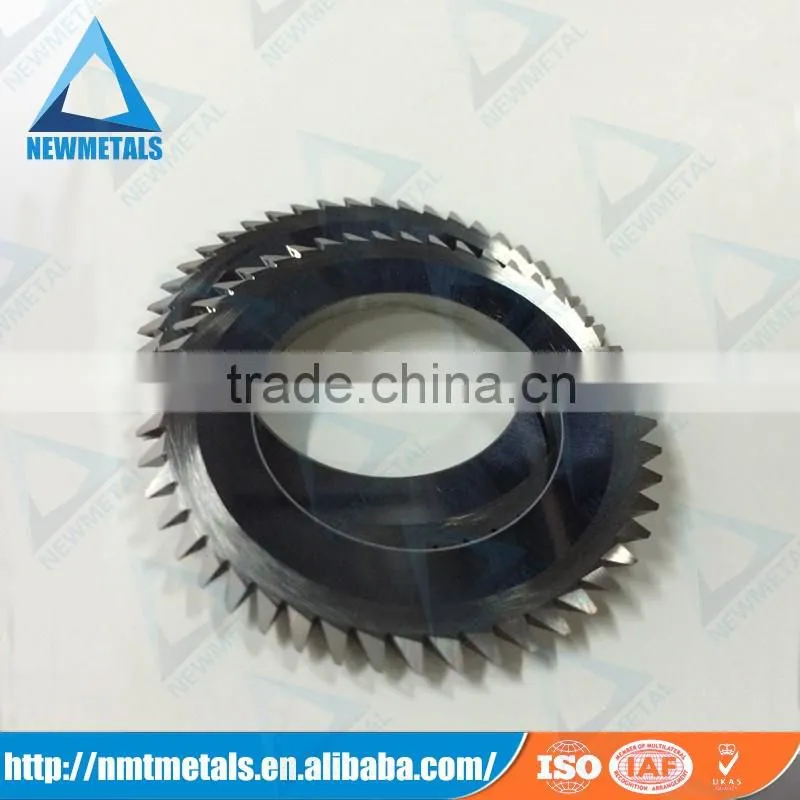

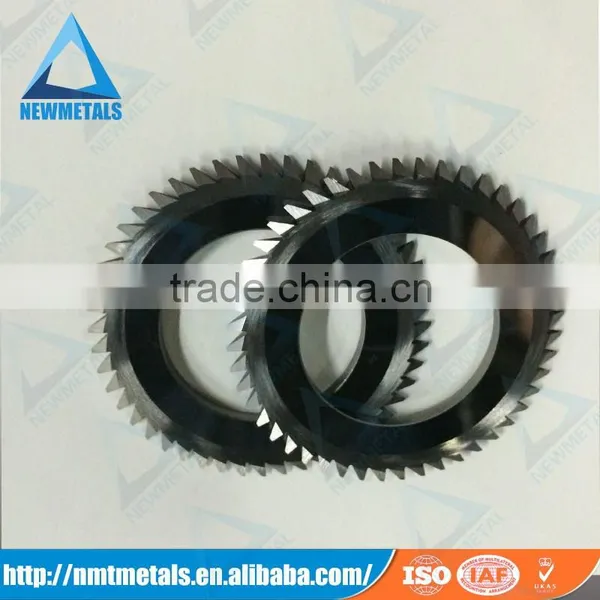

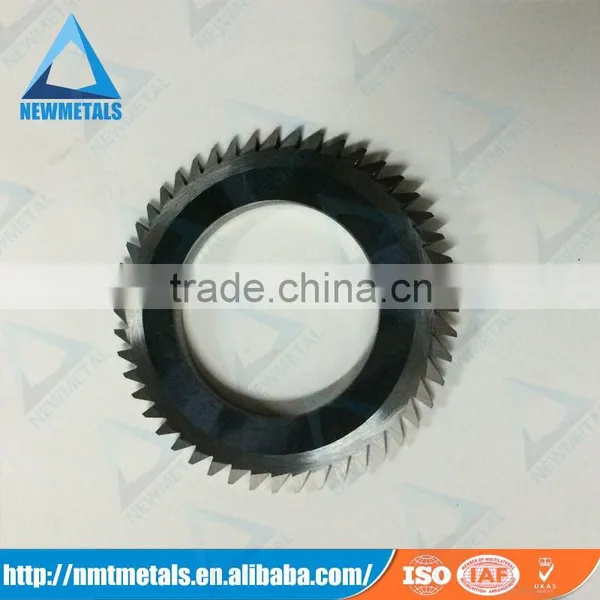

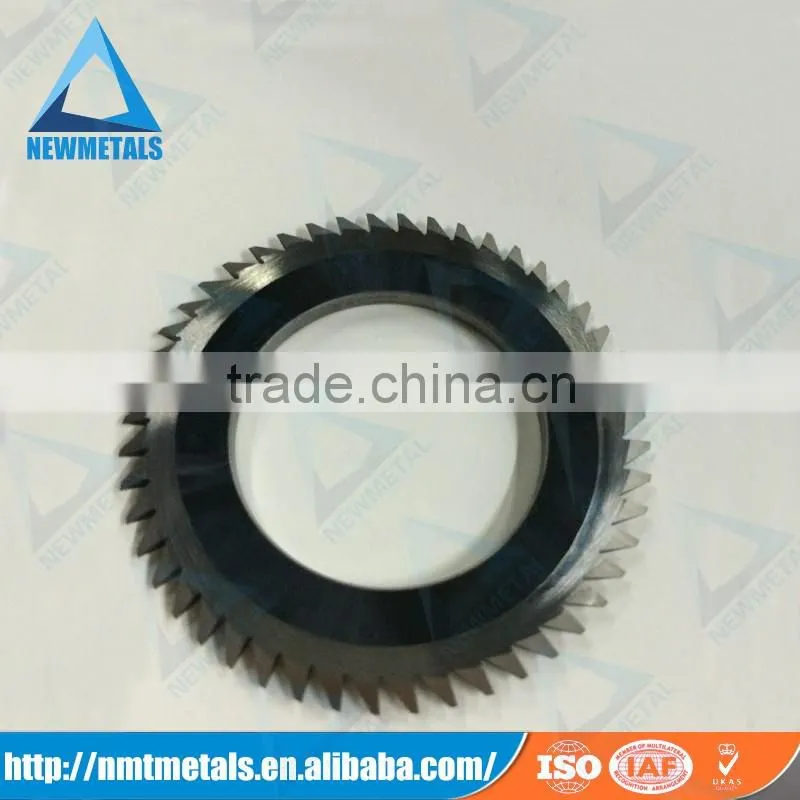

39.5mm Solid Carbide v-cut saw blade for Printed circuit board
Product name: PCB V-CUT saw blade
Features:
V-cutting saw blade is mainly used in CNC V-cutting machine for grooving the V slot 0n the PCB. The V-cutting saw blade has high hardness, high wear resistance and long life time.
PCB machined with V-cutting saw blade has a smooth cutting face without burr.
Low noise and low dust while grooving. It can significantly improve the quality of processed products.
Why chose us?
- High quality tungsten carbide raw material,not reclaimed materials.
- Ultrafine tungsten powder, better wear resistance and higher hardness.
- Higher accuracy which can be 2 μm.
- Longer service life. 1-2km longer cutting depth than the market average products.
- Good surface finish.
Standard size of PCB V-cutting saw blade
| Size | No.of teeth | Angular |
| φ56×φ25×2.4 | 32/40/48 | 20°/25°/30°/35°/40° |
| φ51×φ25×2.4 | 32/40/48 | 20°/25°/30°/35°/40° |
| φ51×φ25×2.0 | 32/40/48 | 20°/25°/30°/35°/40° |
| φ39×φ17×2.4 | 32/40/48 | 20°/25°/30°/35°/40° |
| φ32×φ17×2.4 | 32/40/48 | 20°/25°/30°/35°/40° |
| φ28×φ15×2.0 | 32/40/48 | 20°/25°/30°/35°/40° |
Other customized size is also available, welcome to contact us!
Zhuzhou Newmetal Materials Co., Ltd. is a refractory metal manufacturer specializing in the raw material and deep-processing product of tungsten, molybdenum, tantalum, niobium, rhenium and tungsten carbide.
• We have conquered the technological difficulties in welding between the tungsten carbide wear-resistant material and stainless steel-based and iron-based. The geometrical tolerance of weldment can be controlled in level A.
• Relying on powder metallurgy institute and engineering materials institute of Central South University, We have established a production-learning-research base to provide powerful technologic support for products R&D. And we have the whole production equipment from mixing to finish machining, including the world’s most advanced cold isostatic pressing machine which can manufacture the widest and longest plate.
•Our 21 technicians, 10 after-sales personnel and 120 manufacturing workers are all heartedly at your service.
