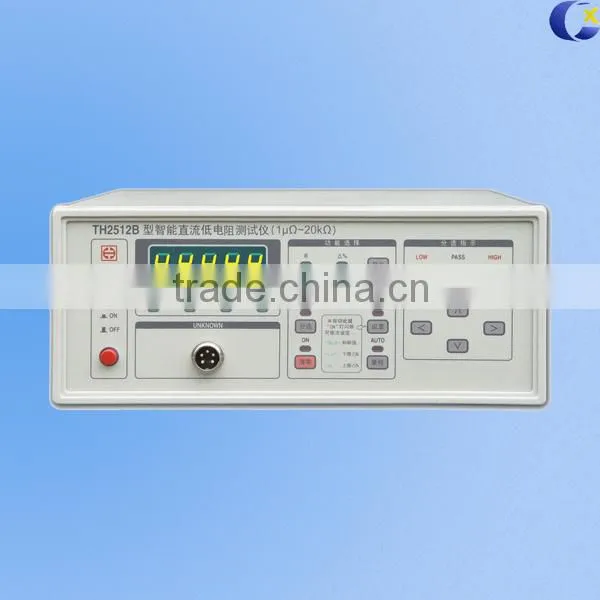

Digital Low Resistance Tester

Digital Low Resistance Tester thumbnail-1
Digital Low Resistance Tester photo-1
US$ 1 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Chuangxin
Model Number:
TH2512B
Contact Supplier Request Quote Chat Now
Shenzhen Chuangxin Instruments Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Chuangxin
Model Number TH2512B
Power Electronic
Usage Other, Resistance Test

Digital DC Low Resistance Tester (DC Low-Ohm Meter)

The TH2512 series digital dc low resistance tester is an intelligent, wide range, high-precision tester which suitable for transformer, inductor copper resistance, relay contact resistance, switches, connectors, wire resistance, contact resistance component solder contact resistance, PCB line, welding hole resistance and metal detection, etc. It’s applied to the production line and can use HANDLER interface and GPIB interface (option) output good/bad signal, in order to improve production line automation testing capability.

Features:

1: 4 1/2 digits LED display, good stability

2: Direct value and percentage error display

3: RS232C, GPIB interface for option

4: Built-in comparator

5: High, Low, Pass sort function

Parameters:

Model

TH2512B

TH2512A

TH2512

Accuracy

0.1% +2 digits

0.05%+2digits

0.05%+2digits (2M: 0.2%)

Display Range

0.001mΩ-19.999kΩ

0.01mΩ-199.99kΩ

0.001mΩ-1.9999MΩ

Current

1A/100/10/1mA /100μA

100/10/1mA /100/10μA

1A/100/10/1mA /100/10/1μA

Range

20/200mΩ/2/ 20/200Ω/2/20kΩ

200mΩ/2/20/ 200Ω/2/20/200kΩ

20/200mΩ/2/200Ω 2/20/200kΩ/2MΩ

Max. Resolution

1μΩ

Speed (times/s)

Fast: 10, Slow: 2.5

Comparator

High, low, pass sorting function

Range Way

Automatic, keep

Trigger Mode

Internal, manual, external

Interface

Handler, RS-232C (option), GPIB (option)
