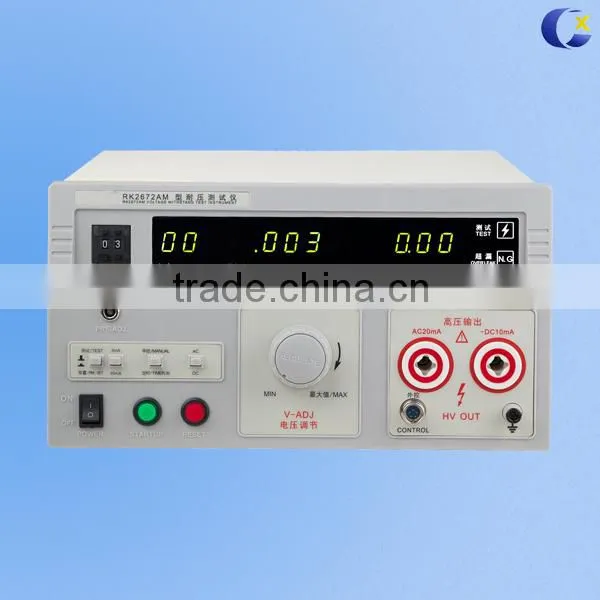

10KV AC Withstand High Voltage Tester with 20mA current
RK2672 series hi-pot tester is used to measure the dielectric (withstand voltage) strength, which can be intuitive, accurate and fast tested the electrical safety performance indicators of the object, such as the breakdown voltage, leakage current etc. And it can be used as a high voltage source to test performance of the components and whole machine.
The Hi-pot tester is applied to the home appliances, computer peripheral equipment, electric products, communication products, lighting products, small home appliance products, lighting equipment, electronic components, transformers, motors, compressors, electric heat pipe, wire, cable and high voltage safety system’s withstand voltage and leakage current test, as well as it’s an indispensable dielectric equipment of scientific research laboratory and technical supervision department.
Parameters:
Model |
RK2671AM |
RK2671BM |
RK2671CM |
Output Voltage |
AC/DC: 0-5/10KV |
||
Current Range |
AC: 0-2-20mA DC: 0-2/10mA |
AC: 0-2/20/50mA DC: 0-2/20mA |
AC: 0-2/20/100mA DC: 0-2/20mA |
Output Waveform |
50/60Hz Sine waveform |
||
Voltage Accuracy |
±5% |
||
Current Accuracy |
±5% |
||
Test Time Set |
1~99s ±1% |
||
Power Consumption |
≤30W |
||
Power Supply |
AC 220V ±10% 50HZ/60HZ |
||
Weight |
15KG |
27KG |
32KG |
Accessory |
Withstand voltage test rods, test line, grounding cable and power cable |
||
