Home > Instruments & Meters > Test Instrument > Test Machine > 2672 Ac/dc Withstanding Voltage And Insulation Tester Quality Choice

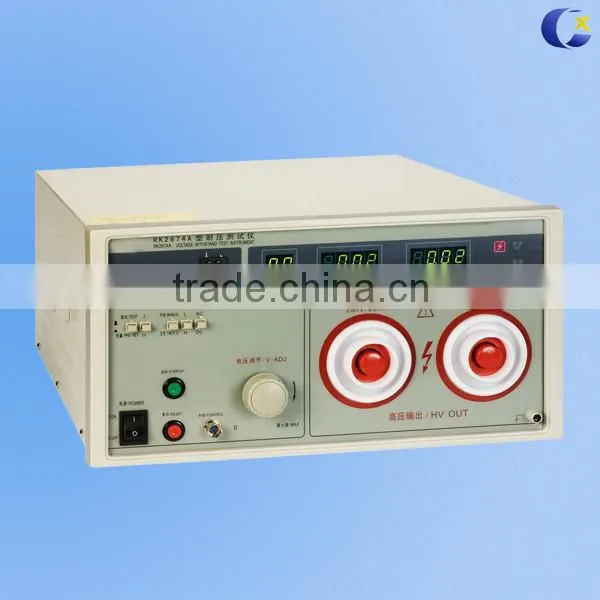

2672 Ac/dc Withstanding Voltage And Insulation Tester Quality Choice

US$ 500 - 3,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

RK2672

Contact Supplier Request Quote Chat Now

Shenzhen Chuangxin Instruments Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name cx

Model Number RK2672

Power Electronic

Usage Other, hipot testing

New Ac/dc Hipot Tester

Key words: withstand voltage tester, high Voltage tester, Hipot tester, hipot

Withstanding voltage insulation tester of multichannel scanning, composed of a master controller and a scan box. They can output AC/DC withstanding voltage insulation testing voltage in four-way, eight-way or sixteen-way respectively, conducting time sharing scanning test of several channels and testing the channels at the same time. What’s more, they can rapidly and accurately measure the withstanding voltage insulation tests of electronic components, household electrical appliances, transformers, lighting electrical appliances, electric tools and heating appliances, improving the testing efficiency.

Model	RK2672A/AN	RK2672B	RK2672C	RK2672D	2672E
Output Voltage Range	0~5kv(AC/DC)	0~5kv(AC)	0~5kv(AC/DC)	0~5kv(AC/DC)	0~5kv(AC)
Voltage Resolution	10V	10V	10V	10V	10V
Voltage Accuracy	±5%	±5%	±5%	±5%	±5%
Leakage current (AC)	0-2/20mA	0-100mA	0-2/20/100mA	0-2/20/200mA	0-2/20/200mA
Leakage current (DC)	0-2/10mA		0-2/20mA	0-2/20mA
Current Resolution	0-2mA:1μA 2-20mA:10μA	0~2mA:1μA 2~20mA:10μA 20~100mA:100μA		0~2mA:1μA 2~20mA:10μA 20~200mA:100μA	0~2mA:1μA 2~20mA:10μA 20~200mA:100μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	100VA	500VA	500VA	1000VA	1000VA
Capacitor of Transformer	500VA	750VA	750VA	1500VA	1500VA
Display Form	LED Digital display
Power Requirements	220V±10%,50Hz±5%
Operation Environment	0°C~40°C,≤85%RH
Dimensions	320270180mm		430370200mm		430370200mm
Weight	9.4kg	13.2kg	17.2kg	32kg	32kg

Service we can provide:

1.High quality guarantee.

2.Shipment/Freight with professional documents.

3.Packing as your request, with photo before shipment.

4.Professional after-service from our engineers.

5.Warranty: 1 year.

Our advantages:

Professional technology support.

Full experience of large numbers containers loading in Chinese sea port.

Fast shipment by reputed shipping line.

Best service after shipment with emails.

Cargoes photo before and after loading into container.

Our concept:

1.Client is first. We are trying to bring maximum profit to our clients and we only share small.

2.Credibility is the most important.

3.Quality control is our life.

4.Great sense of responsibility.

We will be responsible for not only our products, our clients, our suppliers, also the society

We can also provide Test Fingers & Probes,Spring impactor,Go and IEC60061-3 Not Go Gauge,Flammability Testing equipment,Plug and Socket Gauges ,ETC

welcome to your inquiry!
