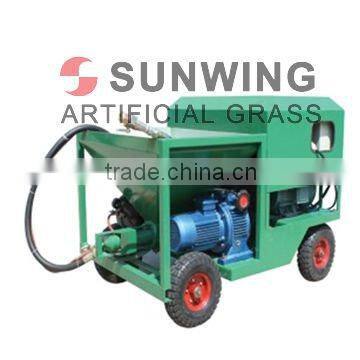

SY-100 Spraying Machine

Specifications

Item No.	product information		net  weight   (KG)	gross weight   (KG)	photo reference
	product  prupose	packing method
SY-100 Spraying  machine	mainly used for spraying the surface layer of the air  permeability or  mixed type plastic  cement stadiums	frame structure  on the bottom,  plastic film  covered outside	400	600

1.Product Purpose

 Mainly used for spraying the surface layer of the air permeability or mixed type plastic cement stadiums

2.Main Technical Parameters

3.Structure And Function

1.Air compressor:A sliding-vane type or piston-type air compressor which is featured as small cubage,large air volume,slight pressure drop,compact structure,stable & reliable operation,etc,may provide a stable air source for spraying.

2.Hopper:Welded steel structure and rust-proof paint,the plastic cement is continuously mixed and transferred to the materrial pump from the hopper.

3.Material pump:This pump is a volump pump,suitable for conveying either solid or liquid materials. The flowing rate depends on the rotation speed.

4.Chassis:Welded steel structure and rust-proof paint,the chassis consists of an air compressor, hopper, speed variator, material pump, a pair of tight wheels, etc. A pair of steering wheel is under the chassis,which enable  flexible move or turning.

5.Spraying gun:The spraying gun is mainly used for mixing or atomizing compressed air and plastic mixtures,and evenly spraying the mixture on the plastic ground.
