CE RoHs DC12V RBG LED Strip , 14 Pixel per Meter LED Strip Light , Dmx Rgb Led Light

DMX RGB LED STRIP LIGHT,DIGITAL  LED STRIP;

MODEL NO.:BG-210B-5050-210 --IC

Waterproof DMX Digital LED strip light is flexible and easy to bend. The waterproof material is made of soft sicilon, and the strip light is IP65. There are 210pcs SMD 5060 leds for the waterproof DMX Digital LED strip lights, which can get the changing modes like waterflow, chasing, gradually changing, flashing, diffusing and other kinds of colorful performance under the control of offline controller with SD card. It is ideal for advertising signs, indoor decration and other kinds of edge lighting, etc. Many pcs of such strip lights can be connected together and the waterproof connectors are used for connection parts, which makes sure the waterproof function of the whole unit.

FEATURES

l         LED quantity: 210 LEDs RGB SMD5060

l         waterproof material: soft sicilon tube

l         Size: 5000*15*4mm

l         Working condition: 12v DC, 3.75A

l         Protection: IP66

l         3-LED can be cut, 3LED a pixel unit.

l         color changing modes like waterflow, chasing, gradually changing, flashing, diffusing and other kinds of colorful performance

l         Application: advertising signs, indoor decration and other kinds of edge lighting

l         Controlled by offline controller with SD card or DMX console

Electrical Parameters

l         Working voltage: 12VDC

l         Working current: 3.75A/Roll

l         Consumption: 45W /Roll

l         Luminance: R:180 G:600 B:144

l         Color: RGB

l         Beam angle: 120 degrees

l         Life span: 30000H

l         IP Rating: IP65

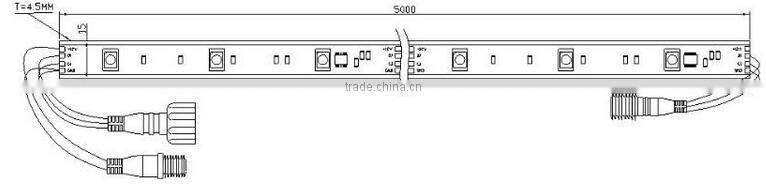

Dimensions:

Accessories and Connection

The DMX Digital LED strip can be used with the special designed DMX console and SD card offline controller which developed by our company, it can realize different kinds of color changing mode such as 7 color static changing, waterflowing, chasing, gradual changing, flashing, proliferation, and also play the AVI, SWF Multimedia files, etc. (For detailed instructions, please refer to the specifications of DMX SD card offline controller)

Connection diagram

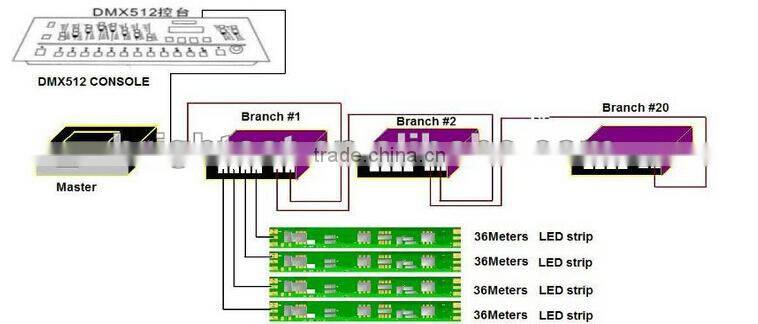

1. DMX512 signal ( light effects can be edit by a software on PC )

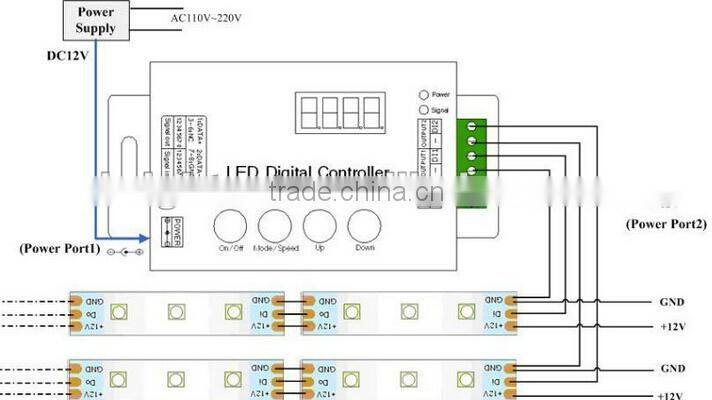

2. SPI signal ( not DMX with 132 kinds of fixing effects internal the controller)

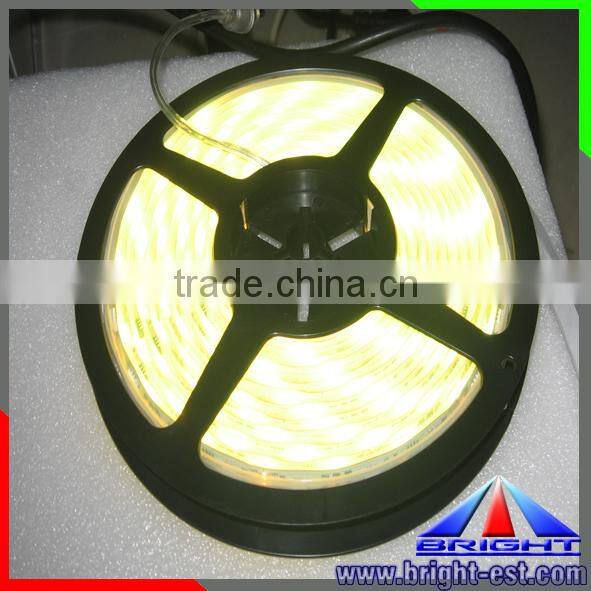

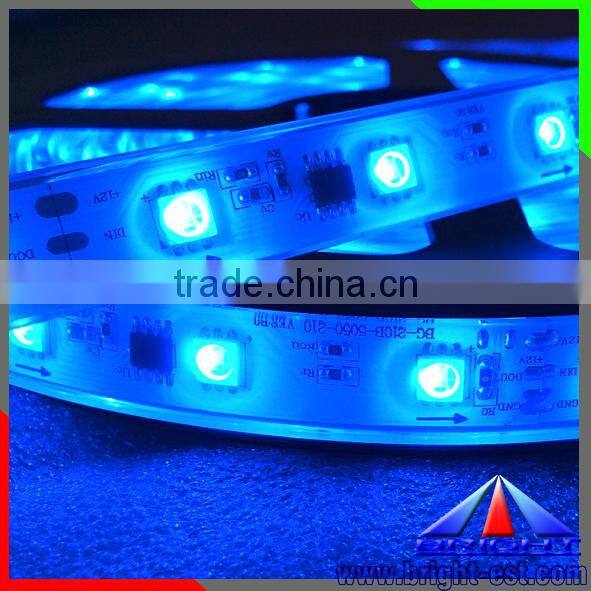

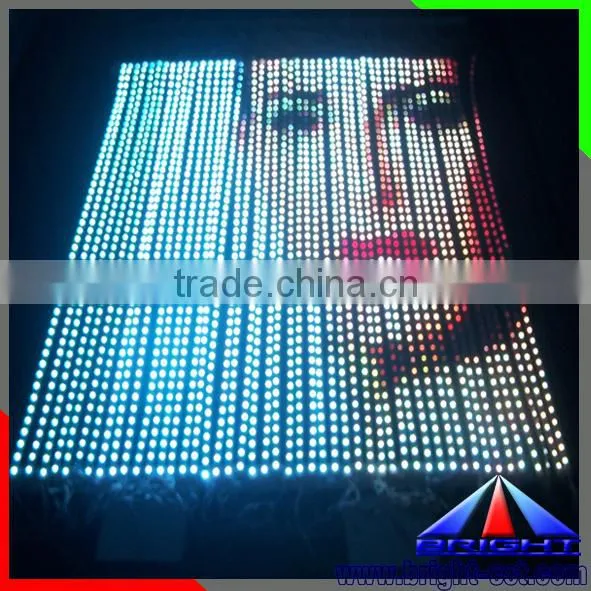

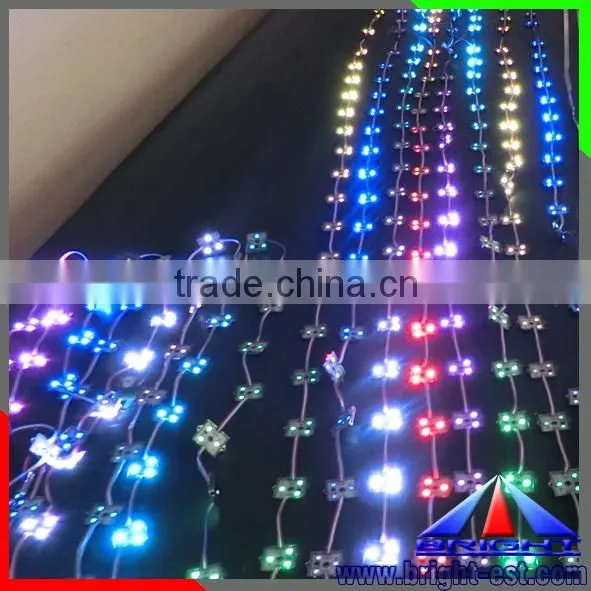

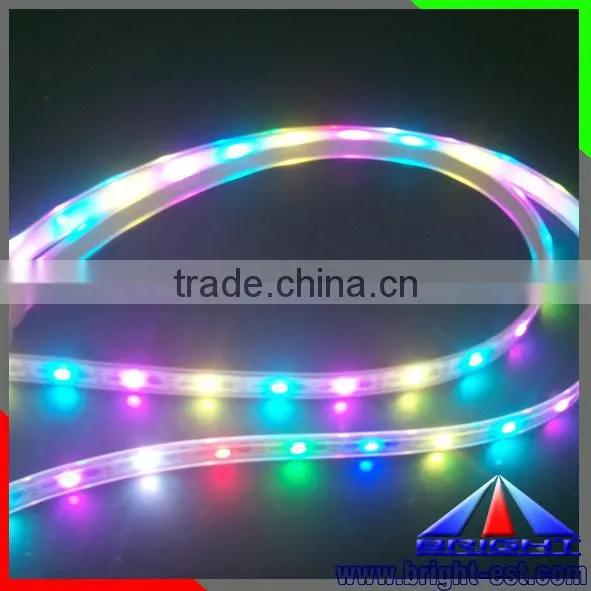

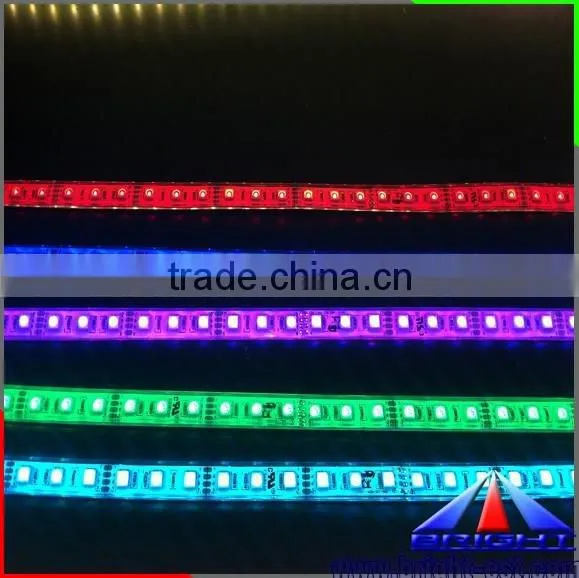

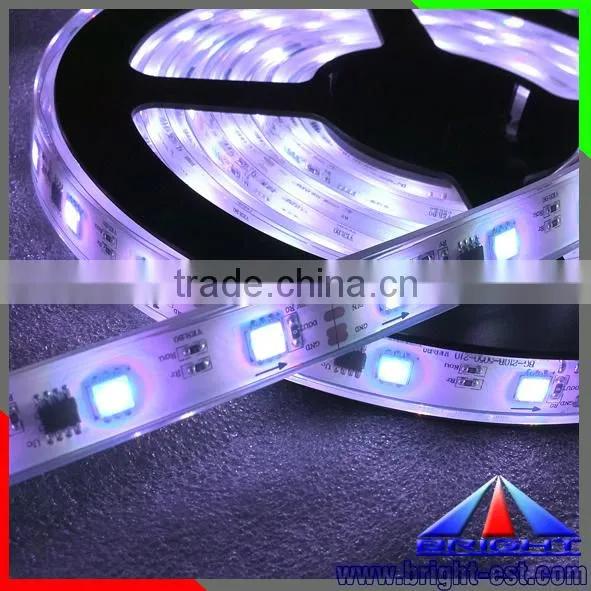

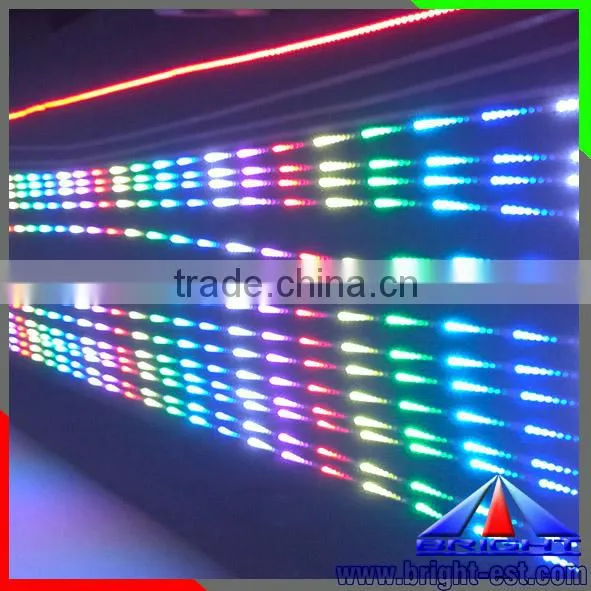

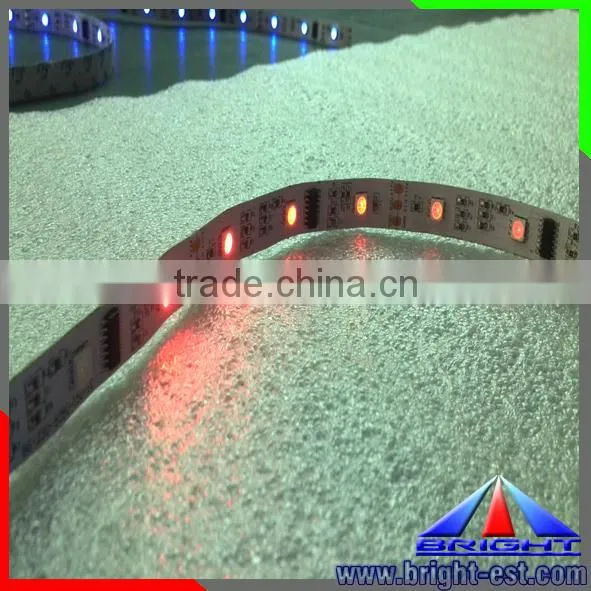

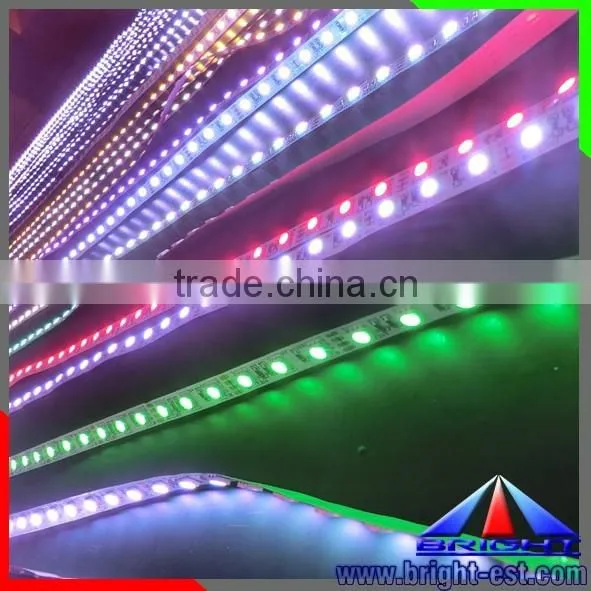

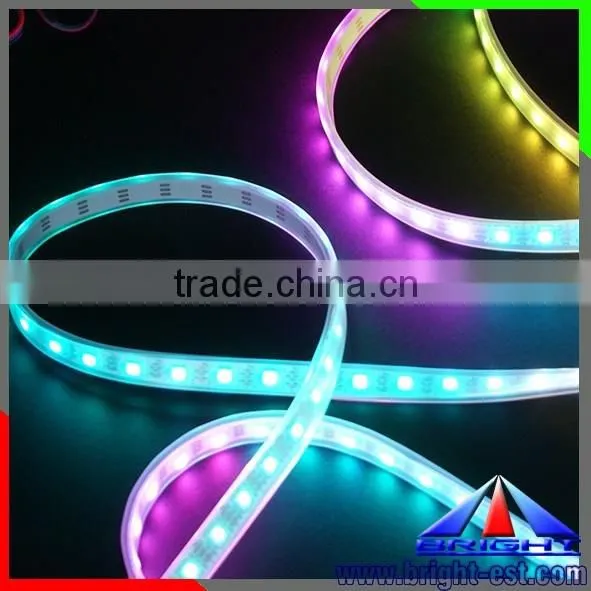

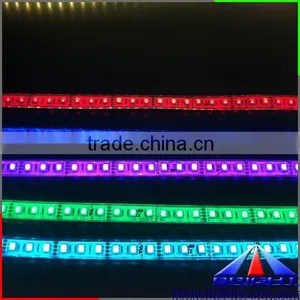

DIGITAL LED STRIP PICTURES:

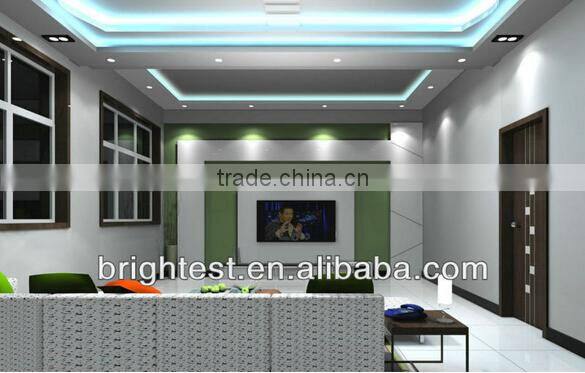

APPLICATION:

Widely used indoor and outdoor lighting, such as room, office, KTV, Bar, wall edge, sink, conceal, ceiling,

backlight for indoor lighting, and architecture, sign, advertisement, path, gallery etc for outdoor lighting

PACKING:

ABOUT US:

Wa are professional Shenzhen baesd LED light factory with reliable quality and competitive price,specialized in LED strip,LED rigid bar,LED Tube,LED Pannel light,LED down light.

Our product sell very well overseas by trading company,we believe that our direct sell will bright you more benefit,look forward to cooperate with you.
