Moving Head Searchlight1.DMX512 10CH
2.White + CMY Color System, a variety of colors can be combined
Detailed Product Description

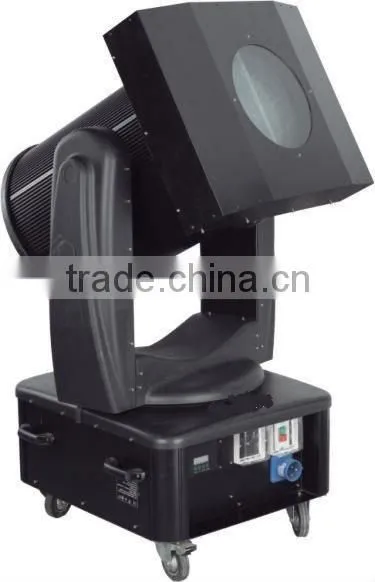

Moving Head Searchlight
Feature:
Reflective bowl specially designed to produce maximum light output.
x-axis: 360 ° with a light-sensitive error correction function, can automatically correct lighting homing
x-axis fine-tuning: 5.4 ° fine-tuning, positioning more accurate.
Y-axis: 224 °, with a photosensitive error correction function, can automatically correct lighting homing
Y-axis fine-tuning: 5.4 ° fine-tuning, positioning is more accurate,
White + CMY Color System, a variety of colors can be combined
Parallel light output, projection distance of up to 4KM, beam size of the diameter of 250mm
Body's internal overvoltage, overheating, overload, short circuit protection
Voltage: AC220V ~ 240V 50 ~ 60Hz
Power: 2000W-7000W
Bulbs XHM4000, bulb length: 420mm, light bulbs fixed bit length: 385
Lamp Ball: 60mm
Control signal: DMX-512
Within the program features a single self-propelled, internal procedures for multiple master-slave synchronization control signals reset.
X-axis Y-axis reverse.
Control channel
1 Channel: 0 ~ 127 off light bulbs, 128 ~ 240 open light bulbs, 241 ~ 255,
5 seconds after a system reset
No. 2-channel :0-127 dimming (from dark to bright) ,128-255 strobe (1-5 times per second)
3-Channel: X-axis 360-degree 4-channel: Y-axis 224 degrees
7 Channel: Blue No. 8 channels: Red
Channel 9: Yellow No. 10 Access: Soft
Applications: widely used in television stations, outdoor performances, high-rise buildings, stadiums,
Grand Hotel, open spaces and parks, amusement parks, tourist attractions and so on
Model:LS-8301
Size: 624*565*1330mm
Weight: 105Kg
