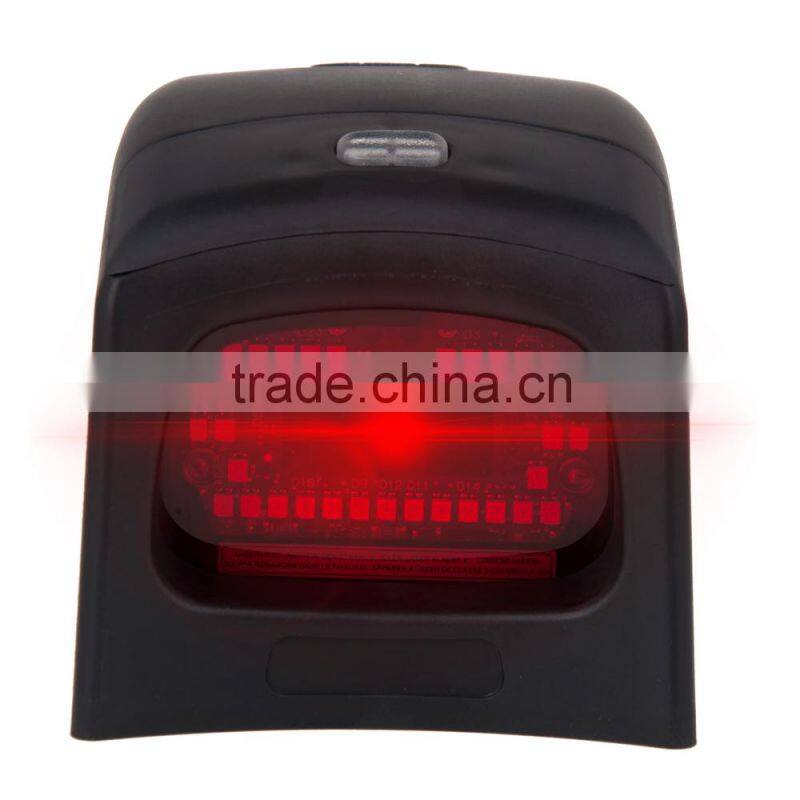

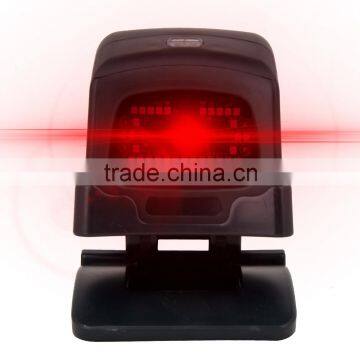

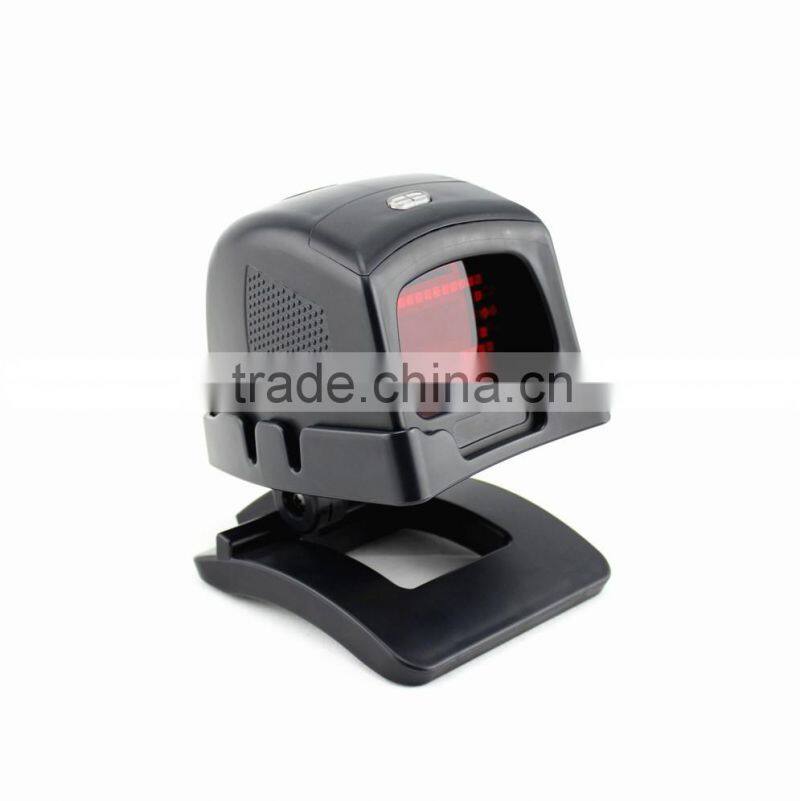

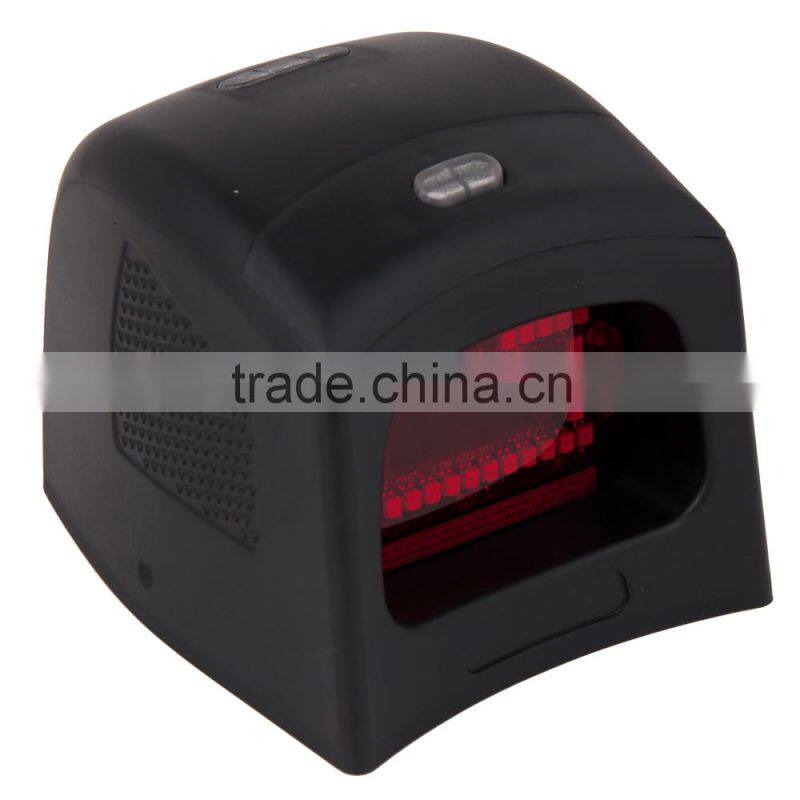

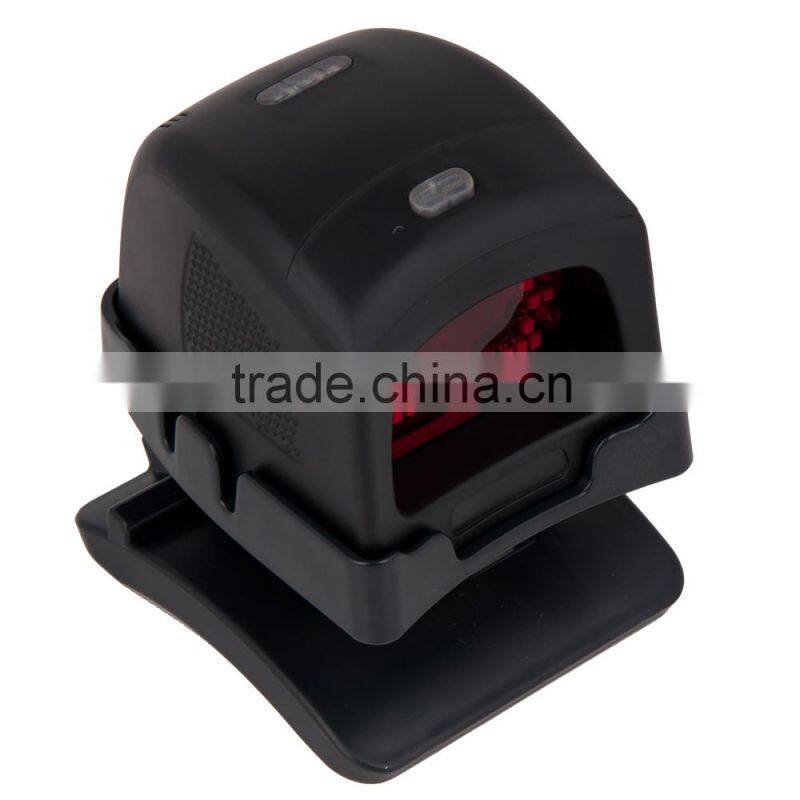

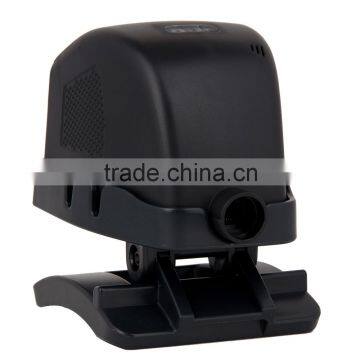

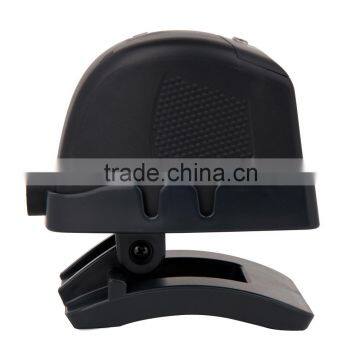

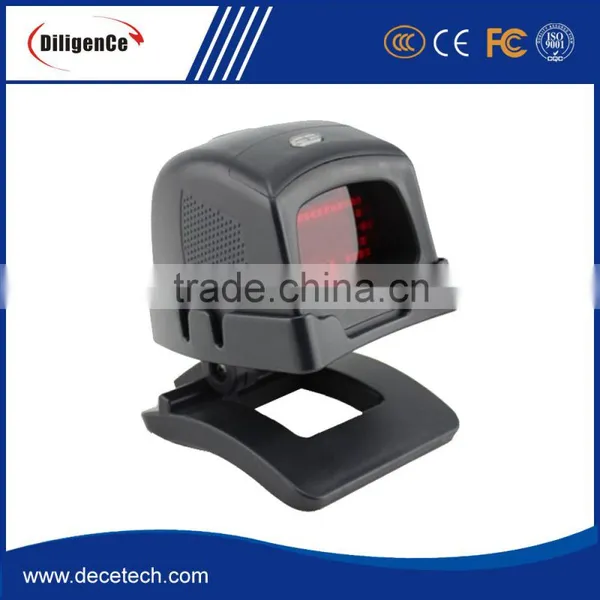

Help CenterHot Sell Laser 1d Omnidirectional Barcode Scanner
Related Products
-
Hot Sales Wireless Barcode Scanner With MemoryUS$ 1 - 99MOQ: 20 Pieces -
Good Price Android Handheld Barcode ScannerUS$ 1 - 99MOQ: 20 Pieces
-
High Quanlity Wireless Mini Barcode Scanner R30US$ 1 - 99MOQ: 20 Pieces
-
Hot Sell Laser Android Supermarket Barcode ScannerUS$ 1 - 28MOQ: 30 Pieces
-
Cheapest Supermarket Laser Barcode Scanner With China PriceUS$ 1 - 28MOQ: 20 Pieces
Brief
DC-900 provides users with increased throughput for virtually all 1D and 2D bar code reading
applications—including poorly printed or damaged bar codes—by incorporating high resolution
imaging and true contact reading into an affordable solution.It is a high performance hand-held area-imaging scanner. This desktop handsfree scanner decodes all of today’s standard bar codes including 1D, PDF417 ,
EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.It’s suitable for a wide variety of applications.Compared to the expensive imported scanners, DC-900 is definitely a cost effective
and high performance product for you!
Features
* New design concept,make operation more comfortable
* Applying Area-Imaging technology,no need accurate positioning
* Multiple dacode ability, fast to scan 1D/2D barcode and PDF417 QR code etc
* Best shape design, anti-knock and quakeproof
* Eliminates need to orientate scanner to bar code
Physical Characteristics | |
Dimensions |
183mm*79mm*111(7.2"*4.4"*3.1") |
Weight |
225g |
Voltage and Current |
5VDC±0.25V/2W(400mA @5V) |
Performance Characteristics | |
Light Source |
Visible Red LED 645nm ±7.5nm |
Scan Pattern |
Area lmage (1280*512 pixel array) |
Field of View |
Horizontal50° ;Vertical20° |
Pitch/Skew |
75°,75° |
Symbology Decode Cepability | |
1-D |
UPC/EAN and with supplemenals,code 39,code39 Full AscII, Tri-optic Code 39,Rss variants,UCC/EAN128, Code 128,Code 128 Full ASCII,Code 93,Codabar(NW1), Interleaved 2 of 5,etc. |
2-D |
MaxiCode,DataMatrix(ECC 200),PDF417 and QR Code etc. |
Print Contrast |
20% minimum reflectance difference |
Motion Tolerances |
47cm/s(18in/s)for 13 mil UPC at optimal focus |
Interfaces Supported |
USB,RS232,Keyboard Wedge, IBM 64XX(RS485) |
IMaging Characteristics | |
Image (Pixels) |
0.35 Megapixel 752 pixels H*480 pixels V |
Graphics Format Support |
Images can be exported as Bitmap,Jpeg,and Tiff |
Image Transfer Speed |
USB 1.1;Up to 12 Megabits/secondRS232; Up to 115 kb baud rate |
Image Transfer Time |
Typical USB application is0.2 seconds with a compressed Jpeg of 100 k |
User Environment | |
Operating Temperature |
0°C to 44°C(32°F to 104°F |
Storage Temperature |
-40°C to 60°C (-40°F to 140°F |
Humidity |
0% to 95% relative humidity,non-condensing |
Drop/Shock Specifications |
Designed to withstand 1.5m(5')drops |
Light levels |
100,000 Lux(9,290 foot-candles) |
