Specifications
9*1W Inground lights1. High Power LED 1W
2.AC100-240V,DC24V,DC12V
3.DMX(Dimmable single)
4.Color:RGB, Single color
9W Outdoor LED Underground Lights
Specifications :
1. Wattage: 9W
2. Water-proof grade: IP67
3. Material: stainless steel + aluminum + toughened glass cover
4. Color: R/Y/B/G/W/WW/colorful
5. Projecting distance: ≤10M
6. Power for single LED: 1W/350mA, 3W/700mA
7. Voltage: 12V-240V
8. Beam angle: 5°/15°/25°/45°/60°/90°/120
19. Working environment temperature: -20°C~50°C
10. Color effects: single color projecting, casting, flowing 256 brightness and colorful
11. Control method: built-in constant current driver
12. Working lifetime: 50,000hs
13.LED chip: Epileds, Epistar, Bridgelux
14.Lumen: 90lm/W
15.Warranty: two years
Product feature:
1. Aluminum alloy lamp body; polyester spraying treatment on surface. Shockproof and corrosion resistant.
2. Stainless steel cover. Toughened glass, able to stand very great pressure.
3. Lamp panel and bulb are fixed with transparent silicon resin. Excellent waterproof and moisture-proof function. Protection level: IP68.
Technical parameters:
- LED chip: Taiwan Epistar, US CREE
- Single LED bulb power: 1W
- LED quantity: 9Pcs
- System power: 12W
- Lens beam angle: 15°, 25°, 40°, 60°
- LED color: Red, yellow, blue, white, warm white, RGB
- Input voltage: DC24V/AC220V 50-60Hz
- Control mode: DMX512 control
- LED drive mode: 350mA constant current drive
- Protection level: IP65
- Lamp material: Aluminum alloy lamp body; polyester spraying treatment on surface.
- Environment temperature: -20°C--+40°C
- Color effect: single color, full color, flickering, chasing, water-flow, 256 grey
- Lifespan: 30000 hours
- N.W.: 2KG
Where to use:
- Suitable for the landscape lighting of park, plaza, yard, lawn, mall, stone step and so on.
Lamp material:
- Aluminum alloy lamp body
- Polyester spraying treatment on surface
- Transparent toughened glass
- Stainless steel cover
Structure and size diagram:
System connection diagram:

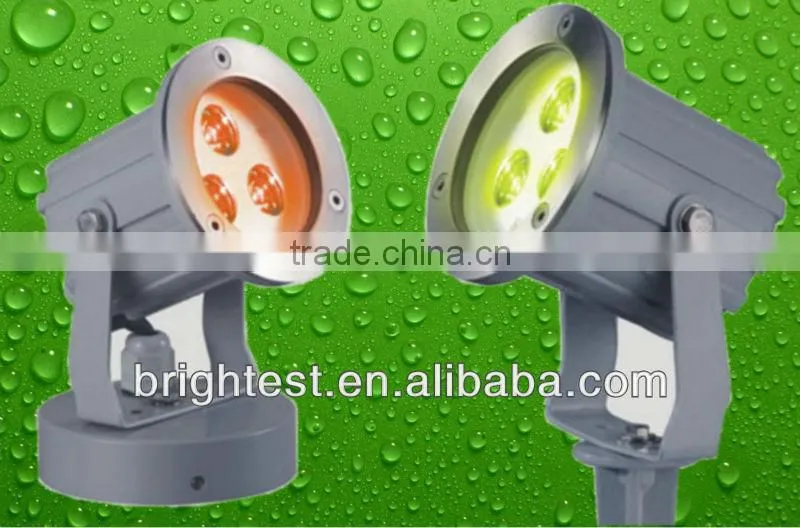

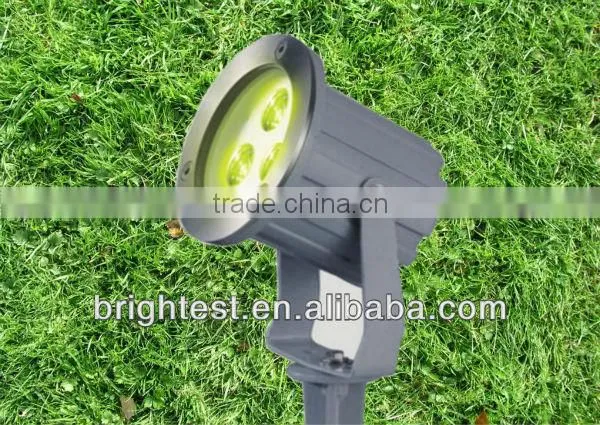

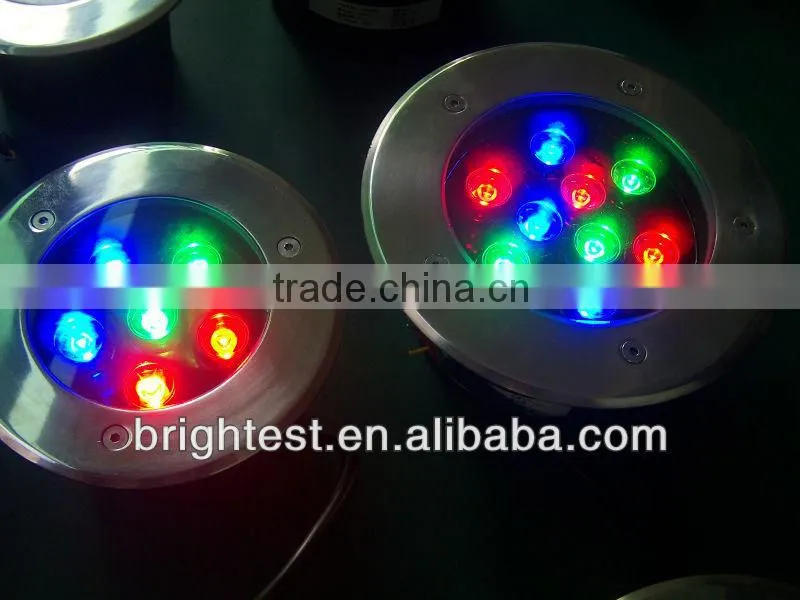

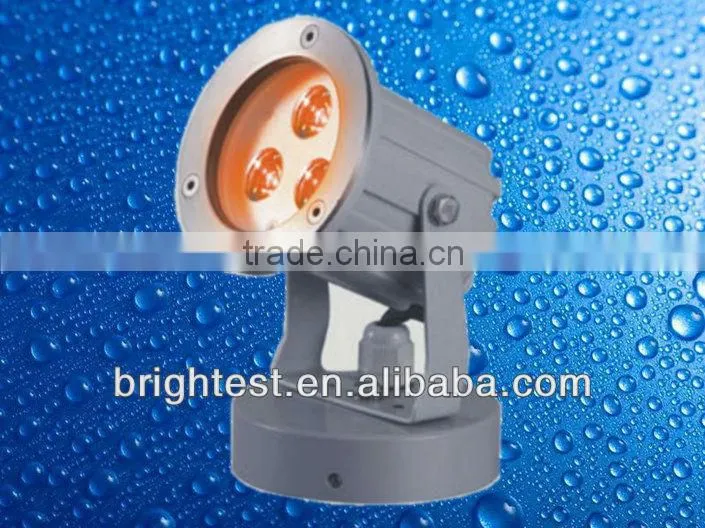

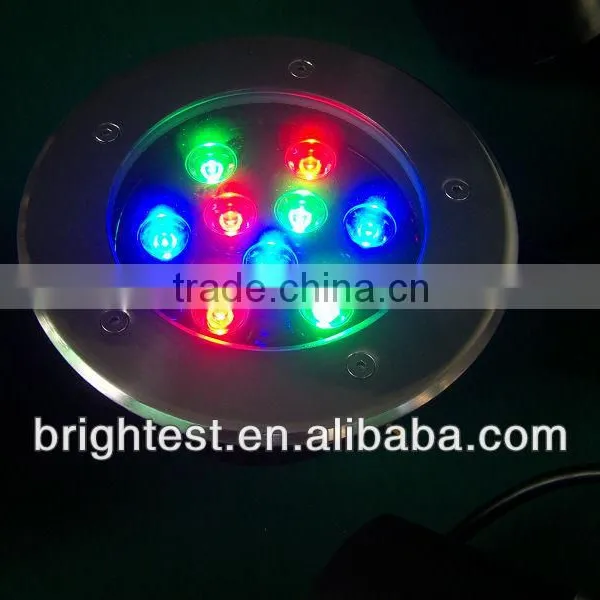

Other products pictures:
