300w Par56 Led Replacement for Swimming Pool

300w Par56 Led Replacement for Swimming Pool photo-1
US$ 40 - 50 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
LED
Warranty(Year):
2
Input Voltage(V):
AC/DC12V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source LED
Warranty(Year) 2
Input Voltage(V) AC/DC12V
Lamp Power(W) 19
Lamp Luminous Flux(lm) 1000
Lamp Luminous Efficiency(lm/w) 75
Color Temperature(CCT) Other, RGB
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 30000
Lamp Body Material Aluminum Alloy
Certification CE
Place of Origin Guangdong, China
Brand Name BRIGHT
Model Number BG-2305-15W

Specifications

300w par56 led replacement
1). high power LED, SMD5050 LED
2). aa177*108mm.
3). RGB color, RGB control or DMX
4). CE&ROHS

Advantages of PAR56:

1.New private mould & patent
2.good waterproof & dustproof Par56 Led swimming pool light ip68
3.good anti-corrosion performance and could be used in sea or salted-water condition
4.wide options:15w,18w, 20w, 21w, 24w, 25w, 30w,35w, SMD5050,DIP F5,18*1W,18*1W(3 in 1), 12*3W, 18*3W
Chip on Board integreted for 21W, 25W, 30W,35W for customers' options.
5.High brightness & Lumen: 25w 2000Lm and 30w 2600Lm,35w 3200Lm
6.Remote synchronization function

Features:

  1. Sole & Patented design
  2. Size: 178(diameter) * 108(height) mm

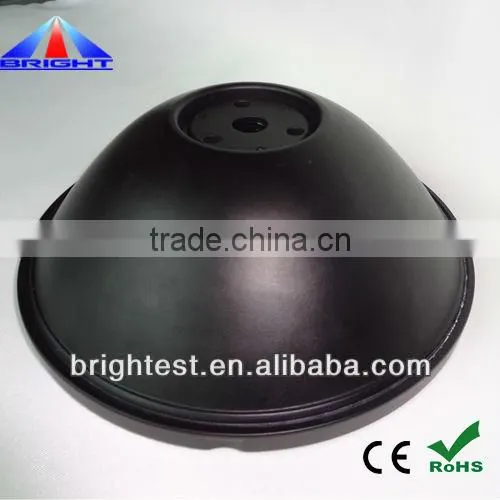

  3. 6063 die-casting aluminium cup which ensure lamp cup/body unbreakable & good heat difussion, and make sure of less lumens decline.
  4. Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
  5. IP68 with lamp housing
  6. Constant driver to make sure LED light working stably, avoid any flashing and noisy
  7. Voltage: DC12V,       Frequency: 50/60HZ
  8. High quality and brightness LED source
  9. Projection distance: 10-20 meter
  10. Color: RGB, 15 kinds of color changing method.
  11. 4 kinds of RGB control mode: built-in(automatical control), wire/line control, remote and switch control
  12. Beam angle: DIP-25°or 120°, SMD5050-120°, high power-25°or 30°or 45°or 60°
  13. Life span 50000 hours
  14. Overcurrent protection

Applications: Swimming pool, park, water-fall, fountain spring, gardon.

Main parameters:



Specification

Parameter

Item No.

BG-PAR56-03

BG-PAR56-04

BG-PAR56-05

BG-PAR56-06

LED Qty.

105pcs  SMD5050

252 pcs  DIP F5

315 pcs  DIP F5

18*1W/3W

Working Voltage

AC/DC 12V

AC/DC 12V

AC/DC 12V

AC/DC 12V

Voltage Frequency      50-60Hz       50-60Hz       50-60Hz        50-60Hz

Power

19±1w(white)
16±1w (rgb)

15±1w(white)
14±1w (rgb)

19±1w(white)
18±1w (rgb)

20±1w(white)
19±1w (rgb)

Luminous flux

ww/cw: 1050lm
pw:1200lm
RGB:200-800lm

ww/cw:900lm
pw:1000lm
RGB:200-800lm

ww/cw: 1100lm
pw:1250lm
 RGB:200-800lm

ww/cw:1100lm   pw:1300lm
RGB:200-800lm

Working temperature

-20-60°C

-20-60°C

-20-60°C

-20-60°C

Color temperature

p.w.-6000~7000k
w.w.:3000-3500k
c.w.-8000~12000

p.w.-6000~7000k
w.w.:3000-3500k
c.w.-8000~12000

p.w.-6000~7000k
w.w.:3000-3500k
c.w.-8000~1200k

p.w.-6000~7000k
w.w.:3000-3500k
c.w.-8000~1200k

  Color temperature   (RGB)

R/G/B:621 -625/ 518 -520/ 464 -467 K/nm

R/G/B:621 -625/ 518 -520/ 464 -467 K/nm

R/G/B:621 -625/ 518 -520/ 464 -467 K/nm

R/G/B:621 -625/ 518 -520/ 464 -467 K/nm

Dimension

177×108 mm

177×108 mm

177×108 mm

177×108 mm

Storage Temperature

-10-60°C

-10-60°C

-10-60°C

-10-60°C

Base

G53/wire

G53/wire

G53/wire

G53/wir

IP rate(w/housing)

IP68

IP68

IP68

IP68

Control mode

RGB/DMX

RGB/DMX

          RGB/DMX       RGB/DMX
