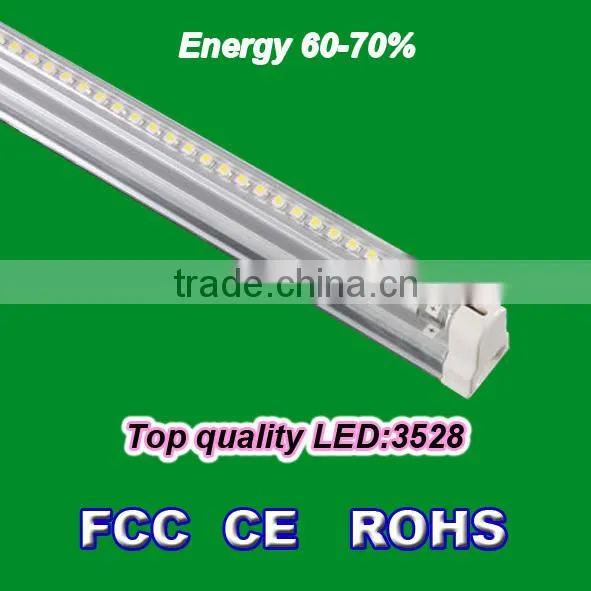

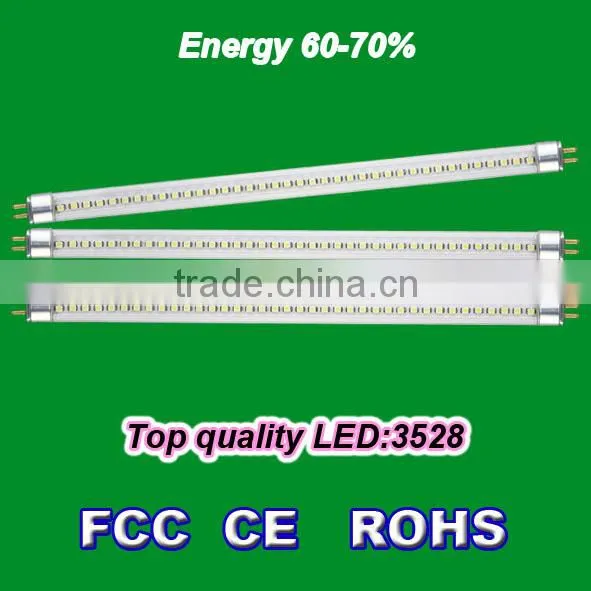

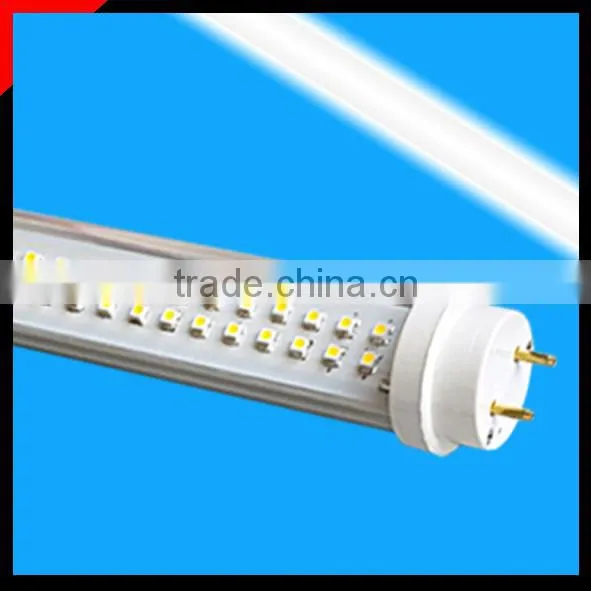

Help CenterHigh Lumen 500 Pics SMD3528 Japanese Led Light Tube 22w t8 With TUV.SAA Certification
Related Products
-
95-105LM/W Single/Double-ended Power Supply 2014 Hot Sale Japanese Led Light Tube 18w t8US$ 18.55 - 20.65MOQ: 30 Pieces -
2014 New Design!!! E27/E14/B22 8 Watt Led Corn Light,3000-7000K Led Bulb LightUS$ 1 - 5MOQ: 10 Pieces
-
New Design!!!E27 8W Led Corn Light SMD2835 With CE RoHs Approved .US$ 1 - 5MOQ: 10 Pieces
-
Residential 8-16W SMD28335 LED Corn Lighting and E27 Street Led Corn LightUS$ 1 - 5MOQ: 10 Pieces
-
E27 Corn Led Light, E27 Led Bulb Light 3000k-7000k , CRI>80 8w LED Corn Light E27US$ 1 - 5MOQ: 10 Pieces
Specifications
T8 led tubes1.Voltage: 85~265VAC 50-60HZ
2.Power Factor:>0.95
3.3 Years Waranty 50000hrs
4.LED quantity(PC):500 PCS
LED tube
FEATURES:
Shell: Standard T8 aluminum alloy shell, with transparent PC, strip PC and frosted milky-colored PC to choose;
Light Source: 3528 white color LED is made of high bright chip produced in Taiwan, packaged in low attenuation technique. Luminous flux of single LED reaches 6.5-7.1 lm, no attenuation after 3000 hour test, comply with LED lumination standard.
Power Supply: Independently developed constant current device, with over-current, over-voltage, over-heat and surge protection.
Certificate: CE, RoHS, PCC, PSE, CSA
Installation:
1.Open the package, examine the products carefully to see if there is any damage, if there is damage, do not attempt to use it;
2.Input voltage must be in line with the request;
3.Remove the ballast;
4.Before install the tube, make sure to switch off the power;
5.Take off the label from the tube;
6.Install the tube in accordance with the above CIRCUIT DIAGRAM, make sure the live wire enters switch, zero lines enter lamp holder;
7.Do not use sharp tools in case scratch the tube;
8.Lights installed;
9.LED tube can work 8 hours everyday. Do not use it more than 12 hours per day;
10.If you have any question, please contact our customer services.
Notes:
Examine the product carefully after open the package. If the product were damaged in transportation, please notify us immediately; do not use the damaged lights.
This LED tube has two voltage input mode, one is AC220-AC250V, and the other is AC100-AC120V. Firstly, confirm the suitable voltage. Then remove the ballast because LED tube does not need it, otherwise it will cause short circuit. Next, connect the pins of one side with live wire, and the other side with zero line. Do not connect the live wire and zero line with the pins in one side, otherwise it will cause short circuit.
SCOPE OF APPLICATION:
T8 series LED tube is applicable to interior illumination in various occasions, such as assembly line, workshop, office, home, supermarket, school, hospital, parking lot and so on.
It also can be used in the lighting box and illumination for the places where is not easy to replace or maintain.
Quick answer: Your questions to our products, we will reply immediately, even can’t answer at once,
we will explain the current situation clearly and provide the exact date of solution
Always report: Customers will be keep informed on every progress of their order’s production,
knowing order’s condition with time on schedule
Delivery notification: Offer customers detailed date, bill no and ETA after delivery, and remind customers
once the goods are going to arrive
If you have any question, please don't hesitate to contact us
Packaging & delivery:
1.Packaging :Neutral Package or according to customers' request
2.Delivery Time: 5-7days
Express Delivery:
Payment Terms:
1.T/T (In advance)
2.Paypal
3.Western Union
