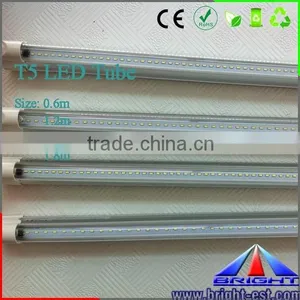

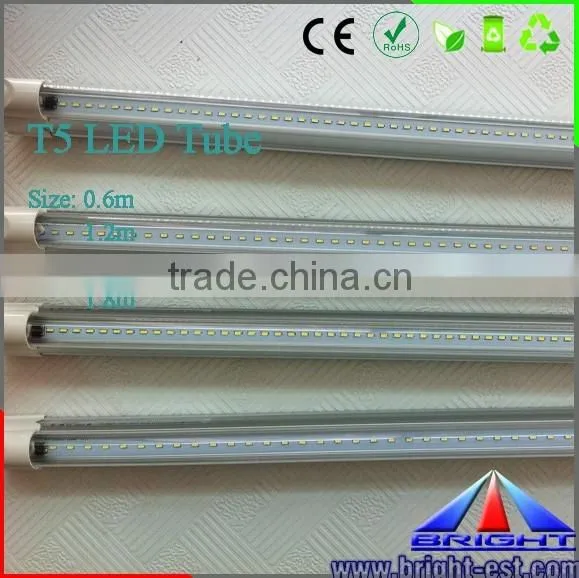

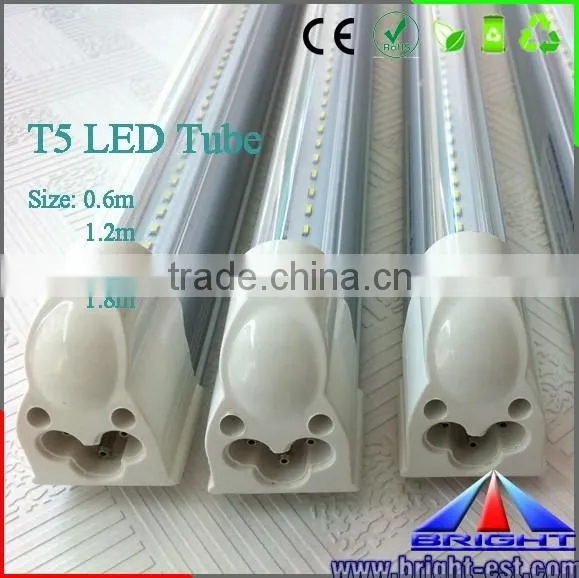

Tube5 LED Tube 10w T5 LED Tube 0.9m Fluorescent Tube for Suppermarket

Specifications

   LED TUBE T5  10W FOR INDOOR LIGHTING

Features of  LED tube T5

1.Shell: Standard T5 aluminum alloy shell, with transparent PC, strip PC and frosted milky-colored PC to choose;

2.Light Source: 3528 white color LED is made of high bright chip produced in Taiwan, packaged in low attenuation technique.

3. Luminous flux:Luminous flux of single LED reaches 6.5-7.1 lm, no attenuation after 3000 hour test,

comply with LED lumination standard.

4.Power Supply: Independently developed constant current device, with over-current, over-voltage, over-heat and surge protection.

5.Certificate: CE, RoHS, PCC, PSE, CSA

Specifications of LED tube T5:

• Power Consumption : 10W
• Fitting : T5
• Beam Angle : 180 degrees
• Input Power : AC85V - AC265V
• Power Factor : >95%
• Luminous Flux : 850-1000LM
• Color Temperature: 2700-6500K
• CE & RoHS certified : Yes
• Life Expectancy : 45000-50000 hours
• 70%~80% energy-saving
•  Solid-state, high shock / vibration resistant
•  No RF interference
•  Low power consumption, high intensity
• Long time working, 12 hours/day is perfect, produce low heat
• No mercury or other hazardous materials
• Super bright LED light source with stable quality

Installment of  LED tube T5:

1. According to the picture representation, install the match length bracket as the tube from the tube vertical direction.
2. Intervene the matching power wire to the one side (no positive and negative difference) of the bracket base as the picture shows, make the other side hang, then, connecting AC220V power and would be lighted.
3. The product could not tear down the light tube only or install other brackets to lighten, it must match our company’s bracket to use.
4. This product can’t replace the conventional T5 Fluorescent Tube.
5. This product can be used by series after put the two tubes in the bracket. At most 50 pieces in series.
6. Don’t separate this product, it’s not in the guarantee .If any error state appears, please contact with us.

Notes of T5  LED tube T5:

Examine the product carefully after open the package. If the product were damaged in transportation, please notify us immediately; do not use the damaged lights.

This LED tube has two voltage input mode, one is AC220-AC250V, and the other is AC100-AC120V. Firstly, confirm the suitable voltage. Then remove the ballast because LED tube does not need it, otherwise it will cause short circuit. Next, connect the pins of one side with live wire, and the other side with zero line. Do not connect the live wire and zero line with the pins in one side, otherwise it will cause short circuit.

Aplications of  LED tube T5:

T5 series LED tube is applicable to interior illumination in various occasions:

                  Such as assembly line, workshop, office, home, supermarket, school, hospital, parking lot and so on.

It also can be used in the lighting box and illumination for the places where is not easy to replace or maintain.

Application:

1. Building (office, architecture or home) decoration ;

2. Library,Laboratory,Factory;

3. Emergency hallway lighting

4. Shopping mall, restaurant, hotel,KTV;

5. Meeting room ,Living room

LED tube T5
