1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer

Shenzhen Bright Technology Industrial Ltd.
1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer thumbnail-1
1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer thumbnail-2
1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer thumbnail-3

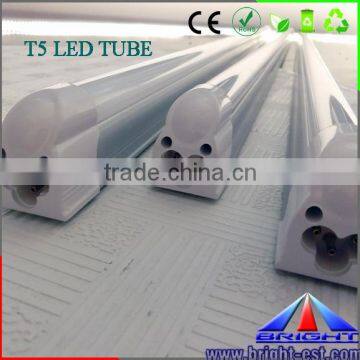

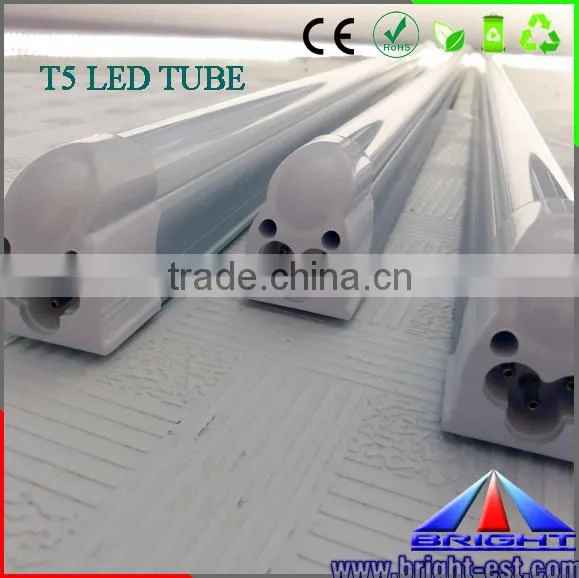

1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer photo-1
1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer photo-2
1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer photo-3
US$ 1 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835
Warranty(Years) 3
Input Voltage(V) AC100-240V
Lamp Power(W) 20
Lamp Luminous Flux(lm) 1700-2000lm
Lamp Luminous Efficiency(lm/w) 85
Color Temperature(CCT) Other, 2700-6500k
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating Other, IP50
Certification CE, EMC, FCC, LVD
Place of Origin Guangdong, China
Brand Name Bright
Model Number Other, BG-405-1500-20W T5 LED Tube

Specifications

LED tube T5
1.Lamp Material:aluminum and PC shell
2.Power Factor:>0.90
3.2 Years Waranty
4.LED quantity(PC):120 PCS

Features of  LED tube T5

1.Shell: Standard T5 aluminum alloy shell, with transparent PC, strip PC and frosted milky-colored PC to choose;

2.Light Source: 2835 white color LED is made of high bright chip produced in Taiwan, packaged in low attenuation technique.

3. Luminous flux:Luminous flux of single LED reaches 24-26 lm, no attenuation after 3000 hour test,

comply with LED lumination standard.

4.Power Supply: Independently developed constant current device, with over-current, over-voltage, over-heat and surge protection.

5.Certificate: CE, RoHS, PCC, PSE, CSA

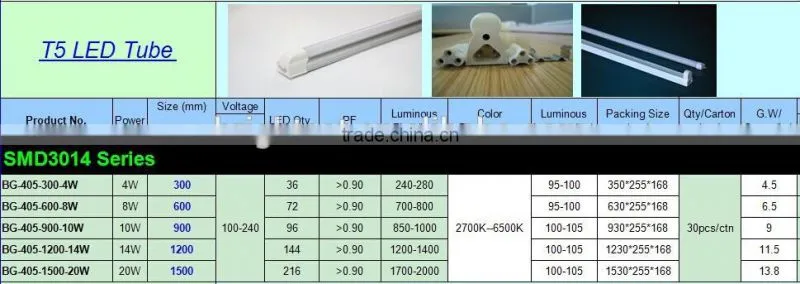

Specifications of LED tube T5:

  1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer



Installment of  LED tube T5:

1. According to the picture representation, install the match length bracket as the tube from the tube vertical direction.
2. Intervene the matching power wire to the one side (no positive and negative difference) of the bracket base as the picture shows, make the other side hang, then, connecting AC220V power and would be lighted.
3. The product could not tear down the light tube only or install other brackets to lighten, it must match our company’s bracket to use.
4. This product can’t replace the conventional T5 Fluorescent Tube.
5. This product can be used by series after put the two tubes in the bracket. At most 50 pieces in series.
6. Don’t separate this product, it’s not in the guarantee .If any error state appears, please contact with us.



Notes of T5  LED tube T5:

Examine the product carefully after open the package. If the product were damaged in transportation, please notify us immediately; do not use the damaged lights.

This LED tube has two voltage input mode, one is AC220-AC250V, and the other is AC100-AC120V. Firstly, confirm the suitable voltage. Then remove the ballast because LED tube does not need it, otherwise it will cause short circuit. Next, connect the pins of one side with live wire, and the other side with zero line. Do not connect the live wire and zero line with the pins in one side, otherwise it will cause short circuit.



Aplications of  LED tube T5:

1. Building (office, architecture or home) decoration ;

2. Library,Laboratory,Factory;

3. Emergency hallway lighting

4. Shopping mall, restaurant, hotel,KTV;

5. Meeting room ,Living room

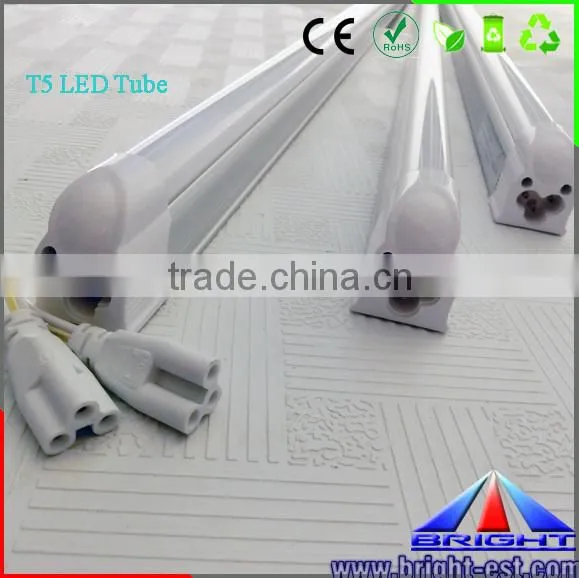

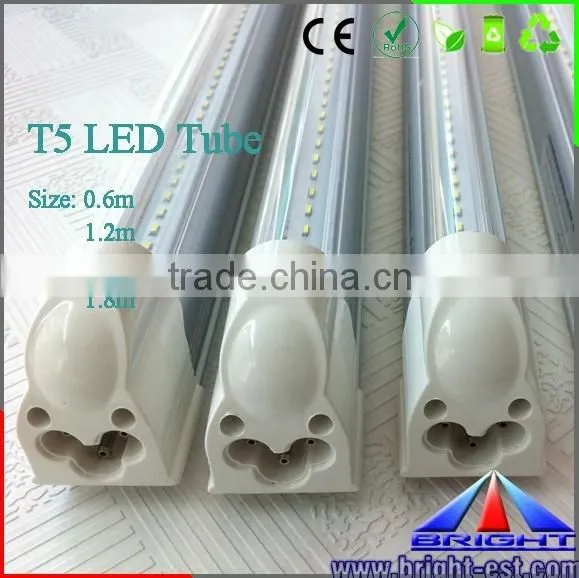

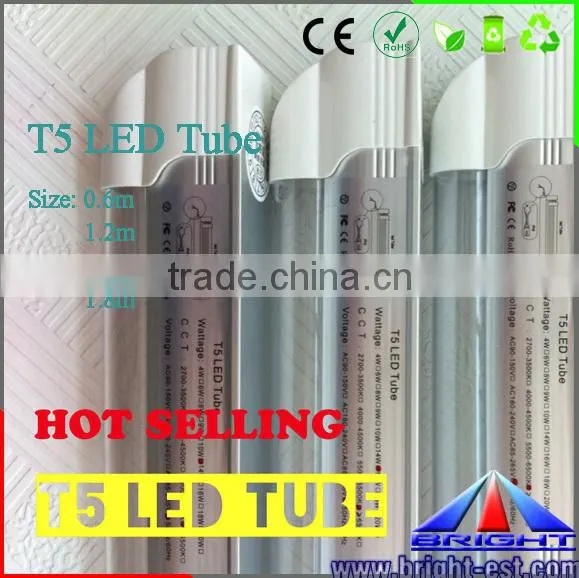

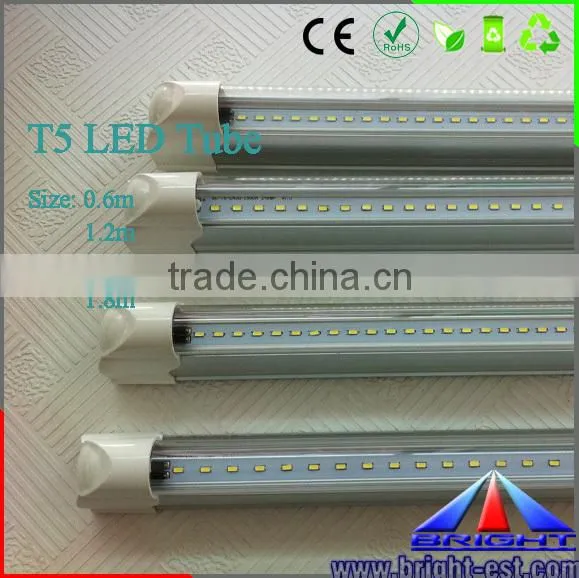

Detailed Images

 1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer









Product Uses

1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer



1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer





Company Information

1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer





Our Services

1.Your inquiry related to our products or prices will be replied within 24 hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.

4.Distributorship is offered for your unique design and some of our current models.

5.Protection of your sales area, ideas of design and all your private information



Why choose us



Advanced machinery, well trained workers.

5 years experience in LED lighting industry.

Unique designed, good quality, competitive price.

Full range of indoor and outdoor LED lighting solution.

Zero improper after-sales service if any quality issue happened



If there any questions, pls don't hesitate to contact me!!!







Express Delivery

1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer

Payment Terms:

1.T/T (in advance)

2.Paypal

3.Western Union

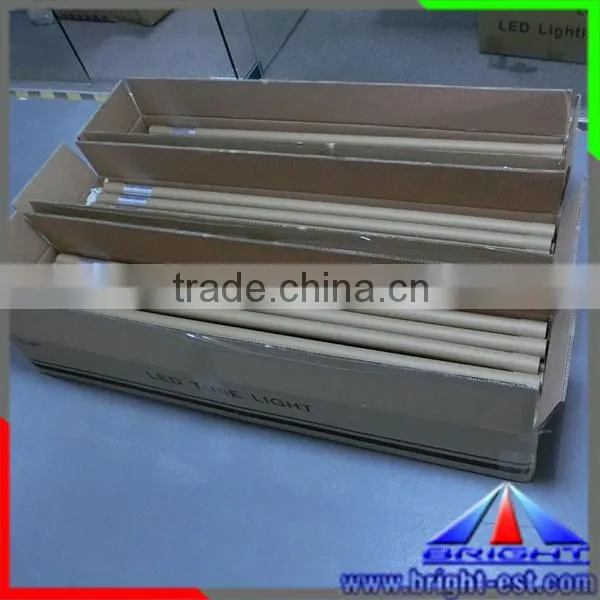

Package infomation

Carton Size:1270*260*220(30pcs/Ctn)

1.5M T5 Fluorescent LED Tube Light, 2835 T5 LED Replacement Fluorescent Tubes, 10W LED T5 Tube Light Manufacturer
