Home > Transportation > Train & Railway > Locomotive > CJY7/6,7,9G Trolley Locomotive for Underground Mine

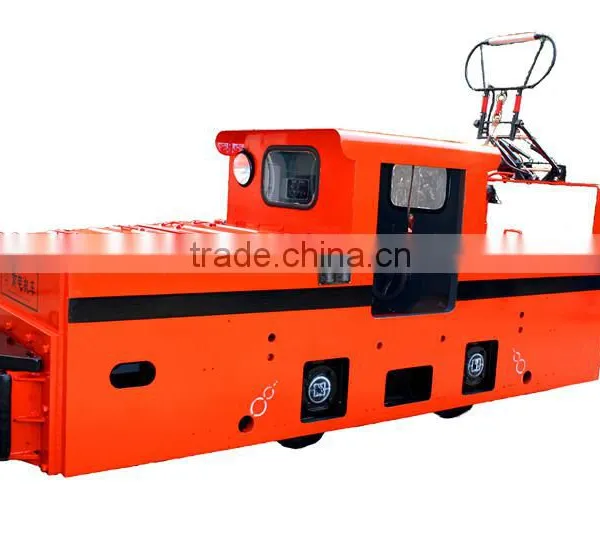

CJY7/6,7,9G Trolley Locomotive for Underground Mine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel Type:
Electric
Horsepower:
13.05-15.09KN
Dimensions (L x W x H) (mm):
4470*1354*1550mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CJY10/6,7,9G Overhead Line Electric Locomotive for Underground MineNegotiableMOQ: 1 Set -
CJY3/6,7,9G Overhead Line Electric Locomotive for Underground Mine,cheap Price LocomotiveNegotiableMOQ: 1 Set
-
CJY6/6,7,9G Overhead Line Electric Locomotive for Coal Mine,China Manufacture LocomotiveNegotiableMOQ: 1 Set
-
CJY3/6,7,9G Overhead Line Electric Locomotive for Underground Mine,China Manufacture LocomotiveNegotiableMOQ: 1 Set
-
CJY20/7,9G Overhead Line Electric Locomotive for Large Mine,China Manufacture LocomotiveNegotiableMOQ: 1 Set
Fuel Type
Electric
Horsepower
13.05-15.09KN
Dimensions (L x W x H) (mm)
4470*1354*1550mm
Speed (km/h)
11 km/h
Place of Origin
Hunan, China
Brand Name
NADI
Model Number
CJY7/6,7,9G
Specifications
1. have two types: single cab and middle cab2.short body, good eyesight, fast speed
3. long life operation
Mode : CJY7/6,7,9G
Trolley locomotive
Technical Performance
dimensions(LxWxH)(mm) : L :4470mm,4456mm W :1054mm, 1354mm H: 1550mm
Adhesive weight |
7T |
|
Voltage of battery |
250V |
550V |
Horsepower (traction motor) |
2*21kw, 2*24kw |
|
Hourly Traction |
13.05/15.09KN |
|
Max Traction |
17.2KN |
|
Speed (hourly) |
11km/h |
|
Wheelbase |
1100mm |
|
Track gauge |
600,762,900mm |
|
Min curve radius |
7m |
|
traction height |
320mm |
430mm |
wheel diameter |
680mm |
|
Speed control mode |
Resistance, chopper control |
|
Braking Mode |
Mechanical brake |
|
