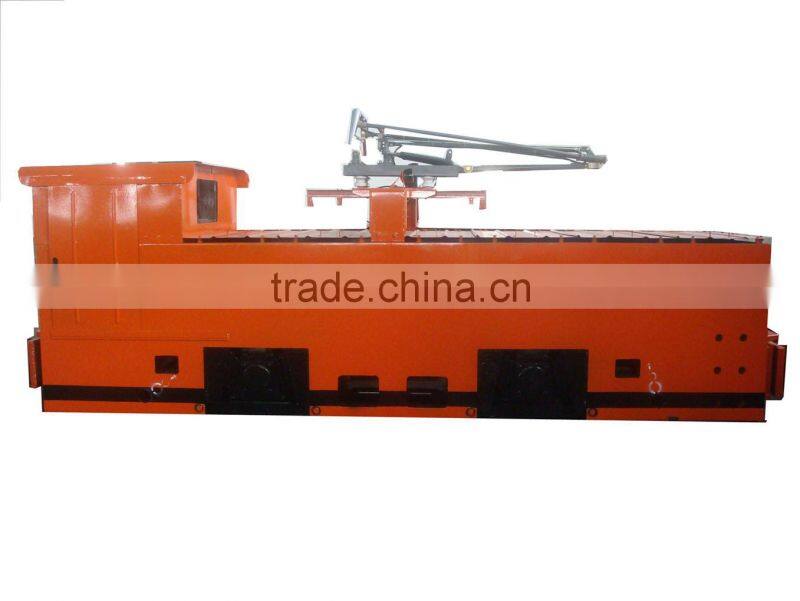

Overhead Line Electric Locomotive for Large Mine,China Manufacture ELECTRIC Locomotive
Negotiable
/ Set
1 Set(Min. Order)
- shenzhen shanghai qingdao
- T/T Credit Card
You May Like
-
Electric Locomotive, LOCOMOTIVE FOR MINE
-
Gold Mine Trolley Locomotive, Made in China Trolley Locomotive, 2016 Bestsale Locomotive
-
Trolley Electric Locomotive,locomotive for Mine, Good Quality Locomotive, Made in China Locomotive
-
1.5T Trolley Locomotive, Xiangtan Manufacture Trolley Locomotive, 2016 Bestsale Locomotive
-
Overhead Line Electric Locomotive, Made in China Locomotive
-
Large Mining Trolley Locomotive, Hotsale Trolly Locomotive for Underground Mine
Product Details
| Fuel Type | Electric | Horsepower | 39.23KN | |
| Dimensions (L x W x H) (mm) | 7900*1750*1900 | Speed (km/h) | 15 | |
| Place of Origin | Hunan, China | Brand Name | NADI | |
| Model Number | CJY20/7,9G |
Product Description
Mode : CJY20/7,9G
Trolley locomotive
Technical Performance
Adhesive weight | 20T | |
Voltage of battery | 550V | |
Horsepower×Set | 85×2kw,78x2kw | |
Hourly Traction | 39.23KN | |
Max Traction | 49KN | |
Speed (hourly) | 15 km/h | |
Wheelbase | 2500mm | |
Track gauge | 762,900mm | |
Min curve radius | 30m | |
traction height | 320mm | 430mm |
wheel diameter | 820mm | |
Speed control mode | Resistance,IGBT control | |
Braking Mode | Air Mechanical brake | |
Driving method | Second gear | |
Dimensions(LxWxH)(mm) : L :7900mm W :1750mm, H: 1900mm,
