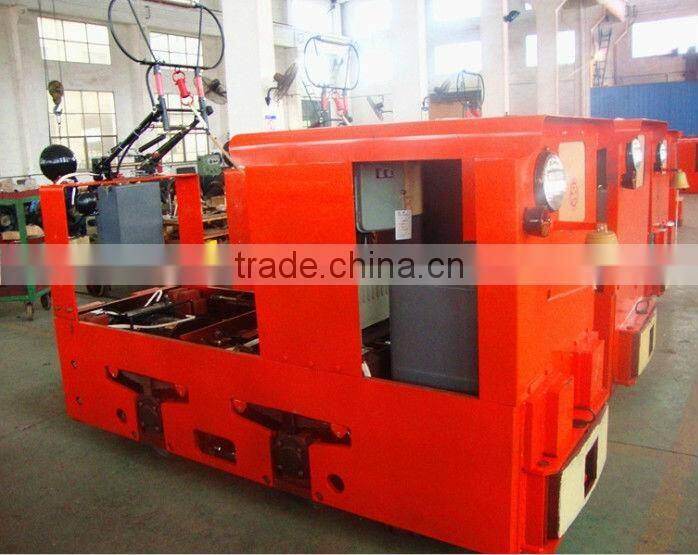

CJY3/6,7,9G Overhead Line Style Electric Locomotive for Underground Mine
Negotiable
/ Set
1 Set(Min. Order)
- Chinese port
- T/T
You May Like
-
CJY14 Overhead Line Mine Locomotive for Larger Underground Mine
-
Overhead Line Mine Locomotive for Larger Underground Mine, Made in China Mining Locomotive, 2016 Bestsale Mining Locomotive
-
7 Tons Overhead Line Electric Locomotive for Underground Mine, China Manufacture and Cheap Price Electric Locomotive
-
2016 Hotsale 7T Overhead Line Electric Locomotive , China Manufacturer Locomotive,the Cheapest Electric Locomotive
-
14 Tons Overhead Line Mine Locomotive for Larger Underground Mine,made in China Mining Locomotive
-
14T Overhead Line Locomotive for Underground Mine, China Manufacture Trolley Locomotive
Product Details
| Fuel Type | Electric | Horsepower | 7.36KN | |
| Dimensions (L x W x H) (mm) | 2960*940*1550mm | Speed (km/h) | 7.5-9.1km/h | |
| Place of Origin | Hunan, China | Brand Name | NADI | |
| Model Number | CJY3/6,7,9G |
Product Description
Specifications
1.3T trolley locomotive2.big traction force ,fast speed, working reliable and flexible
3.hydraulic and mechanical brake
Mode : CJY3/6,7,9G
Trolley locomotive
Technical Performance
Adhesive weight | 3T | |
Voltage of battery | 250V | 550V |
Horsepower(hourly) | 6.5KW | |
Hourly Traction | 5.74KN | |
Max Traction | 7.36KN | |
Speed | 7.5km/h | |
Max Speed | 15km/h | |
Wheelbase | 850mm | |
Track gauge | 600,762,900mm | |
Min curve radius | 6m | |
traction height | 320mm | 210mm |
wheel diameter | 520mm | |
Speed control mode | IGBT, Resistance control | |
Braking Mode | Hydraulic , Mechanical brake | |
