Electric flexible straight tubular heater for ovens, grills and refrigerators
- 4000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
-
Micro Hot Runner Coil Tubular Heater
-
45cm 3U Bundle Electric Tubular Water Heater Element 12KW 380V
-
3U Bundle 1.5" Thread Electric Tubular Water Heater Element 380V 9000W
-
Stainless Steel Water Boil U Type Tubular Heating Heater AC 380V 9000W
-
AC 380V 6500W Stainless Steel Water Boil Tubular Bundle Heating Heater
-
U Shape 24v 350w Satinless Steel Tubular Immersion Heater Screw Plug Heater with 1 Inch BSP Thread
Product Details
| Condition | New | Type | Other, Enamel heating tube, Tubular Heater | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | DragonPower | Model Number | LK-GZ | |
| Dimension(L*W*H) | customized | Weight | Depending on final dimension | |
| Voltage | customized | Power(W) | customized | |
| Certification | ISO9001, CE | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Electric flexible straight tubular heater for ovens, grills and refrigerators
Electric flexible straight tubular heater for ovens, grills and refrigerators Description:
2mm/3mm/3mm/5mm/6mm dia cartridge heaters is a tube-shaped industrial heating element (electrical resistance) with enamel coating, which is widely used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application.
The enamel coating protect the heating tube from accumulated incrustation, thus extend the whole life of heater.
There are various kinds of enamel tubular heater, U shape, W shape, double end, etc. Our 2mm/3mm/3mm/5mm/6mm dia cartridge heaters are customized according to your specifications.
MODEL | DIMENSION(MM) | VOLTAGE(V) | POWER(W) |
LK-GZ-Φ12x1000 | Φ12x1000 | 220 | 2000 |
LK-GZ-Φ14X1500 | Φ14X1500 | 220 | 3000 |
LK-GZ-Φ16X2000 | Φ16X2000 | 220 | 4000 |
LK-GZ-Φ20X1600 | Φ20X1600 | 220 | 4500 |
Note: Other models are available according to your specifications. Please refer to the order guide. | |||
Use condition: | Environment temperature: 20~60 degree |
Leakage current: | <0.5MA |
Insulation resistance: | ≥5M |
Ground resistance: | <0.1 |
Voltage resistance: | No electric breakdown for 1 minute under 1500V |
Temperature resistance | 100-1200 degree |
Electric flexible straight tubular heater for ovens, grills and refrigerators Applications:
Plastic Processing machinery.
Water and Oil Heating Appliances.
Packaging machineries
Vending Machines.
Dies and Tools.
Heating Chemical Solutions.
Ovens & Dryers
Kitchen equipments
Medical equipments

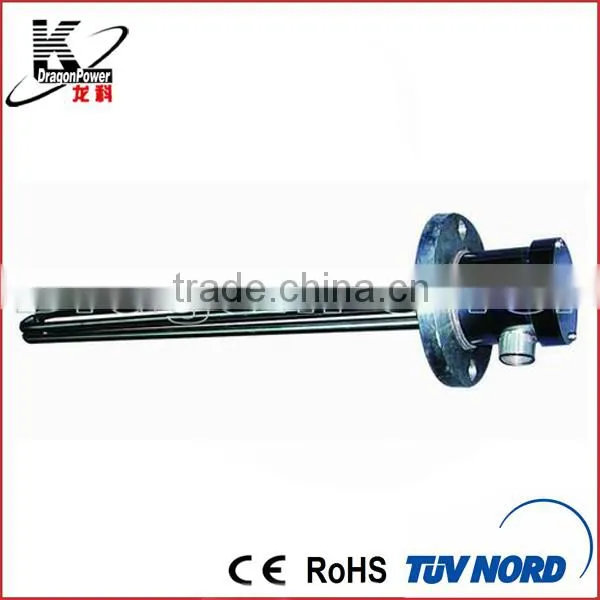

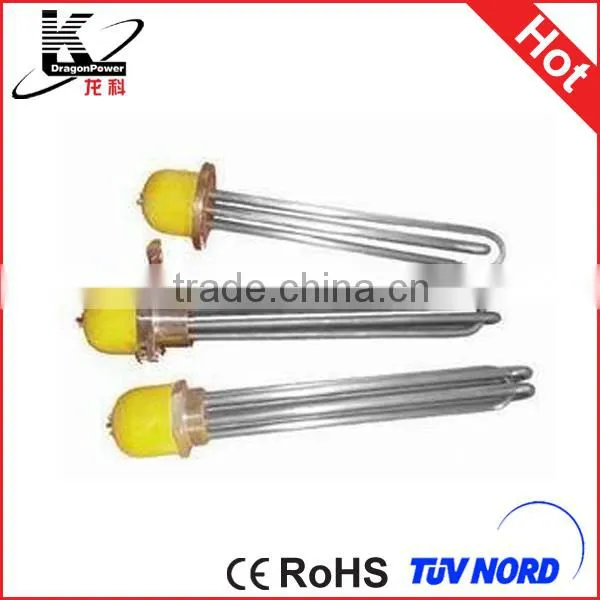

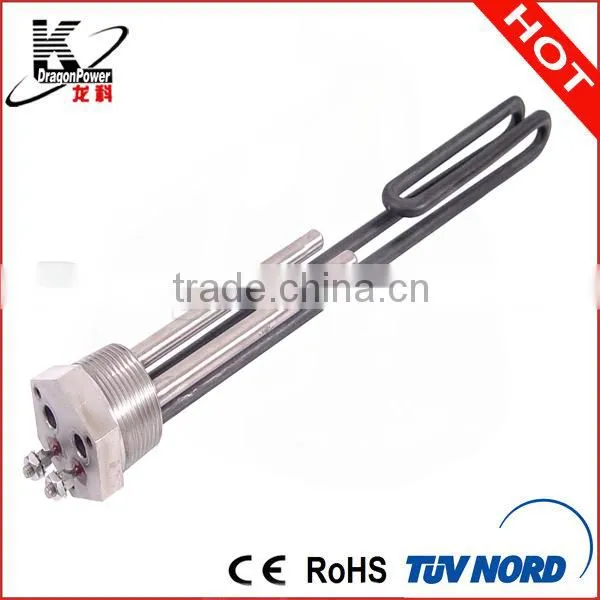

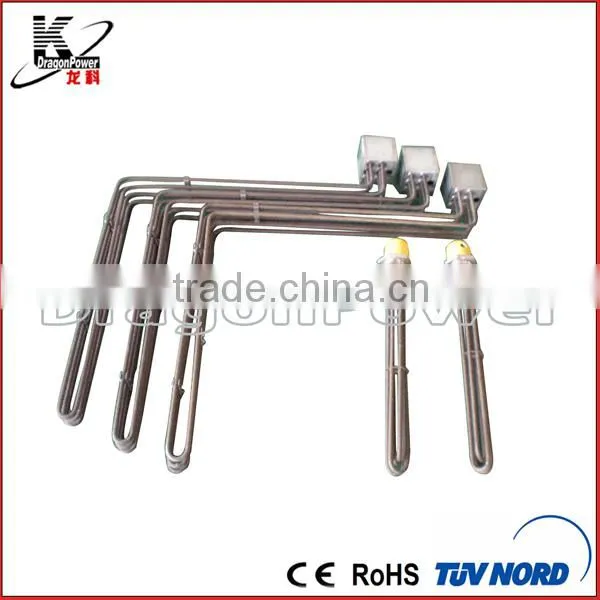

Electric flexible straight tubular heater for ovens, grills and refrigerators Images:
12V immersion heater Production:
Company Information
Packaging: Tubualr heater in plywood case outside if needed.
Shipment: 1.small quantity by DHL, FEDEX
2.Bulk goods by Sea Freight
3. Arranged to your order
Order Guide:
Please specify the following when ordering:
1. Diameter (mm) of tubular heaters
2. Total length of heaters when extended (mm)
3. Tube Material (sus304, sus316, sus316L)
4. Type of leads and length
5. Voltage and power density
6. Content of the stamping if needed
7. Order quantity
8. Delivery date
As it is difficult to see the internal construction of tubular heaters, it’s better to provide us with the drawings/pictures
