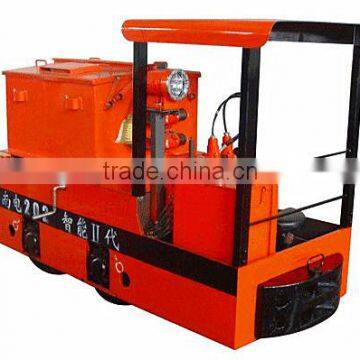

2.5 Tons Explosion-proof Battery Locomotive for Underground Mine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Brand Name	South Machinery
Model Number	CTY2.5/,6, 7, 9G	Condition	New
After-sales Service Provided	Overseas service center available

explosion-proof locomotive for the underground coal mine
IGBT chopper controller
advancing circuits ,simple opeation

Technical Parameters

No	Description	Unit	Parameter
1	Adhesive weight of locomotive	t	2.5
2	The max. length of locomotive	mm	2330
3	The max. width of locomotive	mm	914
4	The max. height of locomotive	mm	1550
5	Rail gauge	mm	600
6	Axle base	mm	650
7	Diameter of road wheels	mm	460
8	Min. radius of curvature	m	5
9	Total gear ratio		18.4
10	Coulping mode and height	mm	Buffer 320
11	Type of brake		Hand, Mechanical
12	One-hour rated traction effort	kN	2.55
13	Battery capacity (5-hour rated capacity)	Ah	330
14	Rated voltage	V	48

2.5 T electric locomotive CTY2.5 6.7.9 GB/smart explosionproof battery type electric locomotive is the company

developed second generation of the chopper speed controller electric locomotive (SM 202 smart electric locomotives).

Have used the most advanced IGBT chopper controller, adding the driver cab’s space without adding car body’s

length, reformed the power box’s lifting device, the locomotive has the characteristics of advancing circuits, simple

control, novel structure, simple operation, comfortable and high reliability, low maintenance cost, energy saving etc.
