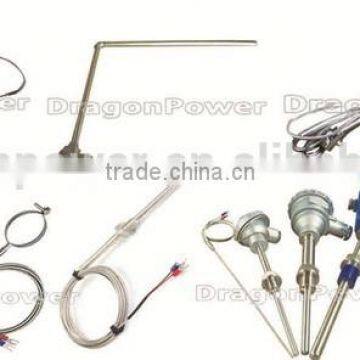

Thermocouple Thermocouple
Thermocouple Specifications:
Diameter | 3mm to 30mm, etc. |
Length | Customized |
Wire length | Customized |
Leads type | Direct line, SUS 304 braided, metal hose, etc. |
Voltage Supply | 12V to a maximum of 480V |
Total capacity | customized |
Resistance Tolerance | +10% - 5% (closer tolerances are available upon special request) |
Heating length | Customized |
Sheath Material | SUS 304/316/321 Incoloy 840 |
Insulation material | Magnesium Oxide Powder |
Maximum Temperature | 800 °C |

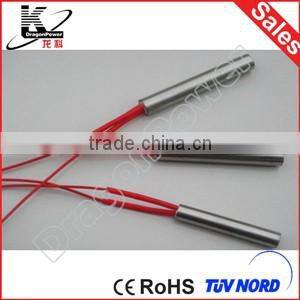

Thermocouple Description:

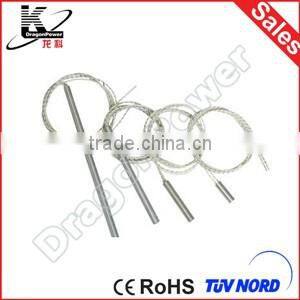

1. Cartridge heater consists of a cylindrical stainless steel tube and thus prevents itself from corrosion. The watt density can reach 25 W/cm2and the operating temperature can go up to 800°C (1472°F)
2.The cartridge heater is filled with magnesium oxide and compressed to avoid short-circuit. There is a heating wire inside which is wound into a ceramic core. The number of coils varies depending on the power.
3. Various cartridge heaters are available. We develop and manufacture cartridge heaters according to your special demands.
Model | Dimension(mm) | Voltage(V) | Power(W) | Key Technical Indexes |
LK-DD-Φ15Χ80 | Φ15Χ80 | 380 | 400 | 1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5M 4.Ground resistance:<0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
LK-DD-Φ20Χ155 | Φ20Χ155 | 380 | 800 | |
LK-DD-Φ16Χ200 | Φ16Χ200 | 220 | 1000 | |
LK-DD-Φ20Χ200 | Φ20Χ200 | 220 | 1200 | |
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Thermocouple Applications:
- Food processing
- Plastic moulds
- Medical equipment
- Hot stamping
- Liquid immersion
- Packaging equipment
- Labeling & Sealing
- Dies & platens
- Injection molding
- Nuclear industry
- Car industry
Order Guide
For Thermocouple Orders, Please Specify:
1) Tube Diameter, Length, Volts/Watts
2) Material, Quantity
3) Lead option and length or terminal configuration, sheath material
4) Whether L shape
5) Heating length, working temperature, working environment
6) Lead end no-heat if different from standard
7) Optional accessories, finishing, internal construction
**Better to provide drawings/pictures

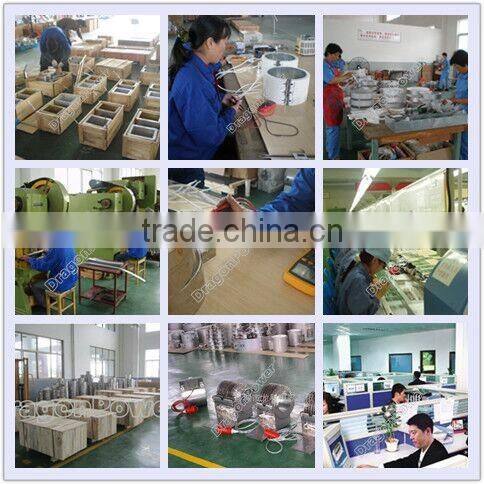

Our Factory
DragonPower Exhibitions:
