Home > Consumer Electronics > Water Heater & Components > Electric Water Heater > Mica Electric Band Heater With Plug

Mica Electric Band Heater With Plug

Name: Mica Electric Band Heater With Plug
Brand: DragonPower
SKU: 110700477
Availability: InStock

Mica Electric Band Heater With Plug thumbnail-1

Mica Electric Band Heater With Plug thumbnail-2

Mica Electric Band Heater With Plug thumbnail-3

Mica Electric Band Heater With Plug thumbnail-4

Mica Electric Band Heater With Plug thumbnail-5

Mica Electric Band Heater With Plug thumbnail-6

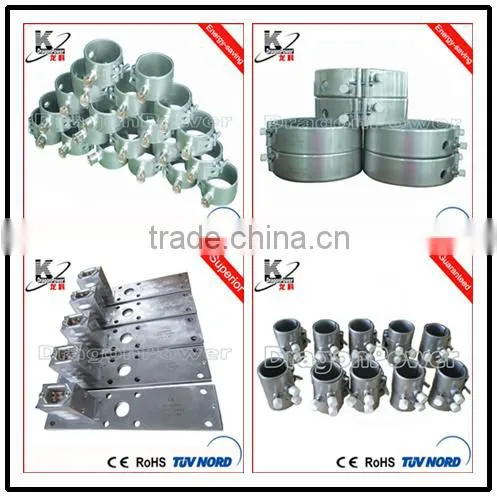

Mica Electric Band Heater With Plug photo-1

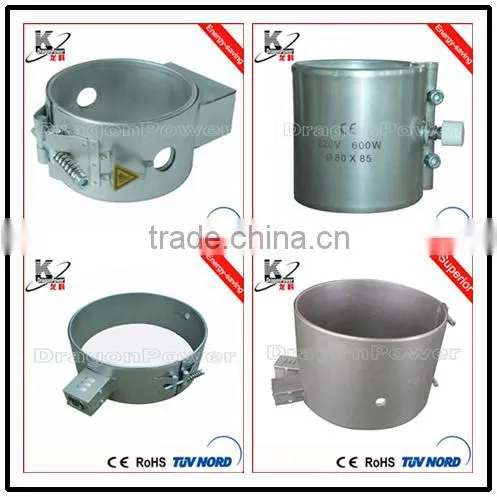

Mica Electric Band Heater With Plug photo-2

Mica Electric Band Heater With Plug photo-3

Mica Electric Band Heater With Plug photo-4

Mica Electric Band Heater With Plug photo-5

Mica Electric Band Heater With Plug photo-6

US$ 10 - 80 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Electric Heater Type:

Mica Heater

Heating Element:

Heating Wire

Installation:

Other, emboitement

Contact Supplier Request Quote Chat Now

Yancheng DragonPower Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Electric Heater Type Mica Heater

Heating Element Heating Wire

Installation Other, emboitement

Certification CE, Other, CE, RoHS, ISO9001

Function Other, heating

Use Other, industry injection molding machine or extruding machine

Place of Origin Jiangsu, China

Brand Name DragonPower

Model Number LK-YM

Mica electric band heater with plug

Product Description

Description: panel mica heater

Technology: Stainless steel is used Cr20Ni80 mica heater for heating system in the body around prefabricated good insulator on the mica. Stainless steel skin and metal, tin or Tongpi produced by the thermal conductivity of. Circle plate can be made and other heterosexual products.

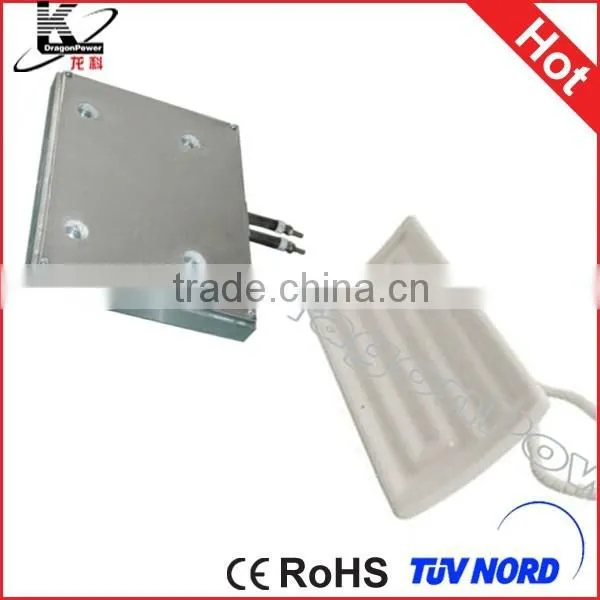

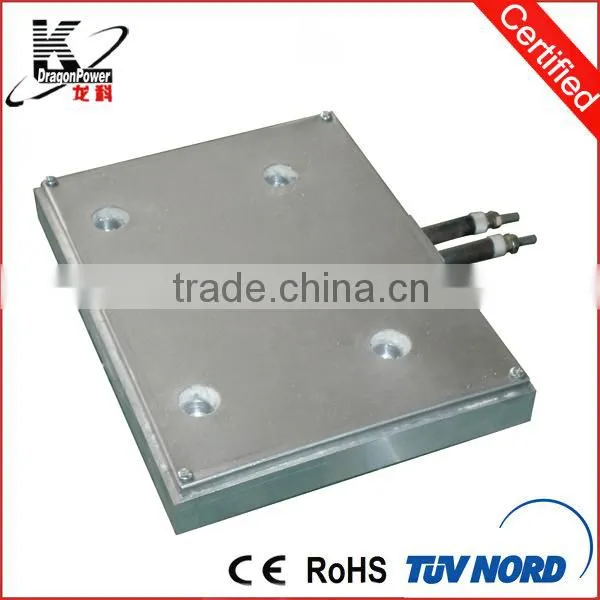

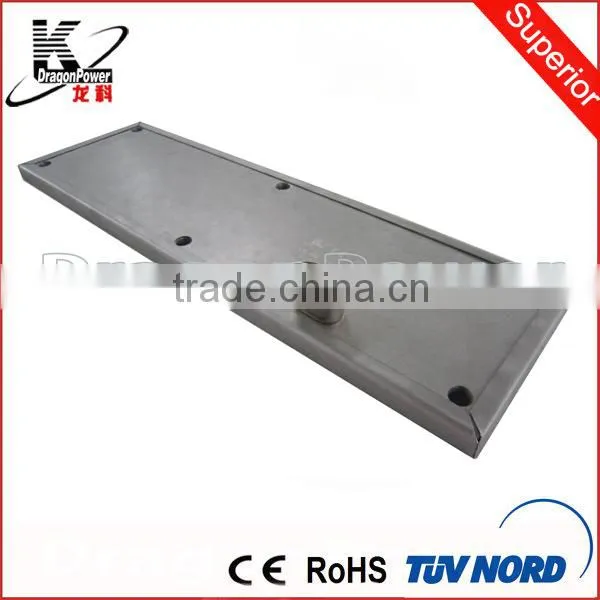

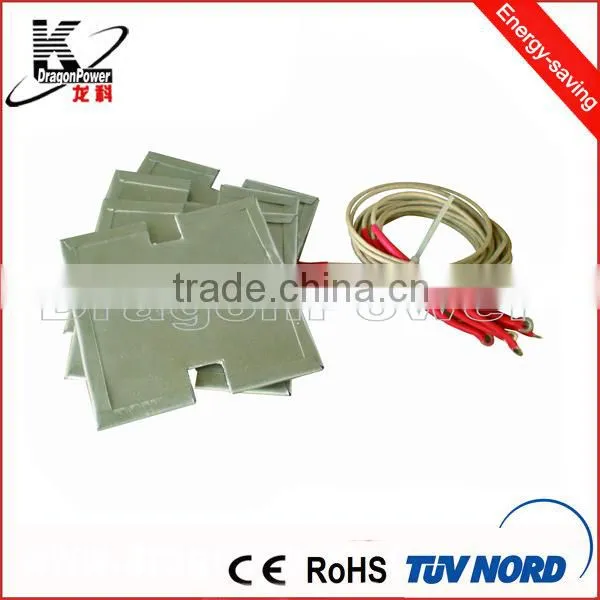

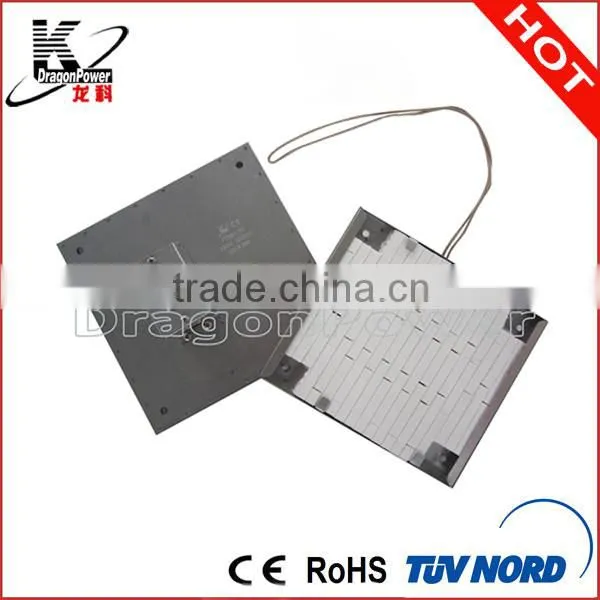

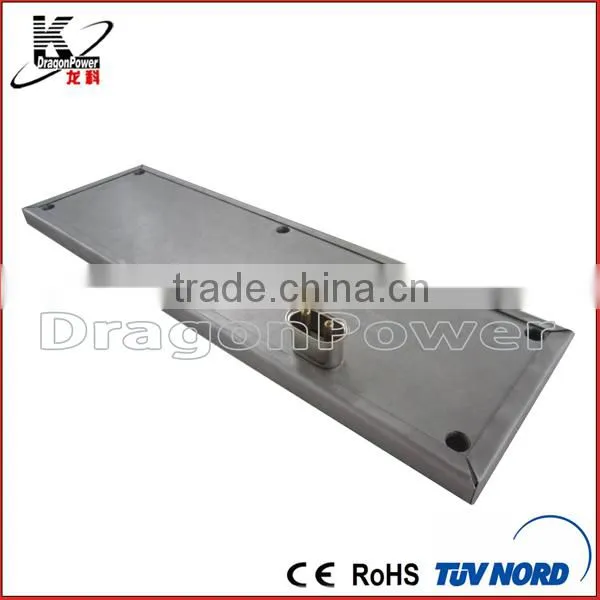

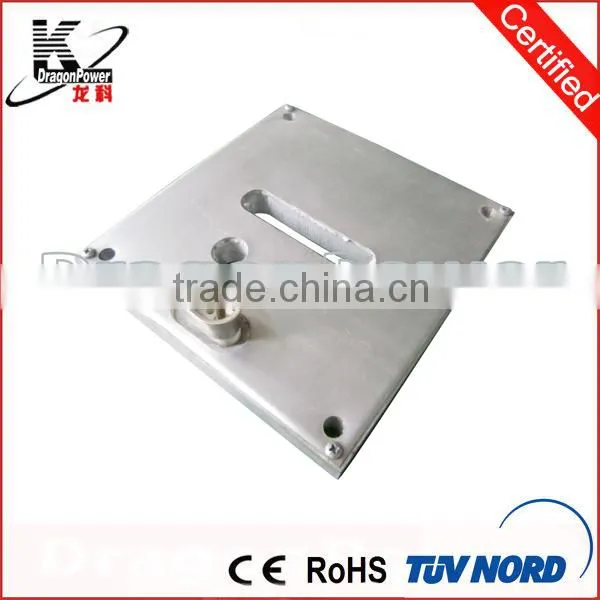

Mica heaters can be manufactured flat or as band heaters and are supplied either as bare mica heaters or encased in specially treated sheath materials.

ADVANTAGES

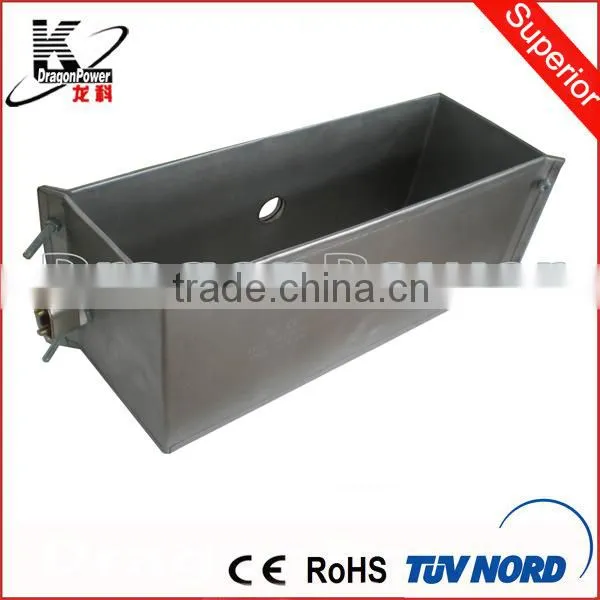

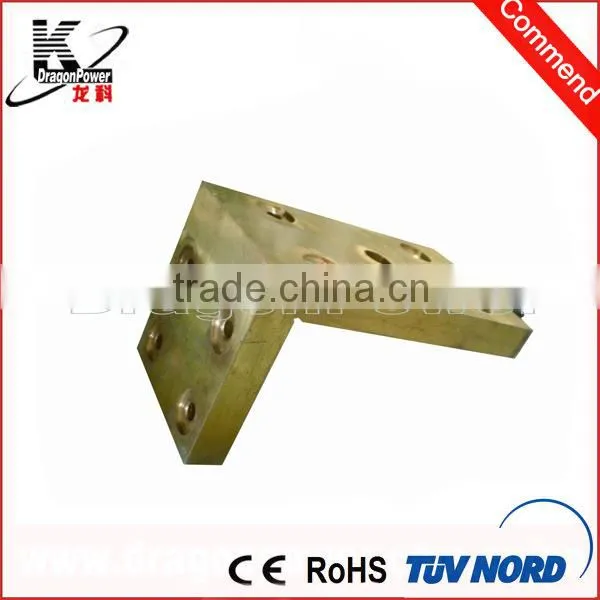

The sheathed heaters can also be formed to shapes such as “L” or “U” sections. Holes and cut outs to customer design can be easily accommodated. Flat Mica heaters must be clamped securely to the surface to be heated.

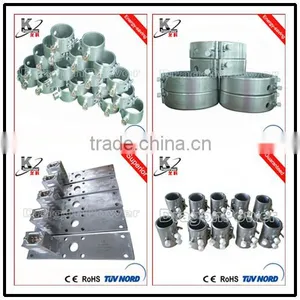

Flat mica and flat sheathed heaters can be manufactured to almost any size. The limiting factors being the design of a suitable element tape and on large heaters, the ability to provide adequate clamping over a large surface area. Band heaters are manufactured in one piece construction up to 12” diameter.

Applications:

FLAT: Dies, Platens, Moulds, Tanks, Process Machinery, any application where controlled surface heating is required.

BAND: Dies, Cylinders, Drums, Tanks, Injection and Blow Moulding Machinery and Plastic Extruders.

Features: portable heater warming faster.

Table for mica heater

*Model*	*Dimension(mm)*	*Voltage(V)*	*Power(W)*
LK-YM-Φ55Χ80	Φ55Χ80	230	800
LK-YM-Φ120Χ141	Φ120Χ141	230	2000
LK-YM-Φ120Χ51	Φ120Χ51	230	520
LK-YM-Φ80Χ60	Φ80Χ60	230	775
LK-YM-Φ58Χ43	Φ58Χ43	230	250
LK-YM-Φ90Χ51	Φ90Χ51	230	300
LK-YM-Φ185Χ51	Φ185Χ51	230	1100
LK-YM-Φ130Χ66	Φ130Χ66	230	1000
LK-YM-Φ165Χ66	Φ165Χ66	230	1100
LK-YM-Φ160Χ70	Φ160Χ70	220	1000
LK-YM-Φ230Χ90	Φ230Χ90	220	2200
LK-YM-Φ154Χ94	Φ154Χ94	220	1500
LK-YM-Φ152Χ100	Φ152Χ100	220	1500
LK-YM-Φ180Χ80	Φ180Χ80	220	1300
LK-YM-Φ265Χ75	Φ265Χ75	220	1500
LK-YM-Φ90Χ180	Φ90Χ180	220	1700
LK-YM-Φ90Χ60	Φ90Χ60	220	550
LK-YM-Φ120Χ80	Φ120Χ80	220	1100
LK-YM-Φ190Χ135	Φ190Χ135	220	3000
LK-YM-Φ185Χ75	Φ185Χ75	220	1500
LK-YM-Φ280Χ48	Φ280Χ48	220	1500
LK-YM-Φ300Χ100	Φ300Χ100	220	2500
LK-YM-Φ320Χ100	Φ320Χ100	220	3000
LK-YM-Φ165Χ45	Φ165Χ45	220	800
LK-YM-Φ180Χ45	Φ180Χ45	220	900
LK-YM-Φ65Χ30	Φ65Χ30	220	200
LK-YM-Φ230Χ45	Φ230Χ45	220	1000
LK-YM-Φ55Χ100	Φ55Χ100	230	1000
LK-YM-Φ80Χ70	Φ80Χ70	230	650
LK-YM-Φ70Χ70	Φ70Χ70	230	600
LK-YM-Φ85Χ45	Φ85Χ45	230	530
LK-YM-Φ110Χ100	Φ110Χ100	230	150
LK-YM-Φ102Χ70	Φ102Χ70	230	700
Note: Other models are available according to your specifications. Please refer to the Order Guide

Packaging & Shipping

Packaging:mica heater in plywood case outside if needed.

Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.

Our Services

Other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
