Flat Mica Heaters in Round Shape

Name: Flat Mica Heaters in Round Shape
Brand: DragonPower
SKU: 110699751
Availability: InStock

US$ 10 - 20 MOQ: 5 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

DragonPower

Model Number:

LK-YM

Yancheng DragonPower Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name DragonPower

Model Number LK-YM

flat mica heaters

1.Scope of Application

Heating part of plastic machines,such as

2.Types

We can do various shape according to your requirements,below are the most popular types:

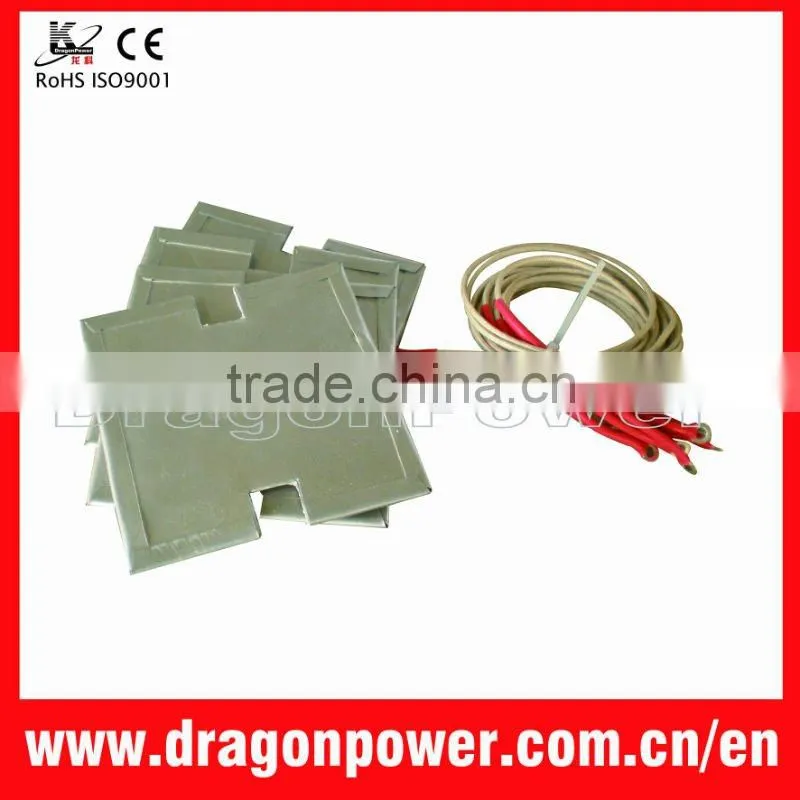

Mica heating panel

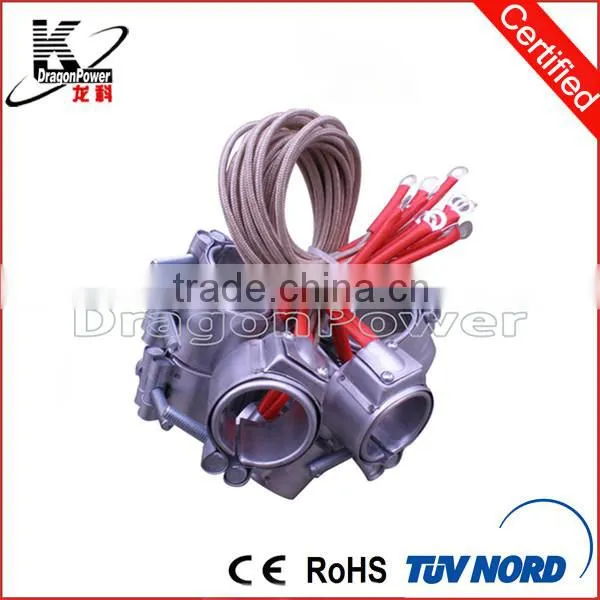

Mica heating circle

3.Specification

*Model*	*Dimension(mm)*	*Voltage(V)*	*Power(W)*	*Key Technical Indexes*
LK-YM-Φ55Χ80	Φ55Χ80	230	800	1.Service Conditions environment temperature:-20°C~+60°Crelative temperature<80% 2.leakage current:<0.5M 3.insulation resistance:>=5M 4.ground resistance:<0.1 5.withstand voltage:1500V,no breakdown within 1 Minute 6.temperature resistance:500°C-800°C 7.power deviation:+5%-10%
LK-YM-Φ120Χ141	Φ120Χ141	230	2000
LK-YM-Φ120Χ51	Φ120Χ51	230	520
LK-YM-Φ80Χ60	Φ80Χ60	230	775
LK-YM-Φ58Χ43	Φ58Χ43	230	250
LK-YM-Φ90Χ51	Φ90Χ51	230	300
LK-YM-Φ185Χ51	Φ185Χ51	230	1100
LK-YM-Φ130Χ66	Φ130Χ66	230	1000
LK-YM-Φ165Χ66	Φ165Χ66	230	1100
LK-YM-Φ160Χ70	Φ160Χ70	220	1000
LK-YM-Φ230Χ90	Φ230Χ90	220	2200
LK-YM-Φ154Χ94	Φ154Χ94	220	1500
LK-YM-Φ152Χ100	Φ152Χ100	220	1500
LK-YM-Φ180Χ80	Φ180Χ80	220	1300
LK-YM-Φ265Χ75	Φ265Χ75	220	1500
LK-YM-Φ90Χ180	Φ90Χ180	220	1700
LK-YM-Φ90Χ60	Φ90Χ60	220	550
LK-YM-Φ120Χ80	Φ120Χ80	220	1100
LK-YM-Φ190Χ135	Φ190Χ135	220	3000
LK-YM-Φ185Χ75	Φ185Χ75	220	1500
LK-YM-Φ280Χ48	Φ280Χ48	220	1500
LK-YM-Φ300Χ100	Φ300Χ100	220	2500
LK-YM-Φ320Χ100	Φ320Χ100	220	3000
LK-YM-Φ165Χ45	Φ165Χ45	220	800
LK-YM-Φ180Χ45	Φ180Χ45	220	900
LK-YM-Φ65Χ30	Φ65Χ30	220	200
LK-YM-Φ230Χ45	Φ230Χ45	220	1000
LK-YM-Φ55Χ100	Φ55Χ100	230	1000
LK-YM-Φ80Χ70	Φ80Χ70	230	650
LK-YM-Φ70Χ70	Φ70Χ70	230	600
LK-YM-Φ85Χ45	Φ85Χ45	230	530
LK-YM-Φ110Χ100	Φ110Χ100	230	150
LK-YM-Φ102Χ70	Φ102Χ70	230	700
Note: Other models are available according to your specifications.

flat mica heaters Order Guide

Please specify the following when ordering.

The inner diameter (mm) (or outer diameter when the heater is used inside) and length (mm) of heaters
width of heaters
Voltage and power density
Position and size of the hole for thermocouple
Wiring type and position
Content of the stamping if needed
Special gap if Necessary
Order quantity
Delivery date
