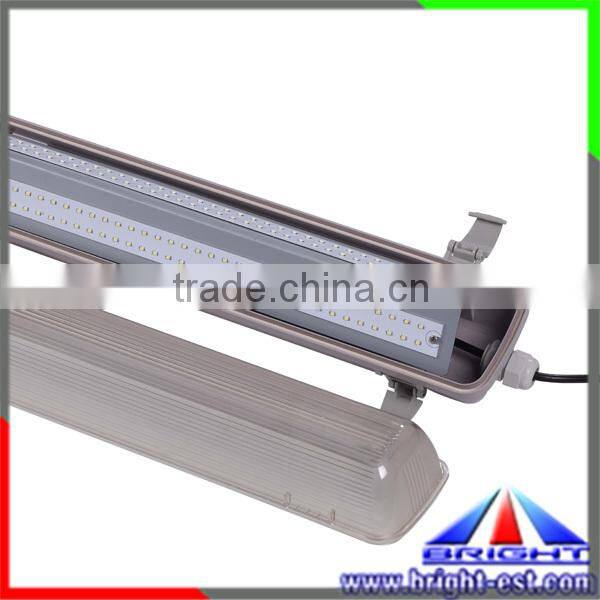

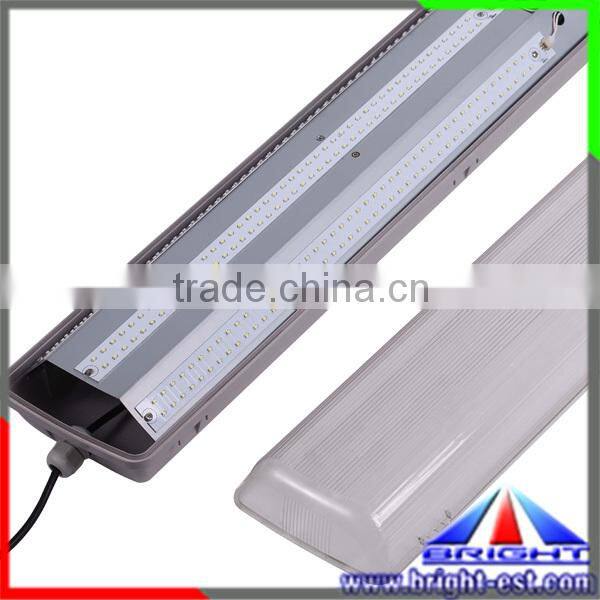

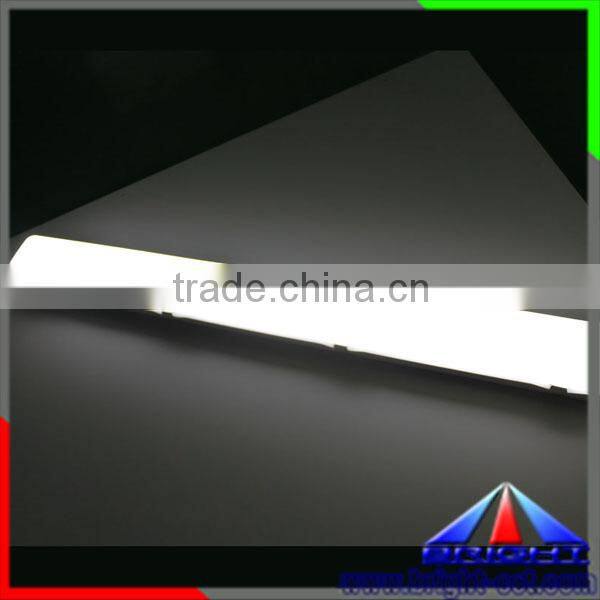

AC85-265V Tri-proof Led Tube Light Bar SMD2835

  High Lumens Aluminium Housing SMD 2835 IP65 LED Tri-proof LampLight

1.Shell: Standard T8 aluminum alloy shell, with transparent PC, strip PC and frosted milky-colored PC to choose;

2.Light Source: 3528 white color LED is made of high bright chip produced in Taiwan, packaged in low attenuation technique.

3. Luminous flux:Luminous flux of single LED reaches 6.5-7.1 lm, no attenuation after 3000 hour test,

comply with LED lumination standard.

4.Power Supply: Independently developed constant current device, with over-current, over-voltage, over-heat and surge protection.

5.Certificate: CE, RoHS, PCC, PSE, CSA

Specifications:

Power Consumption : 20W

Fitting : Tri-proof

Beam Angle : 120 degrees

Input Power : AC85V - AC265V

Power Factor : >95%

Luminous Flux : 1600-1800LM

Color Temperature: 2700-6500K

CE & RoHS certified : Yes

Life Expectancy : 40000-50000 hours

70%~80% energy-saving

 Solid-state, high shock / vibration resistant

 No RF interference

 Low power consumption, high intensity

Long time working, 12 hours/day is perfect, produce low heat

No mercury or other hazardous materials

Super bright LED light source with stable quality

Installment Instruction:

1. According to the picture representation, install the match length bracket as the tube from the tube vertical direction.
2. Intervene the matching power wire to the one side (no positive and negative difference) of the bracket base as the picture shows, make the other side hang, then, connecting AC220V power and would be lighted.
3. The product could not tear down the light tube only or install other brackets to lighten, it must match our company’s bracket to use.
4. This product can’t replace the conventional T5 Fluorescent Tube.
5. This product can be used by series after put the two tubes in the bracket. At most 50 pieces in series.
6. Don’t separate this product, it’s not in the guarantee .If any error state appears, please contact with us.

Notes:

Examine the product carefully after open the package. If the product were damaged in transportation, please notify us immediately; do not use the damaged lights.

This LED tube has two voltage input mode, one is AC220-AC250V, and the other is AC100-AC120V. Firstly, confirm the suitable voltage. Then remove the ballast because LED tube does not need it, otherwise it will cause short circuit. Next, connect the pins of one side with live wire, and the other side with zero line. Do not connect the live wire and zero line with the pins in one side, otherwise it will cause short circuit.

SCOPE OF APPLICATION:

T8 series LED tube is applicable to interior illumination in various occasions, such as assembly line, workshop, office, home, supermarket, school, hospital, parking lot and so on. It also can be used in the lighting box and illumination for the places where is not easy to replace or maintain.

Application:

1. Building (office, architecture or home) decoration ;

2. Library,Laboratory,Factory;

3. Emergency hallway lighting

4. Shopping mall, restaurant, hotel,KTV;

5. Meeting room ,Living room
