Insulation Jacket/Blanket/Cover Description
Industrial insulation jacket/cover have three layers, with liner high-SI aluminum cloth, insulating layer ceramic or glass fiber, and the protection layer ceramic fiber with high temperature resistance paint coating, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm, temperature resistance more than 1000 cent degree.

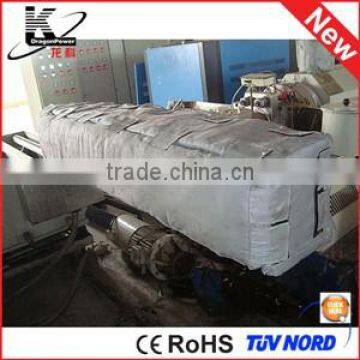

Insulation jacket/cover is widely used in various sectors such as barrel heaters on injection molding machines, molds & dies,on injection/extrusion machine, as well as valves and
pipes, elbows, flanges, heat exchangers and the exhaust pipe of engines. It reduces heat transfer to consume less energy for machine working in requested temperature. It can help users to save 25% to 45% energy.
Advantages of Insulation Jacket/Cover/Blanket
1. Save 20%-45% energy in general
2. The surface temperature can be lowered to 40degree centigrade, and thus safe to touch by hands
3. Made to order by customer’s requirement to ensure 100% fit between heaters and jackets
4. Easy to install by buckles, by aligning the wiring terminals and thermocouple holes
5. Improve the quality of plastic products due to stable temperature
6. Short return on investment period (with 20% energy-saving rate, it takes 4 to 5 months to recover the cost. The higher the rate is, the less time it takes)
7. Long usage life of jacket (also can extend the life of heater by preventing it from continuous heating. And thus extend the lives of barrel and screw)
8. Water and oil proof, multi-layer protection, anti corrosion, easy to clean, easy to bend, pollution free and neat out looking.
Insulation Cover/Jacket/Blanket Application
· Barrels of injection, extrusion, blow moldings and filming machines
· Steam turbines, gas turbines (as turbine blankets) and compressors
· Exhaust systems of engines, Generators
· Heat exchangers
· Pumps, Valves & Flanges
· Expansion Joints, Flex Hose
· Tank Covers

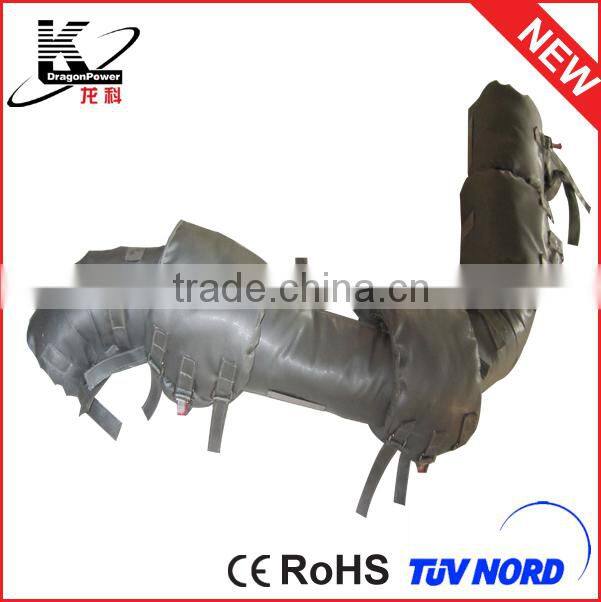

Insulation Cover/Jacket/Blanket Images
Insulation Cover/Jacket/Blanket Order Guide
Our Insulation Covers/Jacket/Blanket Are SGS Certified
Related Products:
Our Service
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
