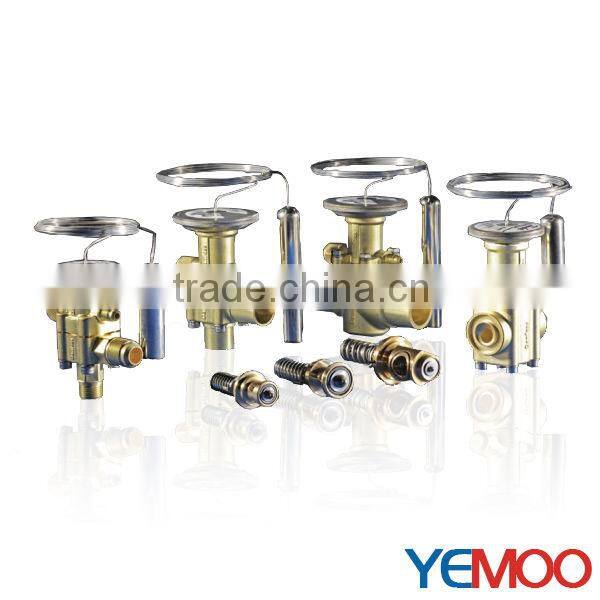

DANFOSS Expansion Valve

DANFOSS Expansion Valve thumbnail-1
DANFOSS Expansion Valve photo-1
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DANFOSS
Model Number:
TDEX-6
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DANFOSS
Model Number TDEX-6
Type Other, Expansion valve
Application Refrigeration Parts
Certification CE

Specifications

DANFOSS Expansion Valve
1.Constant superheat performa
2.Wide range of evaporating temperature
3.Apply for R22



 Can I help you ?

_______________________________________________





















 Why choose it ?

_______________________________________________

DANFOSS Expansion Valve

nstant superheat performa

2.wide range of evaporating temperature

3.apply for R22











 What you see is what you get ?



_______________________________________________

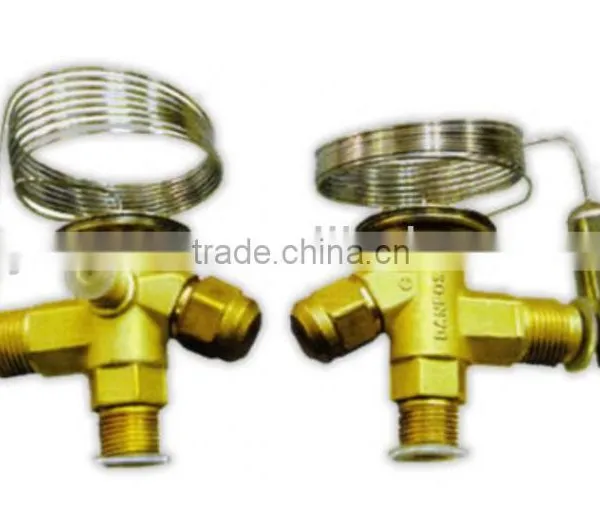

DANFOSS Expansion Valve







 How about it ?



_______________________________________________







Range K=-25°C - + 10°C MOP100psig/8bar. abs. SS=4K



Model Capacity INCH.     MM.
Qnom .1)   TR Qnom .1)  KW
ODF*ODF Code Code ODF*ODF Code Code
A*B Multi Pack Industrial Pack A*Bmm Multi Pack Industrial Pack
in
                                                                TDEX3-7.5
TDEX3 10.5 3/8*5/8 068H6200 068H4150 10*16 068H5146 068H4156
TDEX3 10.5 1/2*5/8 068H6201 068H4150 12*16 068H5147 068H4157
TDEX4 14 1/2*7/8 068H6202 068H4152 12*22 068H6208 068H4158
TDEX6 21 1/2*5/8 068H6234 068H4184 12*16 068H5145 068H4185
TDEX6 21 1/2*7/8 068H6203 068H4153 12*22 068H6209 068H4159
TDEX6 21 5/8*7/8 068H6204 067H4154 16*22 068H3210 068H4160
TDEX7.5 26 5/8*7/8 068H6205 067H4155 16*22 068H6211 068H4161
                                                                TDEX8-19
TDEX8 28 5/8*7/8 068H6212 068H4162 16*22 068H6219 068H4169
TDEX11 38.5 5/8*7/8 068H6213 068H4163 16*22 068H6220 068H4170
TDEX11 38.5 5/8*1 1/8 068H6214 068H4164 16*28 068H6221 068H4171
TDEX12.5 44 5/8*7/8 068H6215 068H4165 16*22 068H6222 068H4172
TDEX12.5 44 5/8*1 1/8 068H6216 068H4166 16*28 068H6223 068H4173
TDEX16 56 5/8*1 1/8 068H6236 068H4186 16*28 068H6237 068H4187
TDEX16 56 7/8*1 1/8 068H3217 068H4167 22*28 068H6224 068H4174
TDEX19 66.5 7/8*1 1/8 068H6218 068H4168 22*28 068H6225 068H4175
                                                                TDEBX8-19
TDEX8 28 5/8*7/8 068H7130 068H8000 16*22 068H7131 068H8001
TDEX11 38.5 5/8*7/8 068H7132 068H8002 16*22 068H7133 068H8003
TDEX11 38.5 5/8*1 1/8 068H7134 068H8004 16*28 068H7135 068H8005
TDEX12.5 44 5/8*7/8 068H7136 068H8006 16*22 068H7137 068H8007
TDEX12.5 44 5/8*1 1/8 068H7138 068H8008 16*28 068H7139 068H8009
TDEX16 56 5/8*1 1/8 068H7140 068H8010 16*28 068H7141 068H8011
TDEX16 56 7/8*1 1/8 068H7142 068H8012 22*28 068H7143 068H8013
TDEX19 66.5 7/8*1 1/8 068H7144 068H8104 22*28 068H7145 068H8015
                                                                TDEBX20-40
TDEBX20  70 7/8*1 1/8 068H7146 068H8016 22*28 068H7147 068H8017
TDEBX26 91 7/8*1 3/8 068H7148 068H8018 22*35 068H7149 068H8019
TDEBX30 105 7/8*1 3/8 068H7150 068H8020 22*35 068H7151 068H8021
TDEBX30 105 1 1/8*1 3/8 068H7152 068H8022 28*35 068H7153 068H8023
TDEBX40 140 1 1/8*1 3/8 068H7154 068H8024 28*35 068H7155 068H8025









What can I get guarantee ?

_______________________________________________



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.
