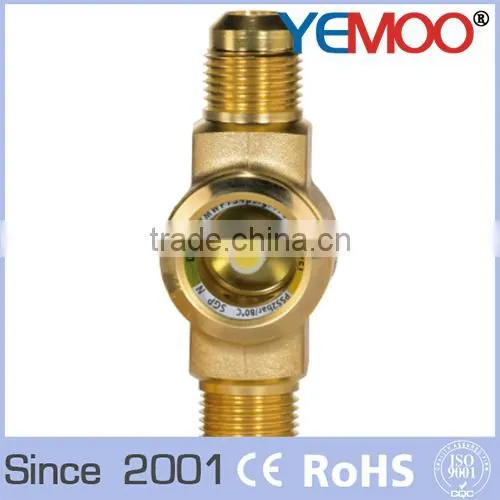

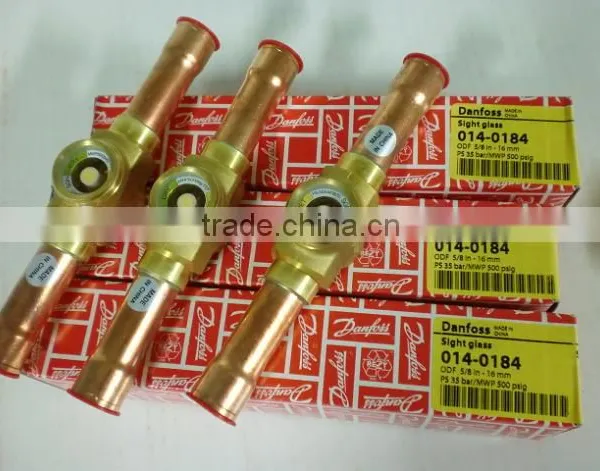

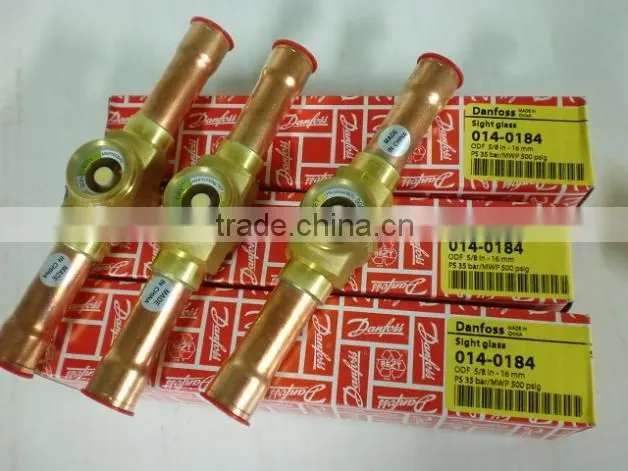

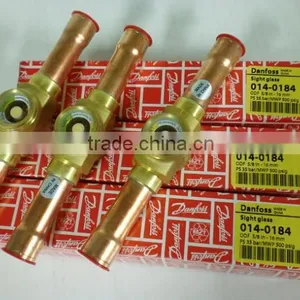

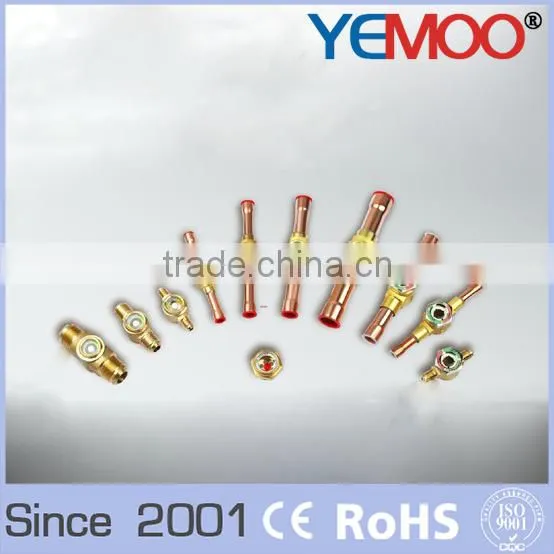

YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit

YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit thumbnail-1
YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit thumbnail-2
YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit thumbnail-3
YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit photo-1
YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit photo-2
YEMOO SGI Level Sight Glass High Pressure Oil Sight Glass for Condensing Unit photo-3
US$ 50 - 350 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Danfoss
Model Number:
SGI level sight glass
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name Danfoss
Model Number SGI level sight glass
Type Other, Sight glass, SGI level sight glass
Application Refrigeration Parts
Certification CE





 Why choose it ?

______________________________________________



Sight glasses are used to indicate:



1. The condition of the refrigerant in the liquid line of the plant.

2. The flow in the oil return line from the oil separator.

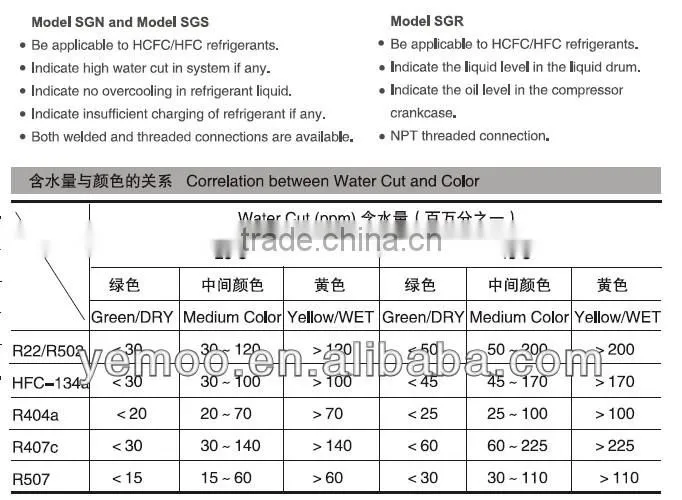

3. The moisture content in the refrigerant.



Danfoss offers two types of sight glass:

Inline and vessel mount for different assembly requirement.



The SG and SGR are mainly used to indicate the condition of the refrigerant as well as the liquid level in the receiver or the oil level in the compressor.



The SGI/SGN and SGRI/SGRN are equipped with sensitive indicators that reflects a color, depending on thr moisture content in the refrigerant.







Features



Provides fast and easy indication of:

-High system moisture content

-Lack of subcooling or low system charge

-Liquid level(vessel mount versions only)



Two indicator types:

-Type"I"-provides optimal moisture indication for all HCFC refrigerants.

-Type"N"-provides optimal moisture indication for all HCFC and Non-flammable HFC refrigerants.



All indicators are resistant

Available in both inline and vessel mount versions

Hermetically sealed, tempered glass for easy viewing

Available in both flare and solder versions











 What you see is what you get ?

______________________________________________



YEMOO SGI level sight glass high pressure oil sight glass for condensing unit



YEMOO SGI level sight glass high pressure oil sight glass for condensing unit







YEMOO SGI level sight glass high pressure oil sight glass for condensing unit





YEMOO SGI level sight glass high pressure oil sight glass for condensing unit



CFC/HCFC
  Type Version Connection Code No.
inch mm

SGI 6 Flare  int.x ext. 1/4 x 1/4 6x6 014-0007
SGI 10 3/8 x 3/8 10x10 014-0008
SGI 12 1/2 x 1/2 12x12 014-0009
SGI 16 5/8 x 5/8 16x16 014-0024
SGI 19 3/4 x 3/4 19x19 014-0028

SGI 6 Flare  int.x ext1) 1/4 x 1/4 6x6 014-0021
SGI 10 3/8 x 3/8 10x10 014-0022
SGI 12 1/2 x 1/2 12x12 014-0025
SGI 16 5/8 x 5/8 16x16 014-0026
SGI 19 3/4 x 3/4 19x19 014-0043





























 SGI 6s Solder ODFxODF 1/4 x 1/4   014-0034
SGI 10s 3/8 x 3/8 014-0035
SGI 12s 1/2 x 1/2 014-0036
SGI 16s 5/8 x 5/8 16x16 014-0044
SGI 19s 3/4 x 3/4 19x19 014-0047
SGI 22Ss 7/8 x 7/8 22x22 014-0039
SGI 6s Solder ODFxODF   6x6 014-0040
SGI 10s 10x10 014-0041
SGI 12s 12x12 014-0042
SGI 18s 18x18 014-0045

SGI 6s Solder ODFxODM 1/4 x 1/4   014-0125
SGI 10s 3/8 x 3/8 014-0126
SGI 12s 1/2 x 1/2 014-0127
SGI 16s 5/8 x 5/8 16x16 014-0128
SGI 22Ss 7/8 x 7/8 22x22 014-0130
1) can be screwed directly onto the Danfoss filter drier.





HFC
  Type Version Connection Code No.
inch mm



 SGN 6 Flare          int.x ext. 1/4x1/4 6x6 014-0161
SGN 10 3/8x3/8 10x10 014-0162
SGN 12 1/2x1/2 12x12 014-0163
SGN 16 5/8x5/8 16x16 014-0165
SGN 19 3/4x3/4 19x19 014-0166

SGN 6 Flare          int.x ext.2) 1/4x1/4 6x6 014-0171
SGN 10 3/8x3/8 10x10 014-0172
SGN 12 1/2x1/2 12x12 014-0173
SGN 16 5/8x5/8 16x16 014-0174
SGN 19 3/4x3/4 19x19 014-0175































 SGN 6s Solder ODFxODF 1/4x1/4   014-0181
SGN 10s 3/8x3/8 014-0182
SGN 12s 1/2x1/2 014-0183
SGN 16s 5/8x5/8 16x16 014-0184
SGN 19s 3/4x3/4 19x19 014-0185
SGN 22s 7/8x7/8 22x22 014-0186
SGN 22s 9/8x9/8   014-0187
SGN 6s Solder ODFxODF   6x6 014-0191
SGN 10s 10x10 014-0192
SGN 12s 12x12 014-0193
SGN 18s 18x18 014-0195

SGN 6s Solder ODFxODM 1/4x1/4   014-0201
SGN 10s 3/8x3/8 014-0202
SGN 12s 1/2x1/2 014-0203
SGN 16s 5/8x5/8 16x16 014-0204
SGN 22s 7/8x7/8 22x22 014-0206
2) can be screwed directly onto the Danfoss filter drier.





R410A
  Type Version Connection Code No.
inch mm

SGH 6 Flare          int.x ext. 1/4x1/4 6x6 014-01660

SGH 6s Solder ODFxODF 1/4x1/4   014-1090
SGH 10s 3/8x3/8   014-1092
SGN 12s 1/2x1/2   014-1091
SGH 16s 5/8x5/8 16x16 014-1094
SGH 22s 7/8x7/8 22x22 014-1096
SGH 22s 9/8x9/8   014-1098











What can I get guarantee ?

______________________________________________



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.
