YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve

YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve thumbnail-1
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve thumbnail-2
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve thumbnail-3
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve thumbnail-4
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve thumbnail-5
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve photo-1
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve photo-2
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve photo-3
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve photo-4
YEMOO Nrv Type Angleway Solder Refrigeration System Check Valve photo-5
US$ 80 - 350 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Danfoss
Model Number:
refrigeration system check valve
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Danfoss
Model Number refrigeration system check valve
Type Other, Check valve, refrigeration system check valve
Application Refrigeration Parts
Certification CE

Why choose it ?

___________________________________________



The Danfoss NRV and NRVH check valves are optimized for use in liquid, suction and hot gas lines in commercial refrigeration to ensure correct flow direction. The NRVH valve is especially designed for plants where the compressors are connected in parallel.

The check valves prevent back-condensation from warm to cold evaporator and the built-in dampening piston makes the valve suitable for installation in lines where pulsation can occur, e.g. in the discharge line from the compressor.





Features:

Ensure correct flow direction.


Available in both straightway and angleway versions.


Prevents back-condensation from warm to cold system part.


Solder versions are compliant with ATEX hazard zone 2.


Built-in damping piston that makes the valves suitable for installation in lines where pulsation can occur. e.g. in the discharge line from the compressor.


In refrigerationplants with compressors connected in parallel. it is advantageous to use NRVH. since the spring is stronger than in NRV.



Oversize connections provide flexibility in use.











What you see is what you get ?



_______________________________________________

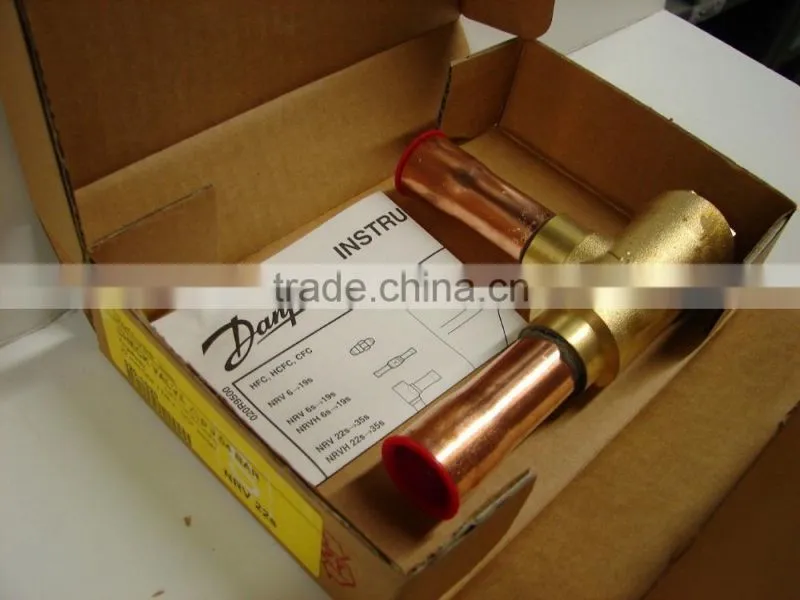

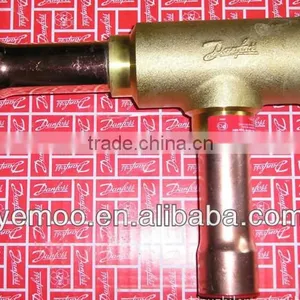

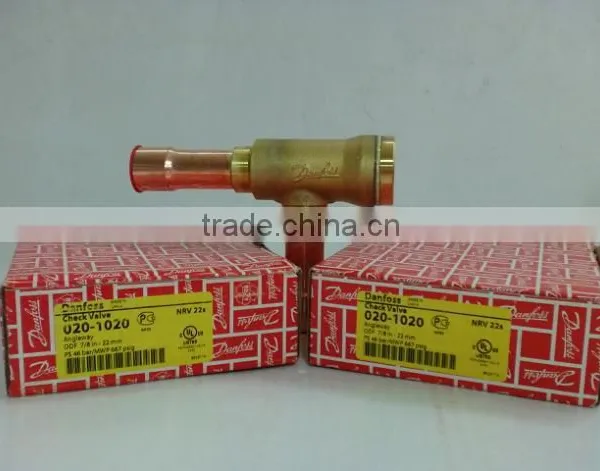

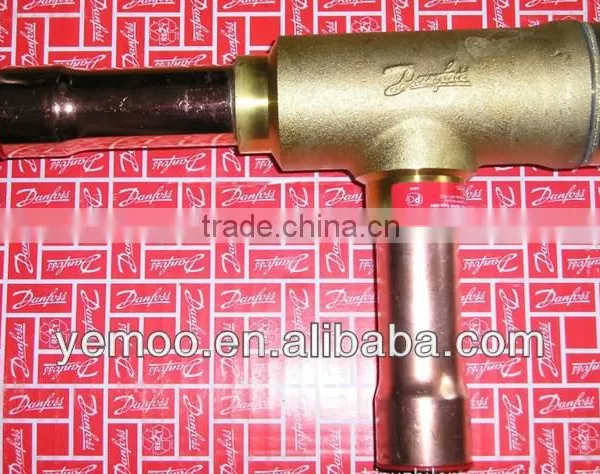

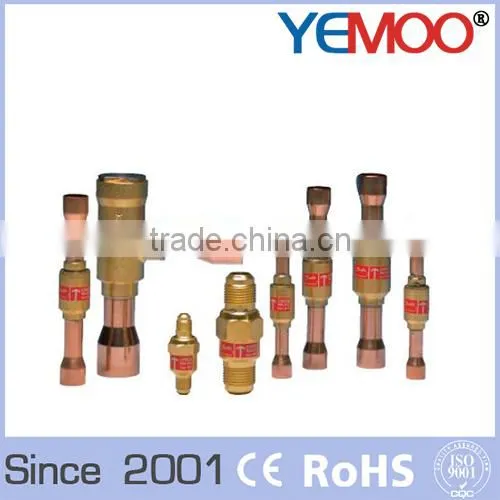

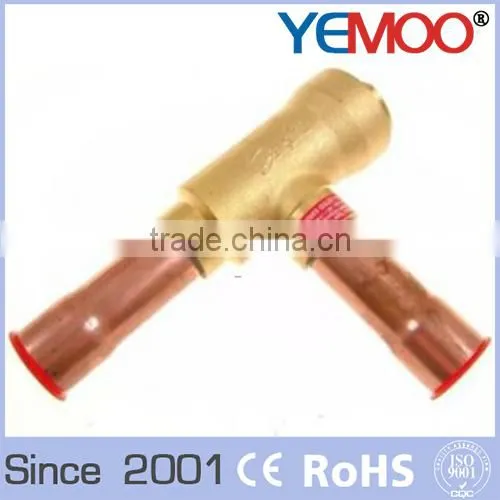

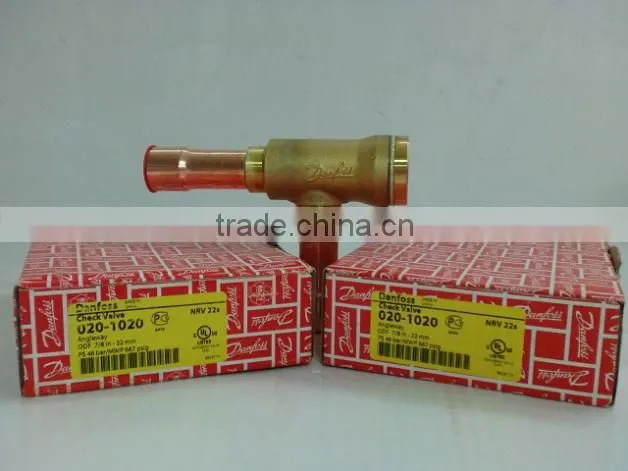

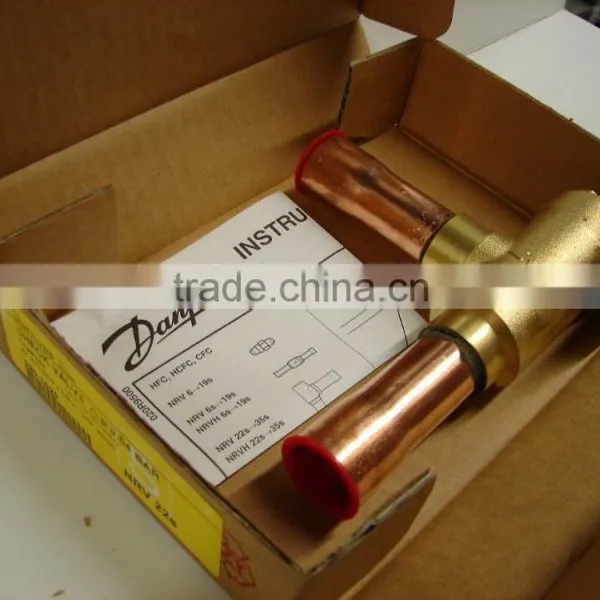

  YEMOO nrv type angleway solder refrigeration system check valve



 YEMOO nrv type angleway solder refrigeration system check valve



 YEMOO nrv type angleway solder refrigeration system check valve



YEMOO nrv type angleway solder refrigeration system check valve













 How about it ?



_______________________________________________























 Straightway flare version without union
Valve type Connection type Connection Pressure drop across valve           2)

Kv value

3)

 Code No.
inch mm bar psi m³/h
NRV 6 straightway-flare 1/4 6 0.07 1.01 0.56 020-1040
NRV 10 straightway-flare 3/8 10 0.07 1.01 1.2 020-1041
NRV 12 straightway-flare 1/2 12 0.05 0.72 2.05 020-1042
NRV 16 straightway-flare 5/8 16 0.05 0.72 3.6 020-1043
NRV 19 straightway-flare 3/4 19 0.05 0.72 5.5 020-1044

2) The minimum pressure at which the valve is completely open.

The NRVH with a stronger spring is used in the discharge line from compressors connected in parallel.
3)The Kv / Cv value is the flow of water in [m3/h – gal/min] at a pressure drop across valve of 1 bar / 14.5 psig.
 ρ = 1000 kg/m3- 2205 lbs/G.

































 Angleway solder ODF version
Valve type Connection type Connection Pressure drop across valve           2) Kv value 3)        Code No.
inch mm bar psi m³/h
NRV 22s Angleway-solder 7/8 22 0.04 0.58 8.5 020-1020
NRVH 22s Angleway-solder 7/8 22 0.3 4.35 8.5 020-1032
NRV 22s 1) Angleway-solder 9/8 - 0.04 0.58 8.5 020-1060
Angleway-solder - 28 0.04 0.58 8.5 020-1055
NRVH 22s 1) Angleway-solder 9/8 - 0.3 4.35 8.5 020-1072
Angleway-solder - 28 0.3 4.35 8.5 020-1067
NRV 28s Angleway-solder 9/8 - 0.04 0.58 16.5 020-1021
Angleway-solder - 28 0.04 0.58 16.5 020-1025
NRVH 28s Angleway-solder 9/8 - 0.3 4.35 16.5 020-1029
Angleway-solder - 28 0.3 4.35 16.5 020-1033
NRV 28s 1) Angleway-solder 11/8 35 0.04 0.58 16.5 020-1056
NRVH 28s 1) Angleway-solder 11/8 35 0.3 4.35 16.5 020-1068
NRV 35s Angleway-solder 11/8 35 0.04 0.58 29 020-1026
NRVH 35s Angleway-solder 11/8 35 0.3 4.35 29 020-1034
NRV 35s 1) Angleway-solder 13/8 - 0.04 0.58 29 020-1061
Angleway-solder - 42 0.04 0.58 29 020-1027
NRVH 35s 1) Angleway-solder 13/8 - 0.3 4.35 29 020-1073
Angleway-solder - 42 0.3 4.35 29 020-1035
1) Oversize connections.






























































 Straightway solder ODF version
Valve type Connection type Connection Pressure drop across valve           2) Kv value 3)        Code No.
inch mm bar psi m³/h
NRV 6s Straightway-solder 1/4 - 0.07 1.01 0.56 020-1010
Straightway-solder - 6 0.07 1.01 0.56 020-1014
NRV 6s 1) Straightway-solder 1/4 - 0.07 1.01 0.56 020-1057
Straightway-solder - 6 0.07 1.01 0.56 020-1050
NRVH 6s 1) Straightway-solder 3/8 - 0.3 4.35 0.56 020-1069
Straightway-solder - 10 0.3 4.35 0.56 020-1062
NRV 10s Straightway-solder 3/8 - 0.07 1.01 1.2 020-1011
Straightway-solder - 10 0.07 1.01 1.2 020-1015
NRVH 10s Straightway-solder 1/2 - 0.3 4.35 1.2 020-1046
Straightway-solder - 12 0.3 4.35 1.2 020-1036
NRV 10s 1) Straightway-solder 1/2 - 0.07 1.01 1.2 020-1058
Straightway-solder - 12 0.07 1.01 1.2 020-1051
NRVH 10s 1) Straightway-solder 1/2 - 0.3 4.35 1.2 020-1070
Straightway-solder - 12 0.3 4.35 1.2 020-1063
NRV 12s Straightway-solder 1/2 - 0.05 0.72 2.05 020-1012
Straightway-solder - 12 0.05 0.72 2.05 020-1016
NRVH 12s Straightway-solder 1/2 - 0.3 4.35 2.05 020-1039
Straightway-solder - 12 0.3 4.35 2.05 020-1037
NRV 12s 1) Straightway-solder 5/8 16 0.05 0.72 2.05 020-1052
NRVH 12s 1) Straightway-solder 5/8 16 0.3 4.35 2.05 020-1064
NRV 16s Straightway-solder 5/8 16 0.05 0.72 3.6 020-1018
NRVH 16s Straightway-solder 5/8 16 0.3 4.35 3.6 020-1038
NRV 16s 1) Straightway-solder - 18 0.05 0.72 3.6 020-1053
NRVH 16s 1) Straightway-solder - 18 0.3 4.35 3.6 020-1065
NRV 16s 1) Straightway-solder 3/4 19 0.05 0.72 3.6 020-1059
NRVH 16s 1) Straightway-solder 3/4 19 0.3 4.35 3.6 020-1071
NRV 19s Straightway-solder - 18 0.05 0.72 5.5 020-1017
NRVH 19s Straightway-solder - 18 0.3 4.35 5.5 020-1008
NRV 19s Straightway-solder 3/4 19 0.05 0.72 5.5 020-1019
NRVH 19s Straightway-solder 3/4 19 0.3 4.35 5.5 020-1023
NRV 19s 1) Straightway-solder 7/8 22 0.05 0.72 5.5 020-1054
NRVH 19s 1) Straightway-solder 7/8 22 0.3 4.35 5.5 020-1066
1) Oversize connections.                                                                                                                                                         3)The Kv / Cv value is the flow of water in [m3/h – gal/min] at a pressure drop across valve of 1 bar / 14.5 psig. ρ = 1000 kg/m3- 2205 lbs/G.













What can I get guarantee ?

_______________________________________________



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.
