SiC Oven 1400C High Temperature Black Silicon Carbide Tube

SiC Oven 1400C High Temperature Black Silicon Carbide Tube thumbnail-1
SiC Oven 1400C High Temperature Black Silicon Carbide Tube thumbnail-2
SiC Oven 1400C High Temperature Black Silicon Carbide Tube thumbnail-3
SiC Oven 1400C High Temperature Black Silicon Carbide Tube photo-1
SiC Oven 1400C High Temperature Black Silicon Carbide Tube photo-2
SiC Oven 1400C High Temperature Black Silicon Carbide Tube photo-3
US$ 20 - 80 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Band Heater
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Yancheng DragonPower Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Band Heater
Power Source Electric
Place of Origin Jiangsu, China
Brand Name DragonPower
Model Number LK-YM
Dimension(L*W*H) Custom Size
Weight Final Dimension
Voltage Custom-made
Power(W) Customer
Certification CE ROHS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

SiC oven 1400C High temperature black silicon carbide tube

Product Description



SiC oven 1400C High temperature black silicon carbide tubeDescription:

SiC oven 1400C High temperature black silicon carbide tube is one type of ceramic heating elements,which use six-party high purity green SiC powder as the main raw material.Silicon is recrystallized under 2200C high temperature to form finished materials.The using temperature up to 1450C under oxidation atmosphere,and constant working life up to 2000 hours.It is widely used in various high temperature electric furnaces and othe electric heating devices,such as in the industries of magnet,ceramics,powder metallurgy,glass,metallurgy and machinery,etc.

Protech silicon carbide SiC heater element is a kind of nonmetal high temperature electric heating element.It is made of selected super quality green silicon carbide as main material,which is made into blank,silicide under high temperature and re-crystallized. Max temperature 1600 deg C.


Because of silicon carbide use to the high temperature, high temperature resistance, oxidation resistance, corrosion resistance, fast temperature rising, long life, high temperature deformation is small, convenient maintenance and installation, etc. and good chemical stability.And automation control system supporting, get accurate constant temperature, and can according to the needs of the production process of automatic temperature adjustment by the curve. The use of silicon carbide heating is convenient, safe and reliable.



SiC oven 1400C High temperature black silicon carbide tubeTypes :




Diameter Length of hot zone Length of cold zone Overall length Range of resistance
8mm 100-300mm 60-200mm 240-700mm 2.1-8.6 ohms
12mm 100-400mm 100-350mm 300-1100mm 0.8-5.8 ohms
14mm 100-500mm 150-350mm 400-1200 0.7-5.6 ohms
16mm 200-600mm 200-350mm 600-1300 0.7-4.4 ohms
18mm 200-800mm 200-400mm 600-1600 0.7-5.8 ohms
20mm 200-800mm 250-600mm 700-2000mm 0.6-6.0 ohms
25mm 200-1200mm 250-700mm 700-2600mm 0.4-5.0 ohms
30mm 300-2000mm 250-800mm 800-3600mm 0.4-4.0 ohms
35mm 400-2000mm 250-800mm 900-3600mm 0.5-3.6 ohms
40mm 500-2700mm 250-800mm 1000-4300mm 0.5-3.4 ohms
45mm 500-3000mm 250-750mm 1000-4500mm 0.3-3.0 ohms
50mm 600-2500mm 300-750mm 1200-4000mm 0.3-2.5 ohms
54mm 600-2500mm 300-750mm 1200-4000mm 0.3-3.0 ohms









Product Application

Applications of SiC oven 1400C High temperature black silicon carbide tube



Thermoforming & Vacuum Forming Machines



PVC Pipe Belling / Socketing Machines



Hot Stamping Machines



Heat Therapy Equipment



Shrink Packaging





Construction and material of SiC oven 1400C High temperature black silicon carbide tube



Insulator: High thermal silicone carbide







Features of SiC oven 1400C High temperature black silicon carbide tube



1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.



2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature



3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.



4.     The radiation surface temperature uniformity: ≤15%



5.     Power error: ≤5%



6.     Cold insulation resistance: 500V mega meter >2m



7.     Thermal insulation resistance: 500V mega meter >0.5m



8.     The service life of >3000 hours





Products Pictures

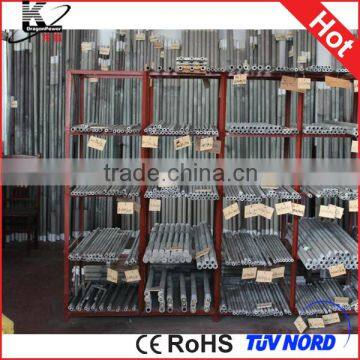

SiC oven 1400C High temperature black silicon carbide tube:

SiC oven 1400C High temperature black silicon carbide tubeSiC oven 1400C High temperature black silicon carbide tube





Packaging & Shipping

Packaging and Shipping of Ceramic Infrared Heater:



Packaging: Paper carton or wooden cases



Shipment: 1.small quantity by DHL,FEDEX  2.Bulk goods by Sea Freight. 3. Arranged to your order
