8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor

8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor thumbnail-1
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor thumbnail-2
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor thumbnail-3
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor thumbnail-4
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor photo-1
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor photo-2
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor photo-3
8hp YEMOO Semi-hermetic Piston Price of Small Refrigeration Screw Compressor photo-4
US$ 400 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, Compressor, refrigeration screw compressor
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO(refrigeration screw compressor)
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Compressor, refrigeration screw compressor
Place of Origin Zhejiang, China
Brand Name YEMOO(refrigeration screw compressor)
Model Number YMB4-080
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description



1. Features:



1) Introdution

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the refrigeration screw compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

   The refrigeration screw compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

   The refrigeration screw compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

  The refrigeration screw compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the refrigeration screw compressor and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.







Technical Data
Refrigerant Gas   R22 Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMB4-080 30 30700 25200 20450 16370 12800 9830 7320 5220
40           27100 22150 17840 14150 11000 8200 5920 4010
50           23450 19050 15250 11880 9050 6640 4610 2910



Refrigerant Gas R404A/R507A Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMB4-080 30 33050 27250 22200 17890 14170 10990 8300 6040 4150
40       27750 22800 18480 14760 11560 8830 6520 4580 2960
50       18350 14790 11710 9070 6800 4880 3260

 8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor



Model Motor Power HP/KW Displa-cement (50/60Hz)     M³/h quantity of cylinder x Diameter x Stoke (mm) Suction,Discharge valve take-over  Oil Injection Volume (L) Power supply    V/Ø/Hz Electrical Parameter Cran-kcase heater (220V)W Oil supply method Weight (Including freezing oil) kg
DL SL (A) Max operating current  (A) Stating current/ rotor locked current
YMB2-020 2/1.5 13.4 2×Φ50×39.3 φ16(5/8") φ22 (7/8") 1.5 220-240/380-420Y/3/5        •            265-290/440-480Y/3/60       11.9/6.9 53.7/30.7 120 Centrifugal lubrication 67.5
YMB2-031 3/2.2 13.4 2×Φ50×39.3 φ16(5/8") φ22 (7/8") 1.5 13.5/7.8 64/37 120 70.5
YMB2-030 3/2.2 16.2 2×Φ55×39.3 φ16(5/8") φ22 (7/8") 1.5 14.8/8.5 64/37 120 70
YMB2-041 4/3 16.2 2×Φ55×39.3 φ16(5/8") φ22 (7/8") 1.5 16.4/9.4 76.6/44.2 120 70
YMB4-030 3/2.2 18.1 4×φ41×39.3 φ16(5/8") φ22 (7/8") 2 15.9/9.2 76.6/44.2 120 82
YMB4-051 5/3.7 18.1 4×φ41×39.3 φ16(5/8") φ22 (7/8") 2 18.7/10.8 107.7/62.2 120 86
YMB4-040 4/3 22.7 4×φ46×39.3 φ16(5/8") Φ28 (1+1/8") 2 18.5/10.7 92.7/53.2 120 84
YMB4-061 5/3.7 22.7 4×φ46×39.3 φ16(5/8") Φ28 (1+1/8") 2 22.9/13.2 107.7/62.2 120 86
YMB4-050 5/3.7 26.8 4×φ50×39.3 Φ22 (7/8") Φ28 (1+1/8") 2 23.4/13.5 107.7/62.2 120 85.5
YMB4-071 7/5.1 26.8 4×φ50×39.3 Φ22 (7/8") Φ28 (1+1/8") 2 27.5/15.9 142.8/82.4 120 88.5
YMB4-060 6/4.4 32.5 4×φ55×39.3 Φ22(7/8") Φ28 (1+1/8") 2 27.5/15.9 142.8/82.4 120 90.5
YMB4-091 9/6.6 32.5 4×φ55×39.3 Φ22 (7/8") Φ28 (1+1/8") 2 34.5/20 142.8/82.4 120 90.5
YMB4-080 8/5.5 41.3 4×φ60×42 Φ28 (1+1/8") Φ35 (1+3/8") 2.6 380-420YY/3/50  •             440-480YY/3/60 17 49/81 120 134
YMB4-121 12/8.8 41.3 4×φ60×42 Φ28 (1+1/8") Φ35 (1+3/8") 2.6 24 69/113 140 141
YMB4-100 10/7.5 48.5 4×φ65×42 Φ28 (1+1/8") Φ35 (1+3/8") 2.6 21 59/99 140 139
YMB4-151 15/10.5 48.5 4×φ65×42 Φ28 (1+1/8") Φ42 (1+5/8") 2.6 31 81/132 140 147
YMB4-120 12/8.8 56.2 4×φ70×42 Φ28 (1+1/8") Φ35 (1+3/8") 2.6 24 69/113 140 141
YMB4-201 20/15 56.2 4×φ70×42 Φ28 (1+1/8") Φ42 (1+5/8") 2.6 37 97/158 140 150

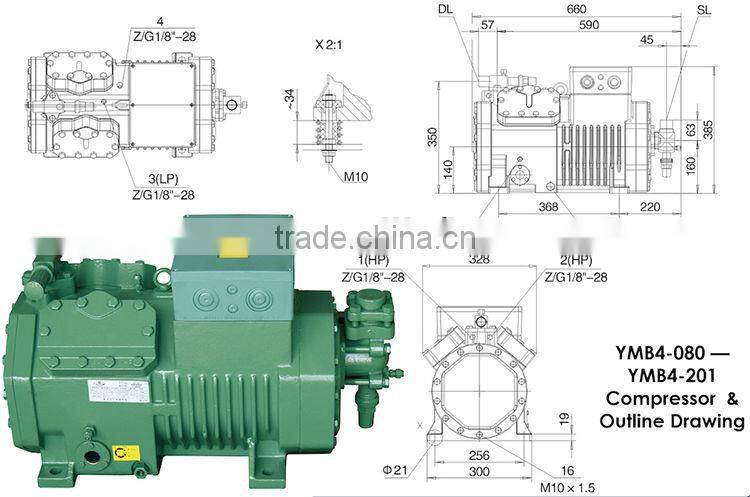

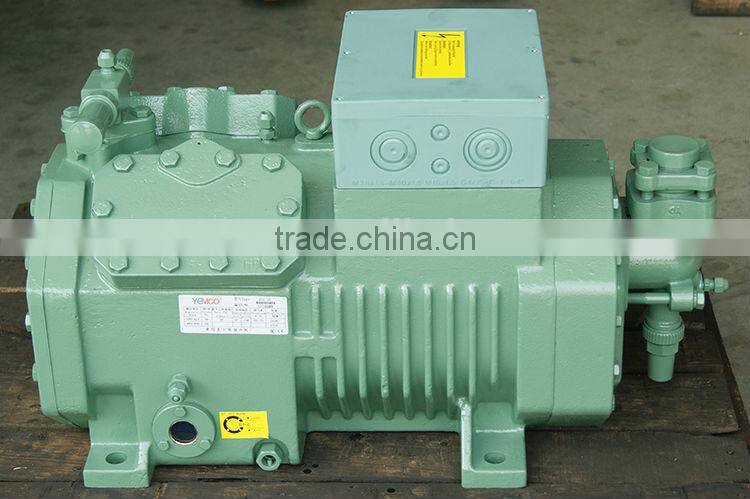

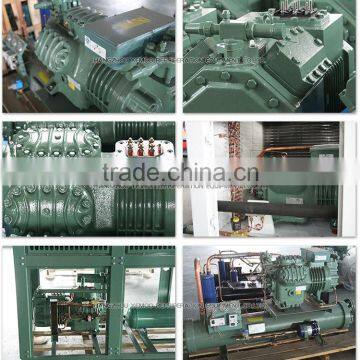

Detailed Images

  8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor













Packaging & Shipping













Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Certifications











Our workflow



8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor8hp YEMOO semi-hermetic piston price of small refrigeration screw compressor
