Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage

Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-1
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-2

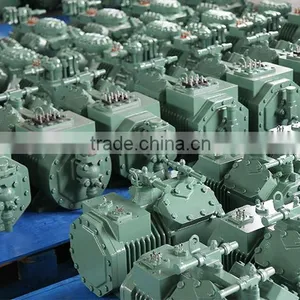

Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-3
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-4
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-5
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage thumbnail-6
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-1
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-2

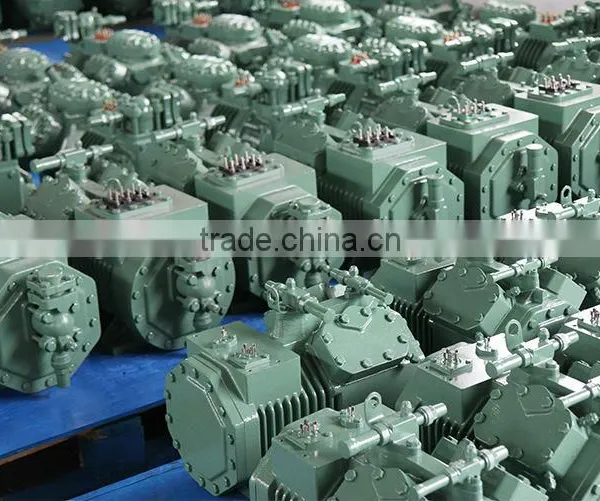

Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-3
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-4

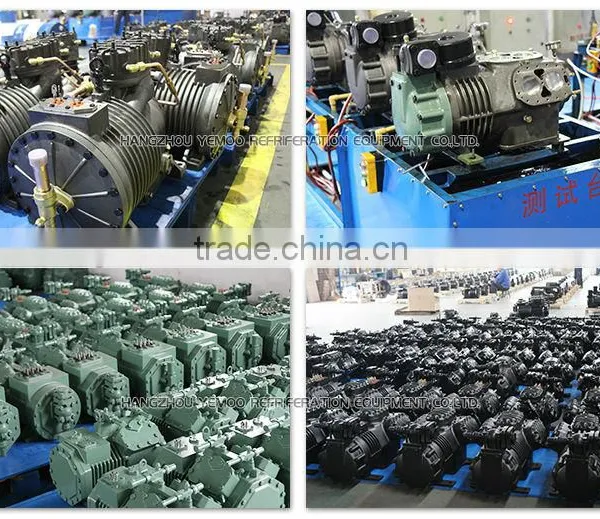

Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-5
Yemoo R134a Refrigeration Cold Storage Bitzer Compressor 110v for Fruit Storage photo-6
US$ 400 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Compressor
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Compressor
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMBC2-030E cold storage bitzer compressor
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description



1. Features:



1) Introdution

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

  cold storage bitzer compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

cold storage bitzer compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

cold storage bitzer compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and cold storage bitzer compressor  and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.







Technical Data
Model Condensing Temperature oC   Refrigerant gas :R22        Refrigerating Capacity QO (W)         Power Consumption Pe(KW)
 Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMBC2-031 30 Qo 17280 15860 14530 13290 11060 9120 7440 5990 4740 3670 2770
Pe 2.01 2.14 2.24 2.31 2.36 2.33 2.24 2.09 1.92 1.74 1.58
40 Qo 15400 14110 12910 11780 9750 7980 6450 5120 3970 3000 2160
Pe 2.89 2.92 2.93 2.92 2.84 2.69 2.50 2.28 2.06 1.86 1.70
50 Qo 13490 12320 11230 10220 8380 6780 5390 4190 3160 2270
Pe 3.64 3.59 3.52 3.44 3.23 2.98 2.72 2.45 2.20 2.00
YMBC2-030 30 Qo           11350 9290 7500 6390 5040 3890 2940 2160
Pe           2.85 2.74 2.56 2.40 2.15 1.91 1.70 1.49
40 Qo           9880 8010 6380 5400 4160 3140 2290 1600
Pe           3.32 3.07 2.79 2.56 2.27 2.00 1.74 1.47
50 Qo           8370 6680 5230 4450 3340 2430 1680
Pe           3.73 3.39 3.04 2.79 2.46 2.19 1.90





Model Condensing Temperature oC Refrigerant gas :R134a              Refrigerating Capacity QO (W)         Power Consumption Pe(KW)
 Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30
YMBC2-020E 30 Qo 11730 10680 9710 8810 7200 5820 4650 3660 2820 2120 1540
Pe 1.82 1.79 1.75 1.71 1.63 1.53 1.43 1.31 1.18 1.03 0.87
40 Qo 10320 9390 8530 7730 6300 5070 4030 3140 2390 1760 1240
Pe 2.15 2.11 2.06 2.01 1.89 1.76 1.62 1.46 1.28 1.09 0.88
50 Qo 8950 8150 7390 6690 5440 4360 3440 2660 1990 1430 970
Pe 2.47 2.41 2.35 2.28 2.13 1.96 1.78 1.58 1.36 1.12 0.86
YMBC2-031E 50 Qo 8930 8120 7370 6670 5420 4350 3430 2650 1990
Pe 2.41 2.35 2.29 2.22 2.07 1.91 1.74 1.54 1.33
60 Qo 7670 6980 6320 5720 4630 3700 2890 2210 1630
Pe 2.70 2.62 2.54 2.46 2.28 2.09 1.87 1.64 1.38
70 Qo 6460 5860 5310 4800 3870 3070 2390 1810 1310
Pe 3.00 2.90 2.80 2.70 2.49 2.25 2.00 1.71 1.41
YMBC2-030E 30 Qo 14820 13510 12290 11150 9130 7400 5920 4670 3610 2720 1980
Pe 2.19 2.15 2.11 2.06 1.95 1.83 1.69 1.54 1.37 1.19 1.00
40 Qo 13050 11880 10800 9790 8000 6450 5130 4010 3070 2270 1610
Pe 2.62 2.56 2.50 2.43 2.27 2.11 1.92 1.72 1.50 1.27 1.03
50 Qo 11340 10320 9370 8490 6910 5550 4390 3400 2570 1860 1280
Pe 302 2.94 2.85 2.76 2.56 2.35 2.11 1.86 1.60 1.32 1.02







Model Condensing Temperature oC Refrigerant gas :R404a-R507a     Refrigerating Capacity QO (W)         Power Consumption Pe(KW)
 Evaporating Temperature oC
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMBC2-020E 30 Qo 10110 8340 6810 5490 4360 3390 2570 1880 1300
Pe       2.72 2.59 2.43 2.25 2.05 1.83 1.59 1.35 1.09
40 Qo       8490 68980 5670 4530 3560 2720 2020 1420 920
Pe       3.15 2.94 2.7 2.44 2.17 1.88 1.58 1.28 0.98
50 Qo       6900 5640 4550 3600 2780 2080 1490 990
Pe 3.55 3.25 2.93 2.59 2.25 1.9 1.54 1.19
YMBC2-031E 30 Qo 15940 14630 12260 10200 8420 6870 5540 4400 3420 2590 1890
Pe 2.79 2.8 2.77 2.71 2.6 2.45 2.28 2.08 1.86 1.62 1.37
40 Qo 13510 12390 10380 8610 7080 5750 4600 3610 2760 2040 1430
Pe 3.49 3.44 3.32 3.16 2.96 2.74 2.49 2.21 1.92 1.62 1.31
50 Qo 11110 10180 8500 7030 5740 4630 3660 2820 2110 1510 1000
Pe 4.11 4.02 3.8 3.55 3.27 2.96 2.63 2.29 1.93 1.57 1.2
YMBC2-030E 30 Qo       12470 10290 8400 6780 5380 4190 3180 2330 1630
Pe       3.33 3.15 2.95 2.72 2.48 2.21 1.93 1.64 1.35
40 Qo       10510 8650 7040 5640 4440 3420 2550 1810 1200
Pe       3.85 3.58 3.29 2.98 2.65 2.32 1.97 1.62 1.27
50 Qo       8590 7050 5710 4550 3540 2690 1950 1340
Pe       4.35 3.98 3.60 3.21 2.80 2.39 1.98 1.57









Yemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storage



 Yemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storage

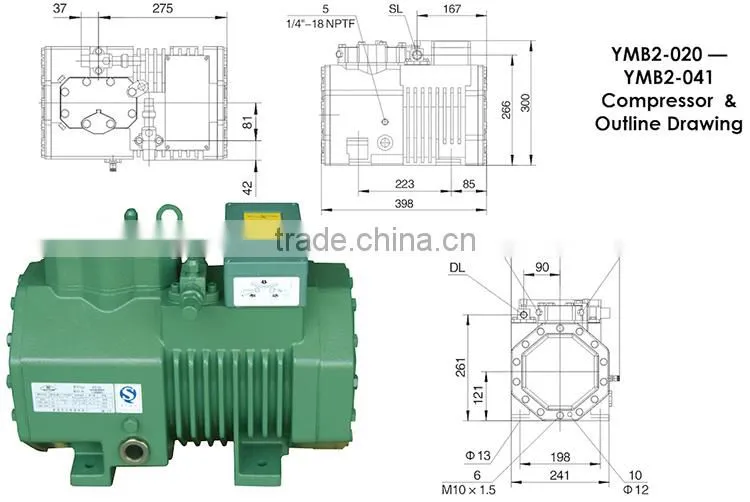

Detailed Images

 Yemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storage





 Yemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storageYemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storage







Packaging & Shipping













Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Certifications

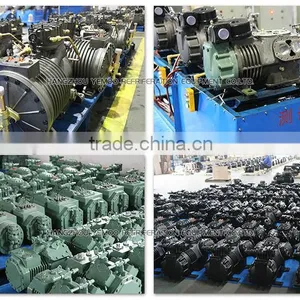

Our workflow



Yemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storageYemoo r134a refrigeration cold storage bitzer compressor 110v for fruit storage
