Yemoo Semi-hermetic Piston 15HP Refrigeration Compressor Bitzer R22 Compressor Manual for Cold Storage

Yemoo Semi-hermetic Piston 15HP Refrigeration Compressor Bitzer R22 Compressor Manual for Cold Storage thumbnail-1
Yemoo Semi-hermetic Piston 15HP Refrigeration Compressor Bitzer R22 Compressor Manual for Cold Storage photo-1
US$ 400 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Compressor
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Compressor
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMB4-150
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available

Specifications

Annual output 36,000 sets
12 months Guarantee
Spare parts can interchange to Original Bitzer and Copeland.



Product Description



1. Features:



1) Introdution

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

   The Compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

   The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

  The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.







Technical Data



Refrigerant Gas   R22 Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMB4-120 30           41150 33750 27400 21900 17210 12990 9600 6760
40           36650 29950 24150 19170 14910 11040 7960 5400
50           32050 26050 20850 16150 12280 8980 6200 3880
YMB4-201 30 79100 72600 66600 61000 50800 41900 34250 27600 21900 16980 12810
40 70600 64800 59300 54200 45000 37000 30100 24100 18920 14500 10750
50 61900 56700 51900 47400 39250 32150 26000 20650 16050 12130
YMB4-150 30           52300 42700 34450 27350 21300 16400 12000 8310
40           46850 38100 30500 24050 18500 13840 9800 6440
50           41700 33700 26800 20900 15800 11500 7920 4970
Refrigerant Gas R404A/R507A Refrigerating Capacity Q0 (W)
Model Condensing Temperature oC Evaporating Temperature oC
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMB4-120 30       44000 36250 29550 23750 18810 14580 11000 7980 5470
40       37300 30600 24800 19810 15510 11840 8740 6120 3950
50         24850 20000 15820 12210 9120 6510 4300
YMB4-201 30 71000 65100 54500 45250 37200 30250 24250 19070 14640 10860 7660
40 60500 55400 46250 38200 31250 25200 20000 15530 11730 8510 5820
50 49900 45650 37900 31100 25250 20150 15760 12010 8840 6180 3980
YMB4-150 30       58500 48400 39700 32200 25750 20250 15560 11630 8350
40       49850 41150 33600 27100 21500 16730 12660 9240 6380
50         33950 27600 22050 17330 13270 9820 6920



Yemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storage



 Yemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storage



Detailed Images

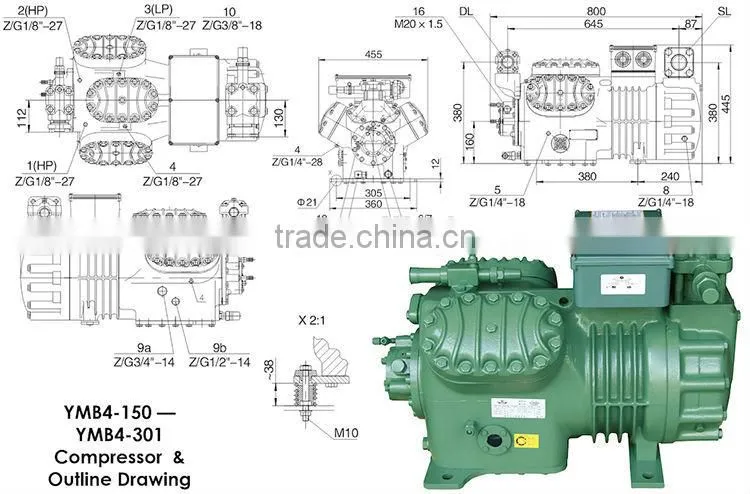

Yemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storageYemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storageYemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storage













Packaging & Shipping













Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Certifications











Our workflow



Yemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storageYemoo Semi-hermetic piston 15HP refrigeration compressor bitzer r22 compressor manual for cold storage
