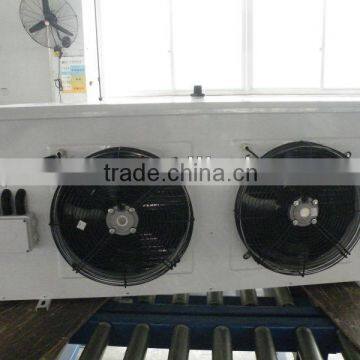

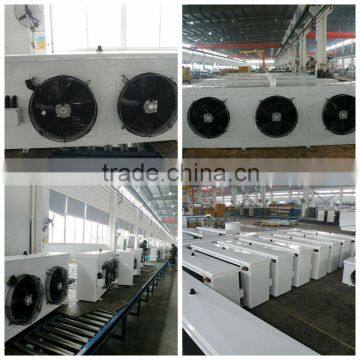

Help CenterYEMOO 11.4KW Cold Room Cooling System Small Refrigeration Air Evaporator for Food Storage
Related Products
-
YEMOO DD Series Heat Exchanger Evaporator Two Motors Cold Room Evaporator for Fruit StorageUS$ 200 - 2,000MOQ: 2 Pieces -
YEMOO -25 Degree Industrial Refrigeration Parts Small Evaporative Air Cooler Best Price on SaleUS$ 500 - 800MOQ: 1 Set
-
YEMOO DJ Series Chiller Evaporator Ice Maker Evaporator for Cold Room Food StorageUS$ 200 - 2,000MOQ: 2 Units
-
YEMOO DJ Series Portable Air Cooler Small Cold Room Mini Evaporative Air CoolerUS$ 200 - 500MOQ: 1 Set
-
YEMOO DL Series Small Evaporator Air Cooler Cold Storage Thermal Evaporator for SaleUS$ 500 - 1,000MOQ: 1 Set
Evaporative Air Cooler/Air cooled Evaporator For Cold Room
DL DD DJ series for your choice
DL : High temperature
DD : Medium temperature
DJ : Low temperature
Characteristics
evaporator unit :
1.Scientific structure evaporative air cooler, high efficient, frost steadily, save power and low running cost;
2.Evaporative air cooler is equipped with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;
3.Copper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;
4.Evaporative air cooler is equipped with stainless electric heater in high insulating property, defrost efficiently in shot time;
5.The heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.
6.Aluminum and painted stain board, to meet your different needs.
Sphere of application
High temperature type evaporator unit : (cold room temperature 12~-2oC)fin space:4.5mm;
Medium temperature type evaporator unit : (cold room temperature-2~-10 oC) fin space:6.0mm;
Low temperature type evaporator unit : (cold room temperature-10~-31 oC)fin space:9.0mm;
Attention of evaporator unit model selection
When the cold-room temperature is aroud 0 oC, select 8 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -18 oC select 7 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -25 oC, select 6 oC to be the difference between compressor evaporating temperature and cold-room temperature.
According to selected evaporating temperature, compressor’s capacity = the cold-room loading × 1.15.
| Model | Ref. capacity(KW) | Cooling surface (m2) | Fan | Defrost heater | Remark | |||||||
| Qty | Diameter Φ(mm) | Air flow (m2/h) | Air pressure (pa) | Shot range (m) | Power (W) | Coil (kW/PC) | Drip pan (kW) | Voltage (V) | ||||
| DD-012B | 2.2 | 12 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.36×4 | 0.36x2 | 380 | Water-defrosting type and customized are optional |
| DD-015B | 2.8 | 15 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.41×4 | 0.41x2 | 380 | |
| DD-022B | 3.7 | 22 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.58x4 | 0.58x2 | 380 | |
| DD-030B | 5.7 | 30 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.49x6 | 0.49x2 | 380 | |
| DD-040B | 7.5 | 40 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.51x8 | 0.51x2 | 380 | |
| DD-060B | 11.4 | 60 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.61x8 | 0.61x2 | 380 | |
| DD-080B | 15.2 | 80 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.81x8 | 0.81x2 | 380 | |
| DD-100B | 18.7 | 100 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 0.83x9 | 0.83x3 | 380 | |
| DD-120B | 22.4 | 120 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 1.0x9 | 1.0x3 | 380 | |
| DD-140B | 26.2 | 140 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1x9 | 1.1x3 | 380 | |
| DD-160B | 30 | 160 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1x11 | 1.1x3 | 380 | |
| DD-200B | 37.4 | 200 | 3 | 550 | 3×8720 | 90 | 15 | 3×600 | 1.2x13 | 1.2x3 | 380 | Axial fan |
| DD-250B | 46.8 | 250 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 1.1x15 | 1.1x3 | 380 | |
| DD-300B | 56.2 | 300 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 1.3x15 | 1.3x3 | 380 | |
| Remark | Cold room temp. -18oC ; t=7oC | |||||||||||
| Model | L | W | H | Installation size | Water tube (inch) | Connecting tube Φ(mm) | Weight (kg) | ||||||
| B | T | H | L | E1 | E2 | E3 | E4 | F | Inlet | Outlet | |||
| DL-040 | 1400 | 380 | 570 | 340 | 1080 | 540 | / | / | 135 | 1 | 16 | 28 | 57 |
| DD-030 | 56 | ||||||||||||
| DJ-020 | 54 | ||||||||||||
| DL-055 | 1450 | 380 | 670 | 340 | 1130 | 565 | / | / | 130 | 1 | 16 | 28 | 68 |
| DD-040 | 67 | ||||||||||||
| DJ-030 | 66 | ||||||||||||
| DL-080 | 1700 | 470 | 670 | 430 | 1370 | 695 | / | / | 130 | 1 | 16 | 35 | 96 |
| DD-060 | 95 | ||||||||||||
| DJ-040 | 94 | ||||||||||||
1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.
Yemoo's value is what we supply you is not only products,but also creating you most value.
