Industrial electric water heater :
An industrial electric water heater is a mechanism that heats a variety of fluid types — including water, oil, solvents, salts, plating baths and acids — used in industrial applications. Immersion heaters come in three varieties — over the side, flanged, and screw plug — and are installed in a tank or other vessel. With the heating element immersed in the fluid it’s warming, all of the heat is generated within the liquid and the immersion heater becomes almost 100 percent energy efficient.
The three major types of tank heaters include flanged, over-the-side, and screw plug. Flanged heaters are bolted to their container, and are the most permanent form of immersion water heater. Over-the-side heaters are named for the fact that they dangle over the side of the tank, which makes them more easily repositioned and removed. Screw plug heaters are plugged into the side of a tank, and are used for larger volumes of liquid. Both over-the-side and screw plug heaters come in many different designs, and they are also frequently used to heat liquids other than water.
Type: Flanged, over-the-side, and screw plug
Common voltage: 200V-220V-380V
Power: depend on sizes, 3KW-4.5KW-6KW-8KW-9KW-10KW-12KW-15KW-18KW-21KW, ect
Construction: Composed of 3, 6, or 9 U type tubular heater and flange, welding method: TIG argon arc
Advantage:
1. Small volume, high power
2. Can be used in any cases to heating all kinds of material, such as explosion-proof occasions
3. Heating temperature could reach 700°C
4. Heating system could be controlled automaticly, including controlling the heater by DCS system
5. Long lifetime, and with multiple protection system, safe to use
Applications:
C = Copper Sheath
Hot Water Storage for washrooms, showers, part washing or rinsing, freeze protection of sprinkler systems and cooling towers.
SA = 304 Stainless Steel
Tanks or processes with tar, asphalt, wax, heat transfer fluids, oil and other petroleum products, fuel oil, alcohol, caustic, and other "heavy" mediums.
SB = 316 Stainless Steel
Detergent based cleaning solutions, liquid ammonia, vegetable oil, Deionized water, electroless nickel and other alkaline plating solutions.
T = Titanium
Seawater, brine, chromic acid, Deionized water.
N = Incoloy ®
Air and many gases, Deionized water and other high temperature processes.
TF = Teflon ®
Hydrofluoric acid,ammonia bi-fluoride, Deionized water.
Installation Recommendations
- Select the heater size best suited for your application.
- Choose the appropriate watt density for the solution.
- Choose the proper sheath for the solution being heated to avoid corrosion.
- Uniform heat distribution in larger tanks is enhanced by the use of several heaters rather than one large heater.
- Protect heaters and tank against liquid level drops with safety controls.
- Clean heaters periodically to avoid premature failure.
- Avoid physical damage to heaters.
- Mount all heaters securely.
- Use the appropriate terminal box for each application.
- Select an appropriate temperature control.
- Electrical wiring should be in accordance with national and local codes.
- Contact us for any sales or service questions or problems.
Note:
- Heaters available with special wattage and voltage.
- Excellent selection for vapor degreasing systems.
- Low watt density for oil heating.
- Easily installed with a wrench.
- Thermostat control available.
- Excellent choice for jacketed process tanks.
- Provides freeze protection in outdoor environment.
- UL Listed / CSA Certified up to 18 KW, 600 VAC.
- Applied for pipeline heating.
- Prompt delivery.
- 100% Utilization of energy.
- Minimum resistance to free flow and circulation to heated solutions.
- Electropolish available.
Plywood case or paper carton.
Customized service
One year warranty period
Professional purchasing guid
Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

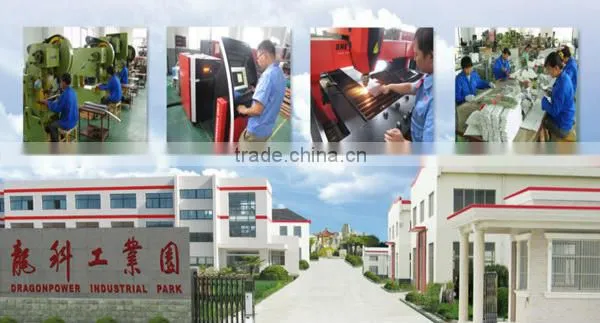

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.
DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.
Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.
Order Guide:
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
