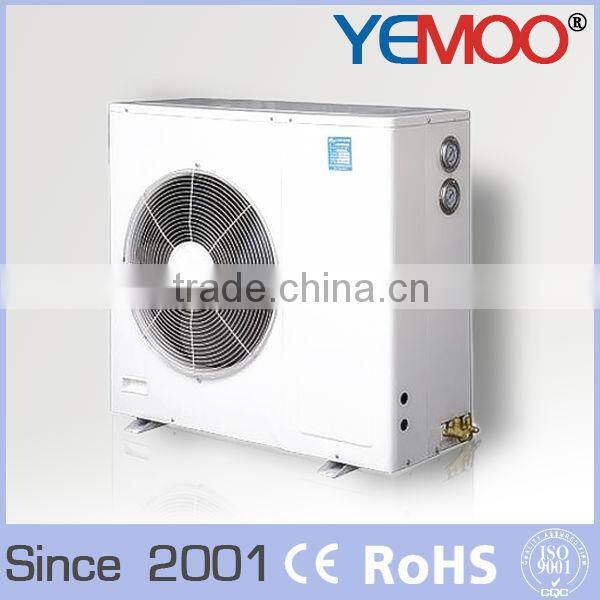

YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room

YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room thumbnail-1
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room thumbnail-2
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room thumbnail-3
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room thumbnail-4
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room thumbnail-5
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room photo-1
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room photo-2
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room photo-3
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room photo-4
YEMOO 3hp Mini Copeland ZB Compressor Condensing Unit for Small Cold Room photo-5
US$ 500 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Refrigeration unit, 3hp condensing unit for cold room
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Refrigeration unit, 3hp condensing unit for cold room
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMZB-030M (3hp condensing unit for cold room)
Certification CE
After-sales Service Provided Overseas third-party support available



Product Description



Characteristics:



1. Save labor---plate work structure, well formed, light weight, saving labor.

2. Save time---Connecting tube adopt bell like mouth, more convenient for connecting, can save 50% of installation time, as easy as install air conditioner.

3. Save space---new type of thin-wall design, can install back by wall and save space.

4. Mute refrigeration technology---units' fans are designed in a big angle, pit impressing and other mute technology. Copeland hermetic compressor, safe and low noisy.

5. Anticorrosive galvanized sheet steel which experienced strict salt spray test, with additional spray coating, suitable for bad weather environment.

6. Equipped with copeland ZB screw compressors, dependable, high efficient, low noise and little vibration.

7. Equipped with check valve in inlet and outlet, easy for installation and maintain.

8. Various brand of compressor for your choice.

9. Fits different refrigerant: R134a, R404a, R507a and R22.





Range of application:



1. Refrigeration industry, cold room project.

2. Agricultural, food, restaurant, chemical industry.

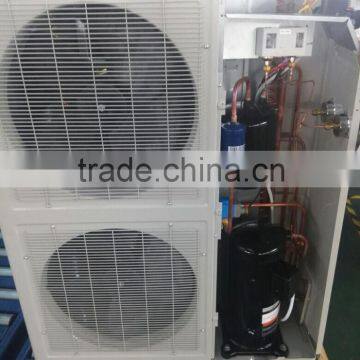

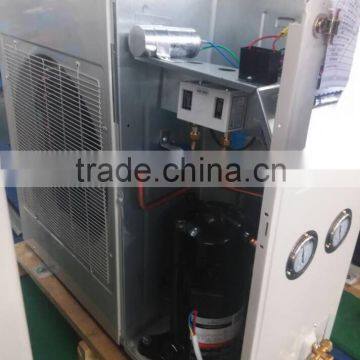

Detailed photos

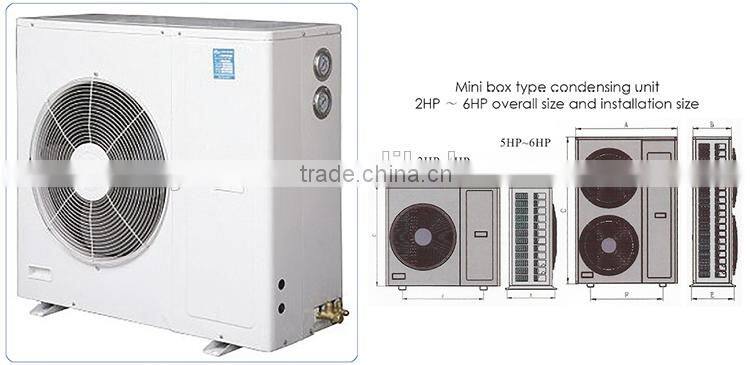

YEMOO 3hp mini copeland ZB compressor condensing unit for small cold room





YEMOO 3hp mini copeland ZB compressor condensing unit for small cold room



Technical data



Model Titular Power Condensing TemperatureoC Refrigerating Capacity QO (W)
Evaporating Temperature oC
-12 -5 0 5 10
YMZB-020M 2HP 30 3550 4700 5650 6700 7850
40 3200 4250 5250 6100 7250
50 2650 3800 4550 5450 6500
YMZB-030M 3HP 30 5200 6850 8200 9700 11450
40 4650 6200 7450 8900 10500
50 3800 5500 6650 7950 9450
YMZB-040M 4HP 30 6950 9200 11000 13000 15350
40 6250 8300 10000 11900 14100
50 5100 7400 8900 10650 12700
YMZB-050M 5HP 30 8650 11400 13650 16150 19050
40 7750 10300 12400 14800 17550
50 6350 9200 11050 13250 15750
YMZB-060M 6HP 30 10450 13700 16400 19500 23100
40 9450 12500 14950 17800 21100
50 7650 11100 13400 16000 18950
YMZF-030M 3HP 30 1590 2010 2500 3100 3800
40 1460 1840 2300 2840 3500
50 1340 1690 2100 2590 3150
YMZF-040M 4HP 30 1970 2490 3100 3800 4650
40 1810 2290 2850 3500 4300
50 1650 2070 2580 3200 3900
YMZF-050M 5HP 30 2790 3500 4400 5400 6650
40 2570 3250 4050 5000 6100
50 2330 2950 3650 4550 5550
YMZF-060M 6HP 30 3250 4100 5150 6400 7900
40 3000 3800 4750 5900 7250
50 2680 3400 4300 5350 6550







                     Model Fan Motor Power                       Fan Motor Oper. Current              Evaporating Temperature             Dimension                           Installation Size            Connecting Pipe     Weight
Long Width Height Long Width Suction Liquid
(W) (A) (oC) (mm) (mm) (mm) (mm) (mm) Ø(Inch) Ø(Inch) (KG)
YMZB-020M 60 0.26 10 ~ -20 950 350 840 580 390 5/8  3/8 70
YMZB-030M 60 0.26 950 350 840 580 390 5/8  3/8 75
YMZB-040M 60x2 0.26x2 950 350 840 580 390 3/4  3/8 86
YMZB-050M 60x2 0.26x2 950 350 1240 580 390 3/4  1/2 90
YMZB-060M 60x2 0.26x2 950 350 1240 580 390 3/4  1/2 90
YMZF-030M 60 0.26 950 350 840 580 390 5/8  3/8 70
YMZF-040M 60 0.26 950 350 840 580 390 5/8  3/8 75
YMZF-050M 60x2 0.26x2 950 350 840 580 390 3/4  3/8 86
YMZF-060M 60x2 0.26x2 950 350 1240 580 390 3/4  1/2 90



Packaging & Shipping





Certifications







Our workflow

YEMOO 3hp mini copeland ZB compressor condensing unit for small cold room

YEMOO 3hp mini copeland ZB compressor condensing unit for small cold room
