Industrial heating element
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Industrial heating element | |
| Power Source | Electric | Place of Origin | Jiangsu, China | |
| Brand Name | DRAGONPOWER | Model Number | LK-XX | |
| Dimension(L*W*H) | Customized | Weight | Customized | |
| Voltage | 6V-550V | Power(W) | Customized | |
| Certification | ISO9001,CE (Tuv), RoHS | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

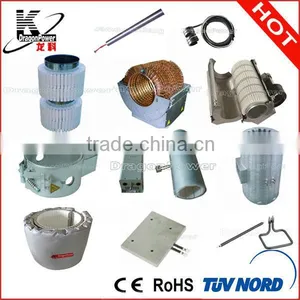

Industrial heating element:Mica/ceramic, cast aluminum/copper, induction, cartridge, tubular, immersion, infrared, coil heater
DragonPower also supplies energy saving heaters including induction heaters (save 30-80% energy) and heater insulation jackets (save 25-40% energy). These energy-saving heaters have brought to our customers following benefits.
1. Much faster pre-heating (heating up time is shortened by 1/3 to 1/2).
2. Significant saving on energy cost.
3. Make your factory a better place to work, esp. in summer (minimum heat loss to environment).
4. Better quality in plastic products (induction heating is more even).
Model | Diameter (mm) | Voltage(V) | Power(W) | Key Technical Indexes |
LK-DCGY-01 | 170 | 220 | 2000 | 1.Voltage: 220V-380V 2.Power: 2-50KW 3.Width of induction coils: 80-2000mm 4.Current: 5A-75A 5.Diameter of induction coils:≥80mm 6.MTBF(mean-time between failures:≥10000 hours 7.Work frequency: 10KHz-25KHz |
LK –DCGY-02 | 230 | 220 | 2000 | |
LK –DCGY-03 | 240 | 220 | 5000 | |
LK –DCGY-04 | 260 | 380 | 5000 | |
LK –DCGY-05 | 300 | 380 | 5000 | |
LK –DCGY-06 | 350 | 380 | 50000 | |
Note: Other models are available | ||||
Air cooling ceramic heater:
Plastic injection moulding machine
1. Hollow shaping machine/Blow-molding machine
2. Extrusion machine/Co-extrusion line
3. Raw material processing equipment
4. Pelletizing equipment
5. Granular machine
6. All types of plastics processing machines
Table
Model | Extr Model | Zone # | Dimension (mm) | Voltage(V) | Power(W) |
LK-FQTC-Φ250X255 | Twin-screw 58 | 1 | Φ250X255 | 3X400 | 8000 |
LK-FQTC-Φ200X175 | 3 | Φ200X175 | 230 | 2400 | |
LK-FQTC-Φ152/Φ140X310 | 4 | Φ152/Φ140X310 | 230 | 3600 | |
LK-FQTC-Φ305X295 | Twin-screw 68 | 1 | Φ305X295 | 3X400 | 1000 |
LK-FQTC-Φ245X215 | 3 | Φ245X215 | 230 | 3540 | |
LK-FQTC-Φ165/Φ185X365 | 4 | Φ165/Φ185X365 | 230 | 4600 | |
LK-FQTC-Φ217X190 | Twin-screw 45 | 1 | Φ217X190 | 230 | 4000 |
LK-FQTC-Φ123X220 | 3 | Φ123X220 | 230 | 2600 | |
LK-FQTC-Φ375X345 | Twin-screw 80 | 1 | Φ375X345 | 3X400 | 16000 |
LK-FQTC-Φ215/Φ195X430 | 4 | Φ215/Φ195X430 | 230 | 5930 | |
LK-FQTC-Φ350X360 | Twin-screw 92 | 1 | Φ350X360 | 3X400 | 18000 |
LK-FQTC-Φ250X290 | 5 | Φ250X290 | 3X400 | 4200 | |
LK-FQTC-Φ250/Φ210X510 | 6 | Φ250/Φ210X510 | 3X400 | 8600 | |
LK-FQTC-Φ75X162 | Single-screw 25 | Φ75X162 | 230 | 1400 | |
LK-FQTC-Φ90X220 | Single-screw 30 | Φ90X220 | 230 | 1500 | |
LK-FQTC-Φ130X280 | Single-screw 45 | Φ130X280 | 230 | 2200 | |
LK-FQTC-Φ140X325 | Single-screw 60 | Φ140X325 | 230 | 4000 | |
LK-FQTC-Φ150X420 | Single-screw 75 | Φ150X420 | 400 | 5000 | |
LK-FQTC-Φ175X460 | Single-screw 90 | Φ175X460 | 400 | 7000 | |
LK-FQTC-Φ200X550 | Single-screw 120 | Φ200X550 | |||
Cartridge heater:
Application:
1.Mold heating appliances
2.Tank, oil tank, acid tank
3.Fusible metal melting furnaces
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
Heating pipe used in showers, drinking fountains, water boilers, dishwashers, etc. The cartridge heater is widely apply to a variety of water tank, oil tank, acid tank, fusible metal melting furnaces, air furnace, oven, and various types of mold heating appliances.
Tubular heater:
Application:
1. Plastic processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
The tubular heaters are mainly used in aerospace, petrochemical, rubber and plastic industries, and the like. It can be used to heat still or flowing air, water, oil, nitrate, alkali and other kinds of liquid. It can also be used to melt light metal or to heat metal moulds. It has advantages such as simple structure, long lifetime, and high thermal efficiency, reliable and safe operation and so on.
Coil / spring / hot runner heater:
Coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available.
Dimensions:2,2 x 4,2 mm (min. Inside-Ø 8 mm) to 4,0 x 6,0 mm (min. Inside-Ø 24 mm)
Product picturers:
Plywood case or Paper carton.
Customized service
One year warranty period
Professional purchasing guid
Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.
Order Guide:
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
