HV Cable Accessories
Introduction:
64/110kV
Model No.: YJZWG4
Test Standard:
IEC60840
Each product will carry out the routine test in high-voltage lab of the company.
a. Partial discharge test b. Voltage withstand test

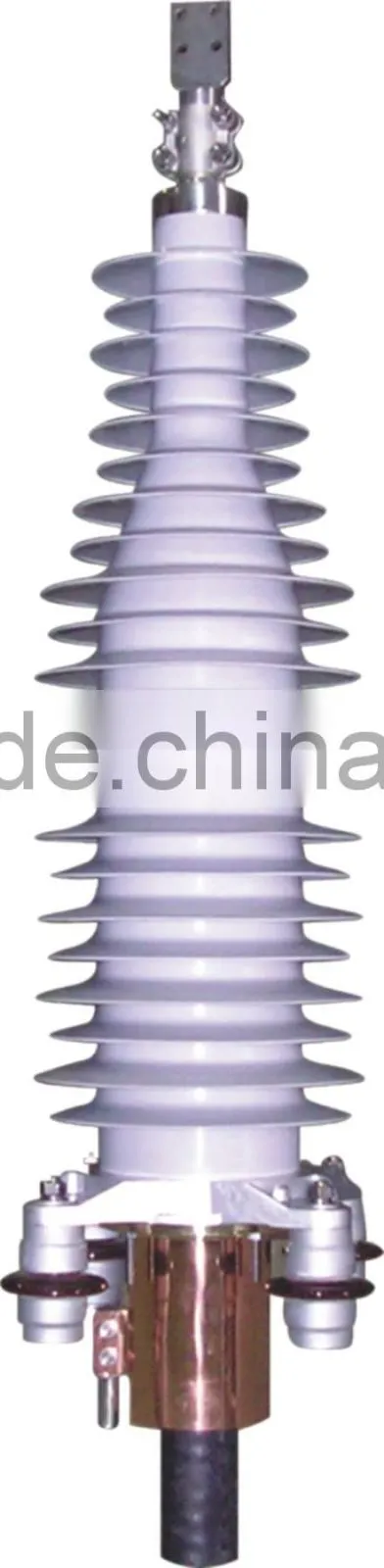

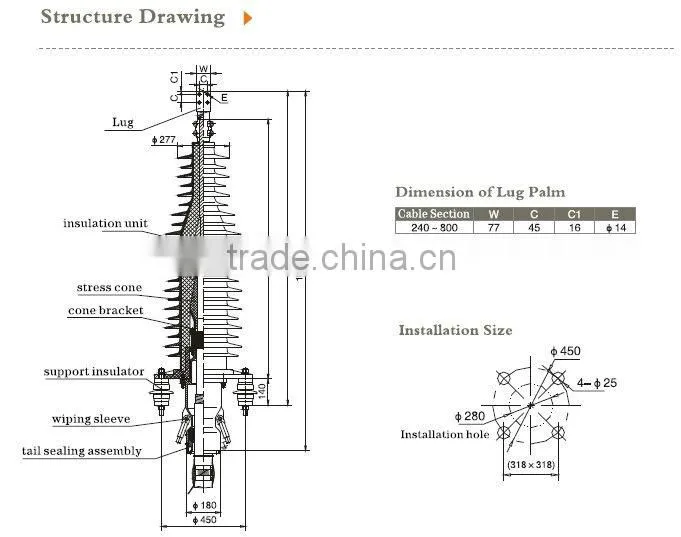

The product is suitable for XLPE cable indoor/outdoor termination. The ambient temperature: -40°C~40°C. The termination consists of imported EPDM stress cone, cone bracket, bushing, wiping sleeve and lugs.
The Main Feature:
The bushing is made of silicone rubber. It has the advantages of weather resistant, good anti-tracking, electrical corrosion and drain off water property.
The product adopt spring promoting cone bracket to make it localization to make the stress cone and the silicone oil separate by the stress cone cap, and to overcome evil of the stress cone spring loosing for the material age and bad contact between the stress cone and outer semi-conductor layer, pro-long the service life of the stress cone.
The top of the termination bushing adopt multi-seal to prevent leakage water and oil during running, prolong its service life.
The product have all the advantages of porcelain termination and no danger of exploration.
Plug-in type, Easy to install.
Rated voltage applicable cable dimension
110kV: 240-800mm2
When ordering, please state the following data:
1). Voltage
2). Conductor material copper or aluminum
3). Conductor cross section diameter
4). Diameter of insulation
5). Outer diameter of cable
Quality warranty & after sales service:
1. Secure production under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
3. Can provide service of installation or training your installation workers.
4. Service Life: 30 years
