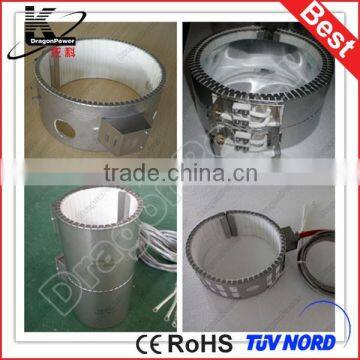

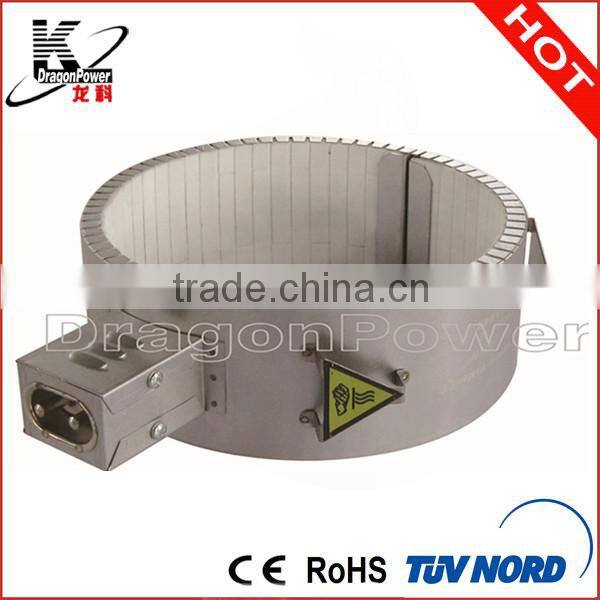

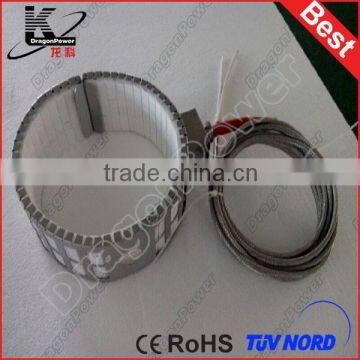

Half Circle Ceramic Band Heater
Description
Ceramic heater is mainly used for extrusion, casting and down-stroke machines. The operating temperature can reach up to 600°C. The maximum surface loading rate is 8 W/sqm.Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving (energy consumption is reduced by 30%), high resistance of high temperature creep, long lifetime, resistance of high temperature and high insulation rate. It is one of the most suiTable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.
Types Of Half Circle Ceramic Band Heater
Ceramic band heater without air blower (used outside)
|
|
Ceramic heater without air blower (used inside)
|
|
Air cooling ceramic heater with ceramic fins
|
|
Air cooling ceramic heater with copper fins
|
|
Air cooling ceramic heater without fins
|
|
Ceramic heating plate
Application Cases for Half Circle Ceramic Band Heater

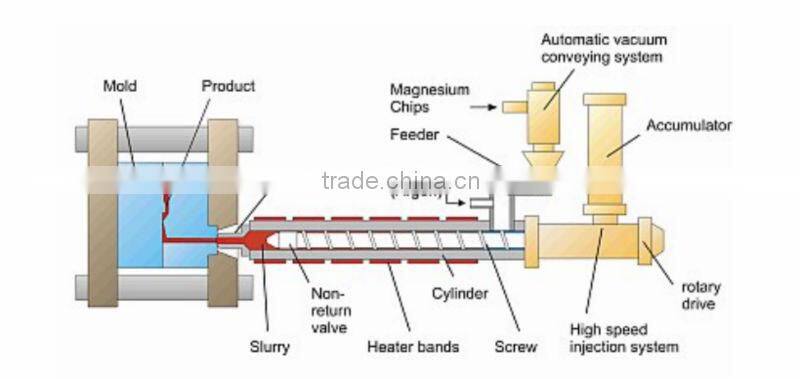

- magnesium injection molding (thixomolding)
- Plastic injection moulding machine
- Hollow shaping machine/Blow-molding machine
- Extrusion machine/Co-extrusion line
- Raw material processing equipment
- Pelletizing equipment
- Granular machine
,
Rigorous working and best after-sales services guarantee the first class quality for customers worldwide!
Our factory
Order Guide for Half Circle Ceramic Band Heater
Please specify the following when ordering.
- The inner diameter (mm) (or outer diameter when the heater is used inside) and length (mm) of heaters
- width of heaters
- Voltage and power density
- Position and size of the hole for thermocouple
- Wiring type and position
- Content of the stamping if needed
- Special gap if Necessary
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
