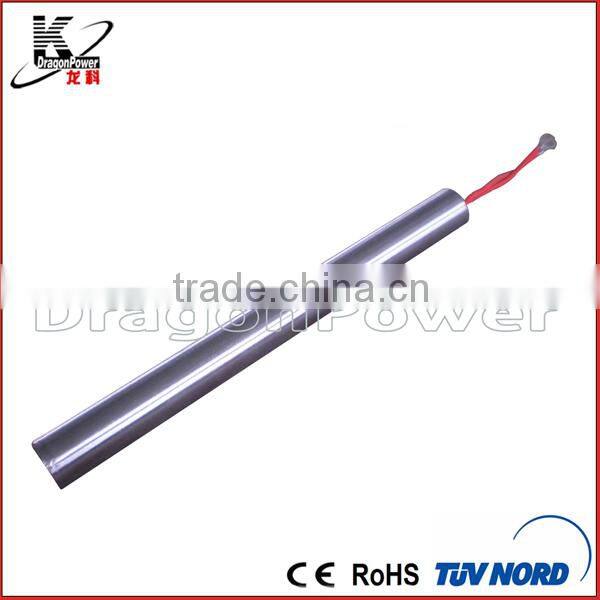

pencil heater with Connection Screws China made
230 Volts AC Stainless Steel Heat Rod with Connection Screws China made
are suitable for case when two-end w high power density bucket heater iring is impossible.Using high qualit seamless stainless steel tube,high temperature MgO powder and sealing material,thecartridge heaters can stand 900 degree C and are not easily damaged while dry-heating.Its other advantages include high heat efficiency,even heating,high temperature resistance,corrosion resistance,high safety and long usage life,CE &ISO9001 &Rohs certifications.

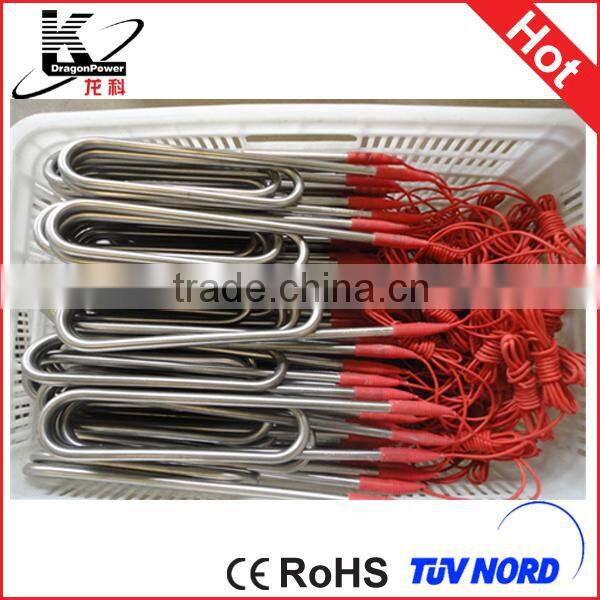

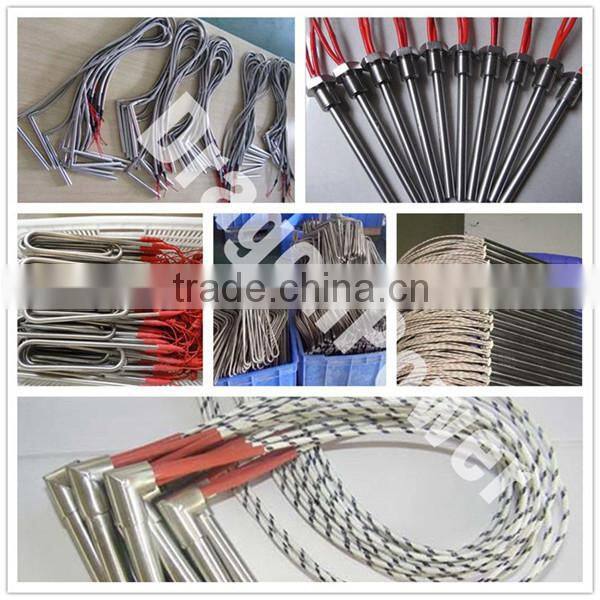

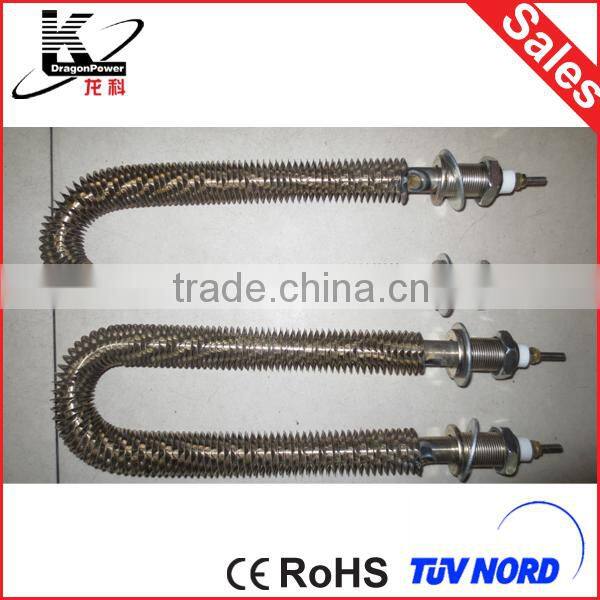

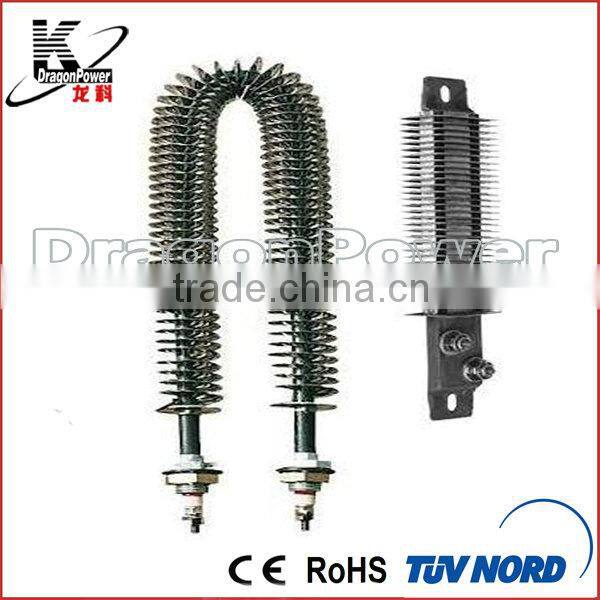

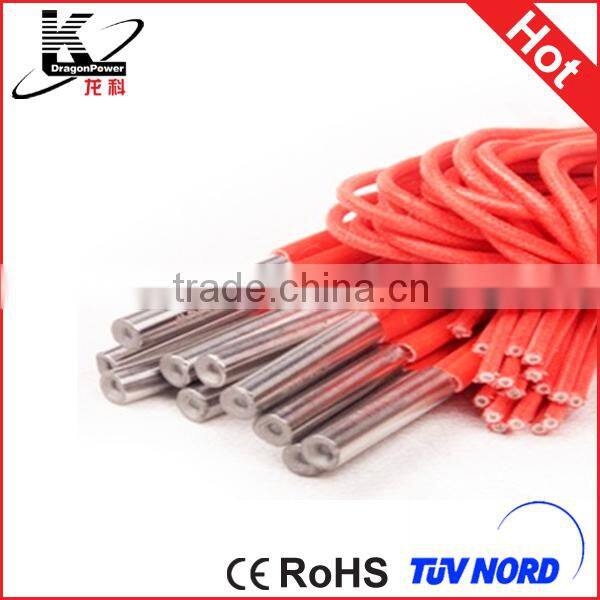

Photoes of Heating Rod
230 Volts AC Stainless Steel Heat Rod with Connection Screws Technical Indexes
| Use condition: | ENVIRONMENT TEMPERATURE-20~60 DEGREE C |
| Leakage current: | <0.5MA |
| INSULATION RESISTANCE: | ≥5M |
| GROUND RESISTANCE: | <0.1 |
| VOLATAGE RESISTANCE: | NO ELECTRIC BREAKDOWN FOR 1 MINUTE UNDER 1500V |
| TEMPERATURE ENDURANCE | 100-1200 DEGREE C |
230 Volts AC Stainless Steel Heat Rod with Connection Screws
relevant information:
Tube diameter: customized
Tube Material:SS304;SS316,SS321,NICOLOY800 etc
Insulation Material:High-purity Mgo
Reisistance wire element:Ni-Cr or FeCr
Lead Connection Option: Crimped or Swaged leads
Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone high temperature frberglass)
230 Volts AC Stainless Steel Heat Rod with Connection Screws
Applications:
Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries
Heating Rod Packaging details:
1. High Performance Electric Heating Rod, Heating Elements
standard package
Heating rod Shipping details:
1.small quantity by DHL,FEDEX etc
2.Bulk goods by Sea Freight.
Other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, heating rod,heating tubes,ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
*As it is difficult to see the internal construction of heating rod,it's better to provide us with the details or drawings/pictures.
