Finned heating element / armored
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
LK-DD-Φ15Χ80 |
Φ15Χ80 |
380 |
400 |
1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5M 4.Ground resistance:<0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
LK-DD-Φ20Χ155 |
Φ20Χ155 |
380 |
800 |
|
LK-DD-Φ16Χ200 |
Φ16Χ200 |
220 |
1000 |
|
LK-DD-Φ20Χ200 |
Φ20Χ200 |
220 |
1200 |
|
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Finned heating element / armored Specifications:
Diameter |
3mm to 30mm, etc. |
Length |
Customized |
Wire length |
Customized |
Leads type |
Direct line, SUS 304 braided, metal hose, etc. |
Voltage Supply |
12V to a maximum of 480V |
Total capacity |
customized |
Resistance Tolerance |
+10% - 5% (closer tolerances are available upon special request) |
Heating length |
Customized |
Sheath Material |
SUS 304/316/321 Incoloy 840 |
Insulation material |
Magnesium Oxide Powder |
Maximum Temperature |
800 °C |
Finned heating element / armored Applications:
- Food processing
- Plastic moulds
- Medical equipment
- Hot stamping
- Liquid immersion
- Packaging equipment
- Labeling & Sealing
- Dies & platens
- Injection molding
- Nuclear industry
- Car industry

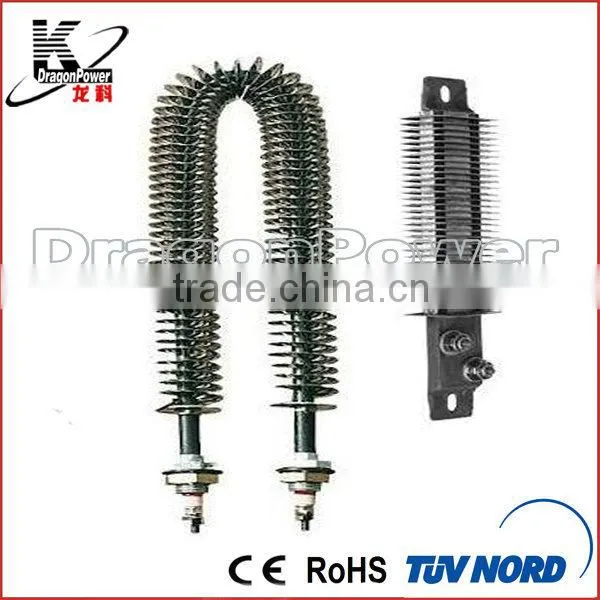

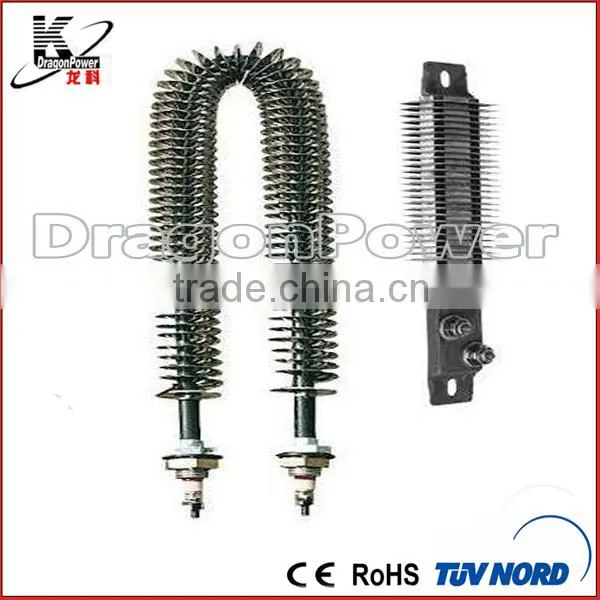

Finned heating element / armored Images:

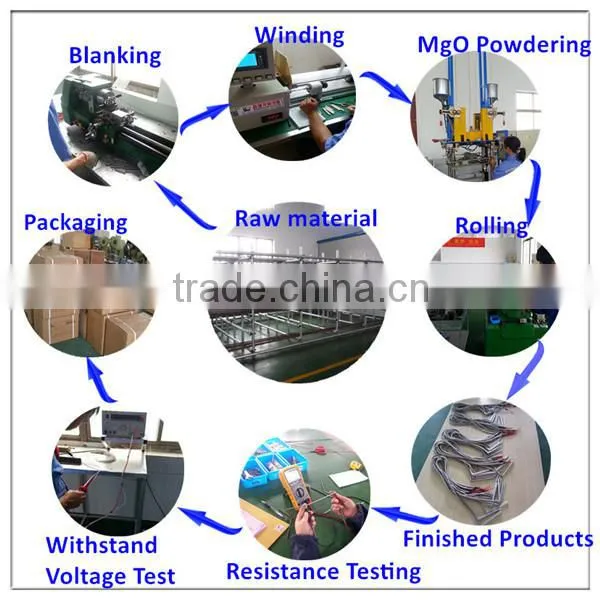

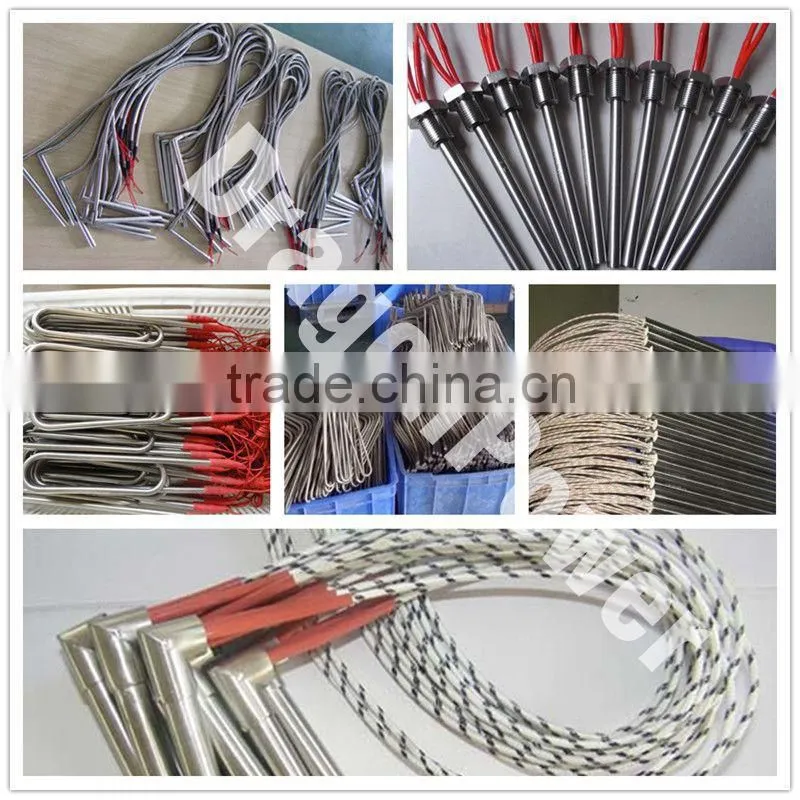

Finned heating element / armored Production:
DragonPower Exhibitions:
Order Guide
For Finned heating element / armored Orders, Please Specify:
1) Tube Diameter, Length, Volts/Watts
2) Material, Quantity
3) Lead option and length or terminal configuration, sheath material
4) Whether L shape
5) Heating length, working temperature, working environment
6) Lead end no-heat if different from standard
7) Optional accessories, finishing, internal construction
**Better to provide drawings/pictures
Company Information
DragonPowerspecializes in producing industrial electric heaters with more than 30 years’ history. Our products include cartridge heaters, tubular heaters, immersion heaters, air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, infrared heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
Centered by superior quality, motivated by technical innovation, and oriented by excellent services, DragonPower provides optimum heating solutions for different applications, to satisfy requirements of worldwide top class customers and fast-growing customers with great potential. It is ISO9001, CE and RoHS certified.
DragonPower has self import and export rights. The products are sold to Europe, America, Middle East, Australia, South East Asia, Taiwan etc. It has representative offices in Germany, the US and SEA, aiming to provide services for local customers.
Certificates:
Why choose us?
1) Quality is our culture.
2) Flexibility with minimum order requirements.
3) On-time delivery.
4) Free replacement if any product quality issues within guarantee period.
5) Technical support.
6) Simple ordering procedure: Email, fax or mail.
7) OEM and design service
