Home > Manufacturing & Processing Machinery > Mould > Mould Parts > Copper Heater of Heating Element for Extrusion and Casting Moulding Machine

Copper Heater of Heating Element for Extrusion and Casting Moulding Machine

Name: Copper Heater of Heating Element for Extrusion and Casting Moulding Machine
Brand: DragonPower
SKU: 110681577

Copper Heater of Heating Element for Extrusion and Casting Moulding Machine thumbnail-1

Copper Heater of Heating Element for Extrusion and Casting Moulding Machine photo-1

US$ 3 - 20 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

DragonPower

Model Number:

LK-ZT

Contact Supplier Request Quote Chat Now

Yancheng DragonPower Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DragonPower

Model Number LK-ZT

Specifications

1. Warranty: 2 years
2. High density
3. ISO9001, CE, RoHS
4. Manufacture price
5.industrial brass heater

Description:

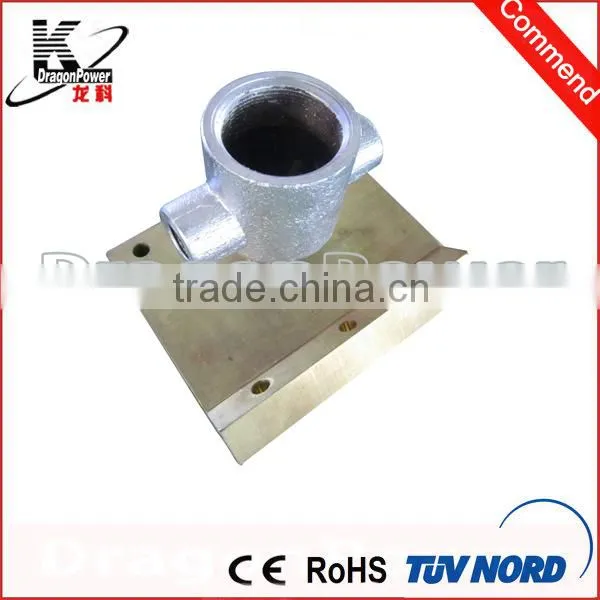

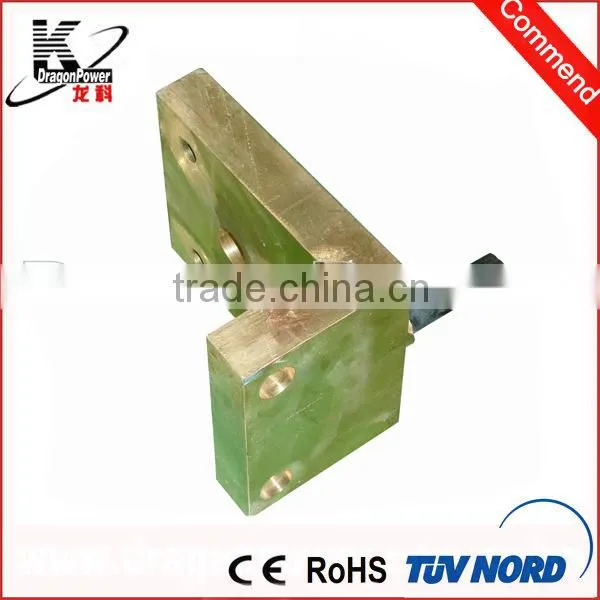

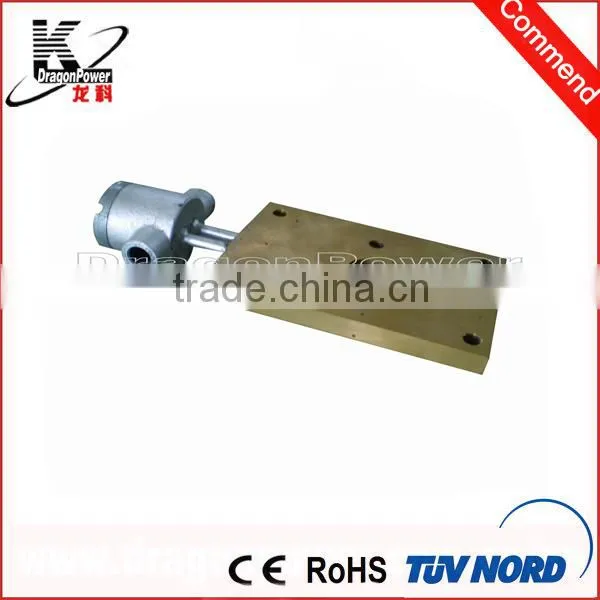

The cast copper/bronze/brass heaters are mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 650°C (bronze). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines.

Table:

*Model*	*Dimension(mm)*	*Voltage(V)*	*Power(W)*	*Key Technical Indexes*
LK-ZT-Φ360Χ180	Φ360Χ180	230	10000	1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current: <0.5MA 3.Insulation resistance: ≥8M 4.Ground resistance: <0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 500-900°C 7.Power deviation: +8%-8%
LK-ZT-Φ180Χ70	Φ180Χ70	250	2000
LK-ZT-Φ250Χ100	Φ250Χ100	380	4000
LK-ZT-Φ130Χ60	Φ130Χ60	220	1500
LK-ZT- L400Χ270	L400Χ270	250	6000
LK-ZT- L310Χ276	L310Χ276	230	4200
LK-ZT- L150Χ100	L150Χ100	240	1000
LK-ZT- L190Χ145	L190Χ145	480	1500
LK-ZT- L198XW140XH214	L198XW140XH214	250	7000
LK-ZT- L150XW110XH180	L150XW110XH180	250	4000
LK-ZT- L100XW52XH100	L100XW52XH100	230	1000
LK-ZT-Φ360Χ180	Φ360Χ180	230	10000
Note: Other models are available according to your specifications. Please refer to the Order Guide

Application:

1.Plastic injection moulding machine

2.Hollow shaping machine/Blow-molding machine

3.Extrusion machine/Co-extrusder

4.Raw material processing equipment

5.Pelletizing equipment

6.Granular machine

Company Information

DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:

1. Flexibility with minimum order requirements

2. On-time delivery

3. Free replacement if any product quality issues within guarantee period

4. Technical support

5. Simple ordering procedure: Email, fax or mail.

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.

DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.

Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.

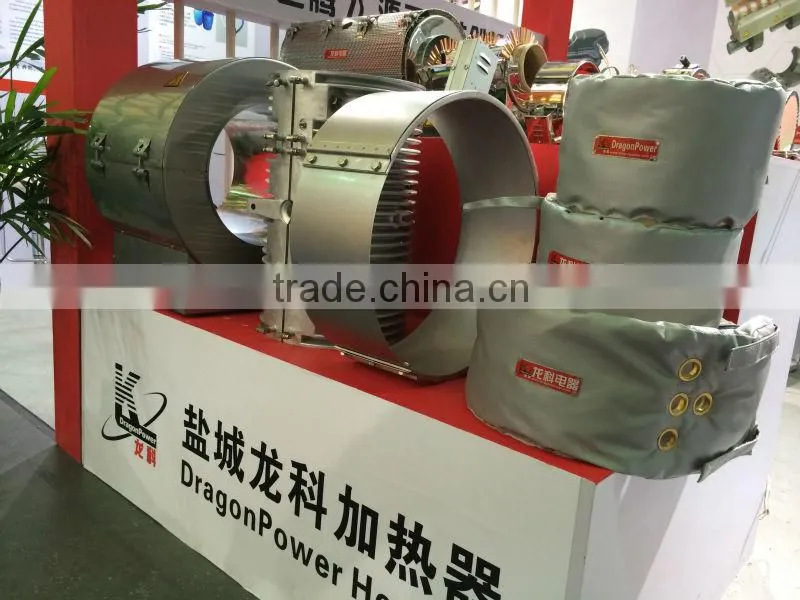

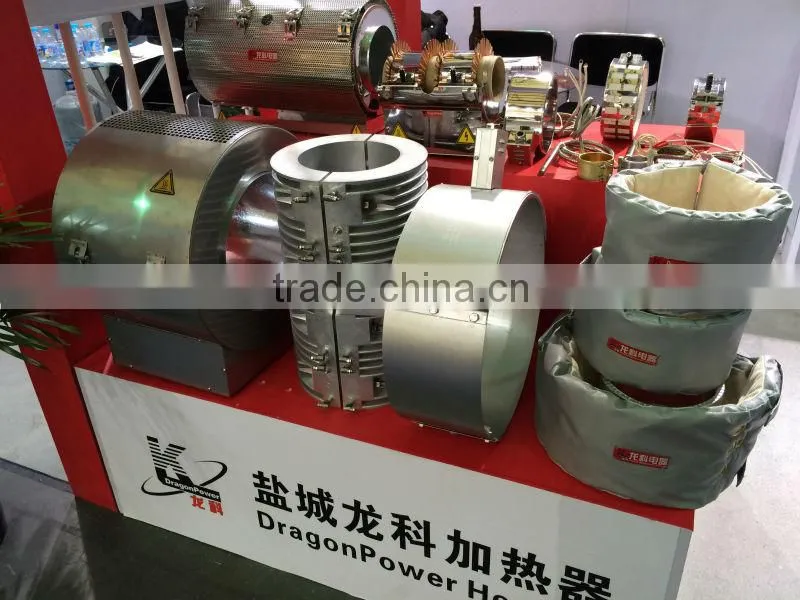

PICTURES FROM 2014CHINAPLAS:
