brass band heater /electric brass band heater for extruder molding machine

Specifications

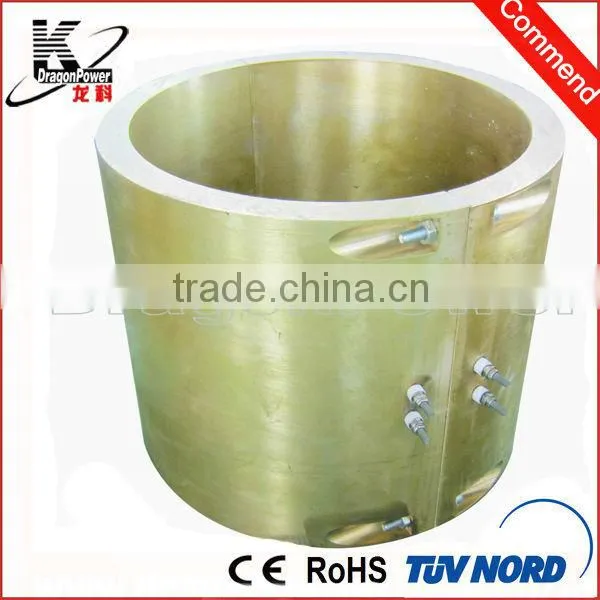

brass band heater
1. HIgh watt density
2. ISO9001, CE certified
3. Various sizes

Description: brass band heater

The cast copper/bronze/brass heaters are mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 650°C (bronze). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, etc. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines.

Model	Dimension(mm)	Voltage(V)	Power(W)
LK-ZT-Φ360Χ180	Φ360Χ180	230	10000
LK-ZT-Φ180Χ70	Φ180Χ70	250	2000
LK-ZT-Φ250Χ100	Φ250Χ100	380	4000

LK-ZT- L150XW110XH180	L150XW110XH180	250	4000
LK-ZT- L100XW52XH100	L100XW52XH100	230	1000
LK-ZT-Φ360Χ180	Φ360Χ180	230	10000

Note: Other models are available according to your specifications.

Please refer to the Order Guide

Packaging: brass band heater in plywood case outside if needed.

Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.



Other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.



 DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.

Order Guide

Please specify the following when ordering.

1. The inner diameter (mm) and length (mm) of heaters
2. Thickness of heaters
3. Terminal length (max & min) and the distance of terminal length
4. The diameter, length of cooling tubes and the distance between them.
5. Voltage and power density
6. Gap of two pieces if applicable
7. Wiring type and position
8. Whether need air blowers
9. Content of the stamping if needed
10. Order quantity
11. Delivery date

* It’s better to provide us with the drawings/pictures

Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
