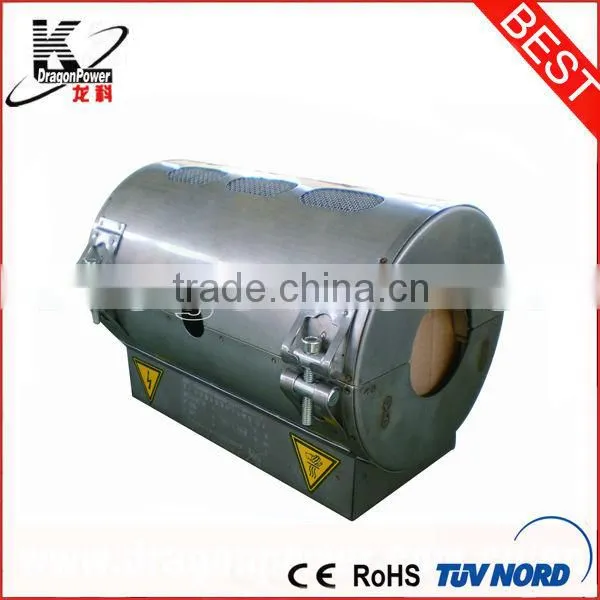

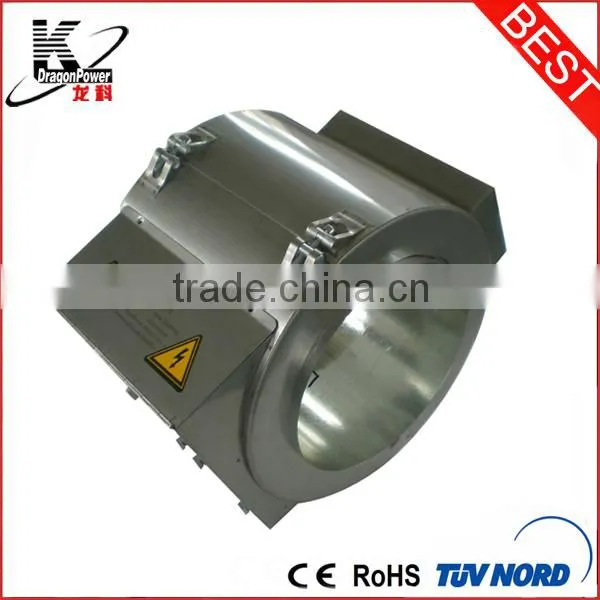

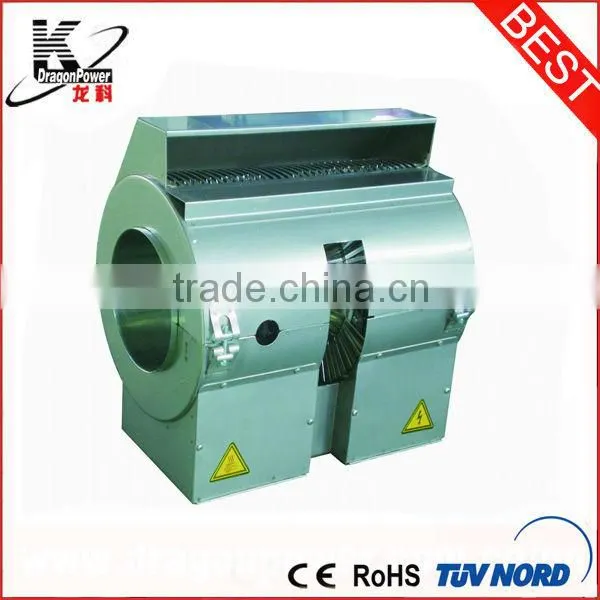

air cooling heater for extrusion machine/ari cooling aluminum heaters for sylinder of iinjection plastic machine

Specifications

air cooling heater
1. Ceramic insulation
2. Cr20Ni80 wire,SS304
3. ISO9001, CE, RoHS
4. Various size

Description: air cooling aluminum heaters

The heater is mainly used for extrusion and casting moulding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 300°C (Aluminium). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials. So it has advantages such as advanced technology, high heat retention, long lifetime, etc. The set can be connected with an air blower by a device with air outlet. It is widely used in plastic extrusion, chemical fibre, blowing moulding machines.



Application Cases

1.Plastic injection moulding machine
2.Hollow shaping machine/Blow-molding machine
3.Extrusion machine/Co-extrusion line
4.Raw material processing equipment
5.Pelletizing equipment
6.Granular machine
7.All types of plastics processing machines



Model	Dimension(mm)	Voltage(V)	Power(W)
LK-FZL-Φ180Χ480	Φ180Χ480	380	3000
LK-FZL-Φ220Χ514	Φ220Χ514	380	4000
LK-FZL-Φ200Χ80	Φ200Χ80	220	1000

LK-FZL-L260XW80XH80	L260XW80XH80	220	2000
LK-FZL-L280XW196XH250	L280XW196XH250	220	8000



Note: Other models are available according to your specifications.

Please refer to the Order Guide

 Packaging:air cooling aluminum heater in plywood case outside if needed.

Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.





Other services we are committed to offer include:



1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.



 DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.

Order Guide:

Please specify the following when ordering:

1. 1.         The accurate inner diameter (mm) of heaters (specify the tolerance zone if applicable)
2. 2.         Voltage and power density
3. 3.         The position and size of the hole for connecting thermocouple OR of the incision.
4. 4.         Wiring type and position
5. 5.         Whether need air blowers
6. 6.         Content of the laser stamping on the sheath of heaters if needed
7. 7.         Order quantity
8. 8.         Delivery date

* It’s better to provide us with the drawings/pictures
