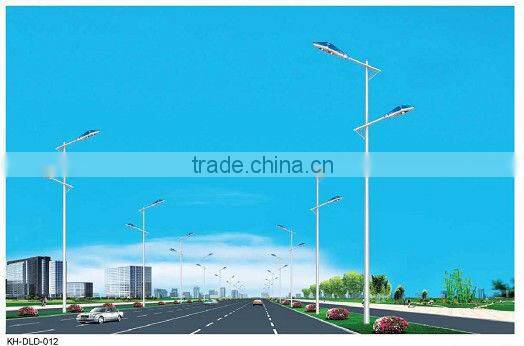

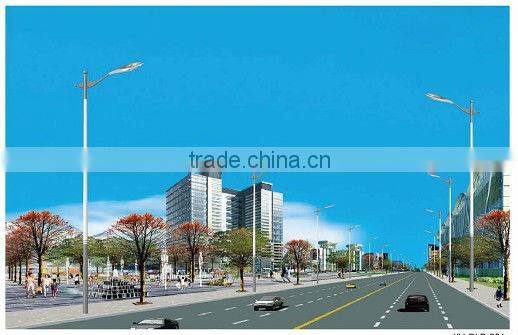

Help CenterLED Sloar Street Lights/6M Solar Linght
Related Products
Specifications
high-quality and satisfying products.We have got Certificates of ISO9001,CE,TUV,CCC,CQC,etc.Progress of solar street light system (KH - TYNLD6M)
(1) solar modules - 70 w, 70 w * 1 piece, or 35 w * 2 pieces)
1. The single crystal solar panels (grade A)
2. Open circuit voltage Voc: 21.5 V; Short circuit current Isc: 4.52 A
3. The optimal power point voltage Vmp: 17.5 V; Best power point current Imp: 3.99 A
4. The battery quantity: 36 pieces (4 * 9)
5. The most powerful Pm: 70 w
6. The battery conversion efficiency: 16.7%
7. Component size (mm) : 35, 546 * 1206 * or 801 * 821 * 30
8. The weight (KG) : 7.0
9. The largest system voltage: 1000 v DC
10. NOCT: 48 °C + 2 °C
2) special for solar battery -- -- -- -- -- 65 ah * 1 only
High-performance, 12 v 65 ah battery, maintenance free. Is the cathode waterproof fuse multiple strands of copper wire,
1. The internal impedance m Ω (or less) : 5.0
2. The size (mm) : 408 * 172 * 210 (L * W * H), total height: 236 mm
3. The discharge rate (AH) : 10 hr - 100; 20 hr - 105; 120 hr - 110
3) solar energy intelligent controller -- -- -- -- -- 10 a, 12 v / 24 v * 1 only
Automatic identification of constant current controller 12 v / 24 v, 10 a. had charge/discharge protection, power protection, electric/control protection, etc.
1. Voltage: 12 v
2. IP protection grade: IP67
3. The LED light source for optical/control
4. Weight: 150 g
5. Size (mm) : 200 * 155 * 45
6. The work temperature: 0 °C to 100 °C
4) the lamps and lanterns -- - 1 only
Novel and beautiful, there are all sorts of lamps and lanterns for your choice. (where the company offer here, for the common star light blue, and yellow, as I progress the patent of photoelectric lamps and lanterns, the price need another discussion)
5) LED light source: 21 w
1. 21 * 1 w LED lamp bead (Taiwan wafer chip)
2. The service life: more than 50000 H
3. The light efficiency: > 110 lm/W
4. Color temperature: 5000 k - 5000 k.
5. IP protection grade: IP 65
6. Color rendering index: Ra > 75
7. The total luminous flux: 2500 Lux
8. Efficiency of lamps and lanterns: > 80%
(6) wire quotation doesn't contain)
17 m 2 * 1.5 was, solar dedicated wire length.
7) buried box - 1 only
1. Size: 420 * 205 * 240 mm
2. The installation of box size: 500 * 500 * 1000 mm
3. NOTE: after the cement completely, at least 7 days, only can install lamp post, solar panels, and lamps and lanterns, etc.
8) 6 m light pole
1. High-quality carbon steel Q235
2. Hot dipped galvanized coating processing
3. The level of wind: 8-10
4. 6 m height:
5. Wall thickness: 3.0 mm
6. Diameter: the diameter 70 mm, the diameter is 140 mm
7. Flange: 14 *, 280 * 280 mm
8. The light pole for the tapered tube and selection of diameter tube
