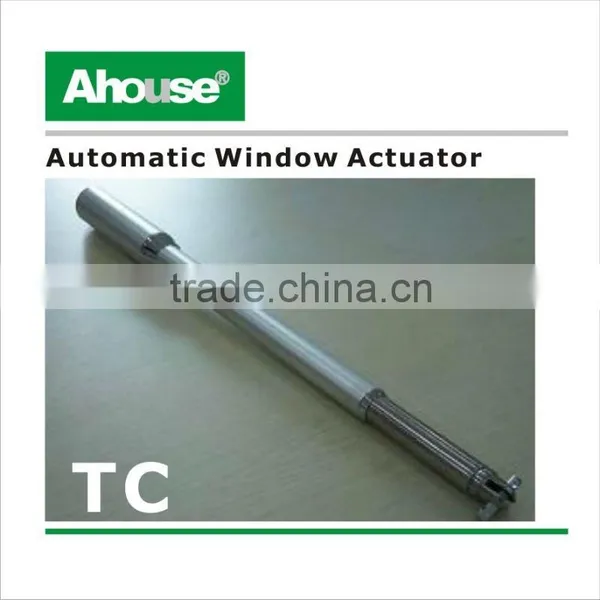

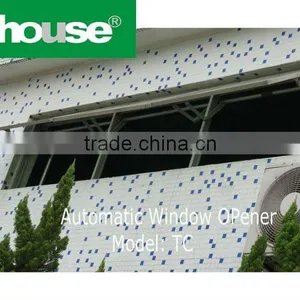

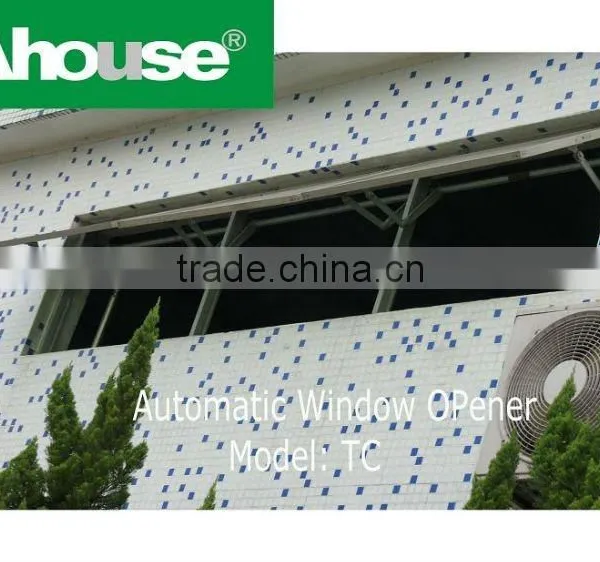

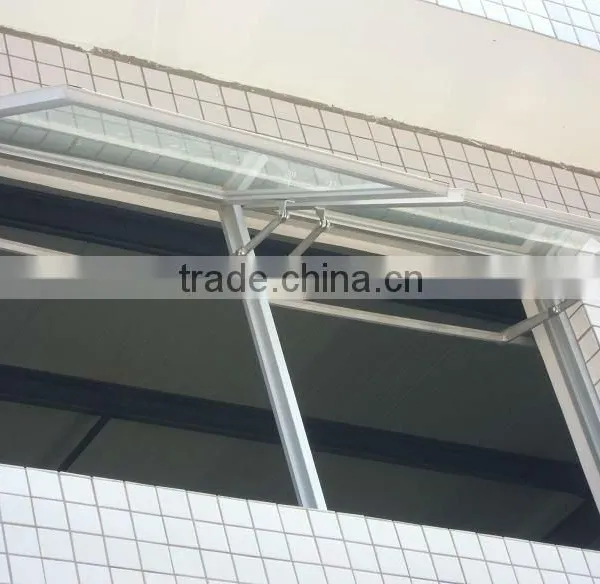

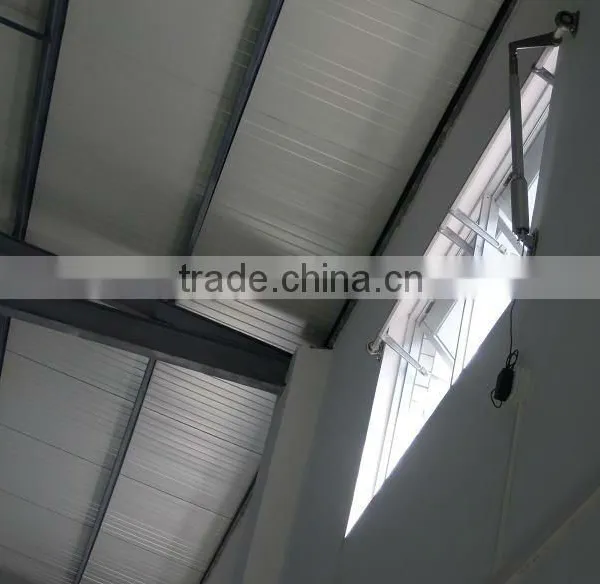

AHOUSE Greenhouse Window Opener Automatic Ware House Window Opener

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Ahouse
Model Number	TC

♣Description of automatic window actuator system:

1. DC 24V low voltage motor for maximum safety.

2. Piston stroke can be manually adjusted.

3. Build-in over current safety cut-off feature.

4. Suitable for all dimensions of vent window and roof light.

5. Build-in control system,easy installation.

6. Can be controlled by wall switch or remote control,control group by one remote control.

7. Various piston stroke to be selected.

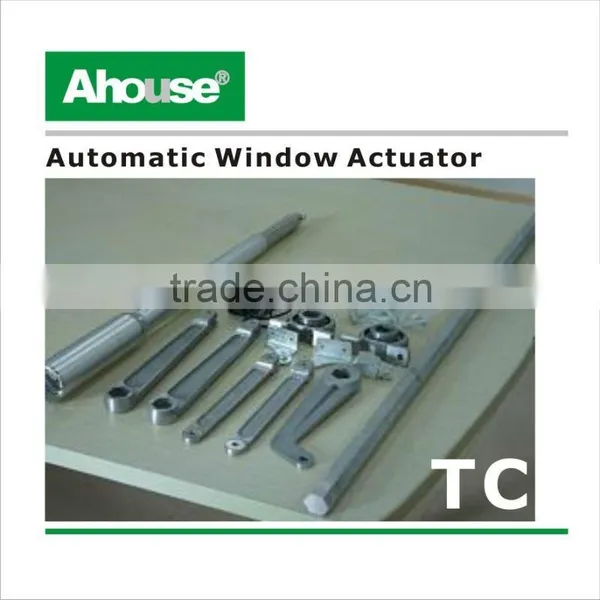

8. Complete supporting bracket kit,suitable for all window type.

9. Operating temperature:-25°C to +50°C.

♣Electrical:

Supply voltage	AC 110V-240V
Operating voltage	DC 24V
Safety detection	Over current detection
Optional device	Heat detector/smoke detector/push button/synchronizer
Controller	Build-in controller
IP rating	IP66

♣Mechanical:

Model	TC3	TC2
Max.piston stroke	300 mm	200 mm
Max.Length of motor	900 mm	720 mm
Max.force	1000 N	800 N
Frame housing	Stainless steel / aluminum alloy	Stainless steel / aluminum alloy
Driving Method	Screw driven piston type	Screw driven piston type
Opening degree	0 to 65 degree	0 to 65 degree
Stroke speed	30 mm/s	30 mm/s
Temperature	-25°C to +50°C	-25°C to +50°C

♣Transport type:

By ship.

By air.

By courier.
