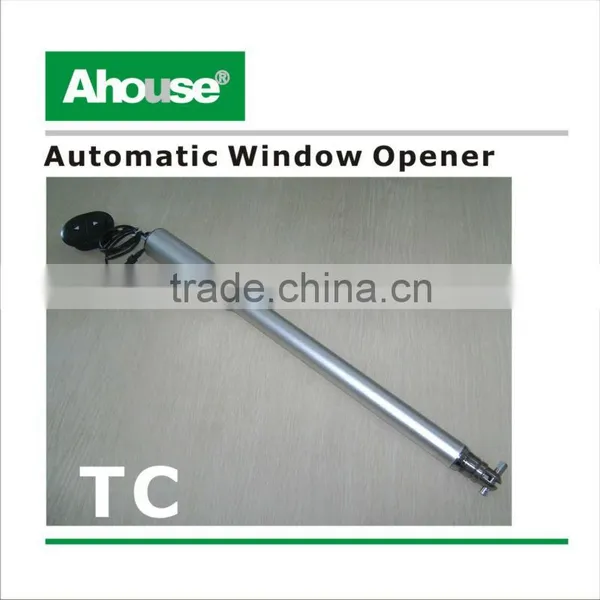

Ahouse Window Openers-TC
Main Feature:
1. DC 24V low voltage motor for maximum safety.
2. Piston stroke can be manually cut-off feature.
3. Build-in over current safety cut-off feature.
4. Suitable for all dimensions of vent window and roof light.
5. Build-in control system,easy installation.
6. Can be controlled by wall switch or remote control,control group by one remote control.
7. Various piston stroke to be selected.

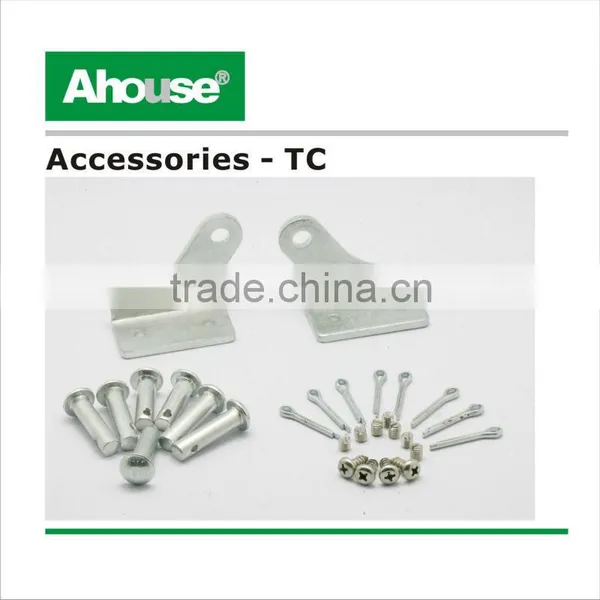

8. Complete supporting bracket kit,suitable for all window type.
| Electric: | |
| Power supply | AC 110V-240V |
| Operating voltage | DC 24V |
| Controller | Build-in controller |
| Safety detection | Over current detection |
| Optional device | Heat detector/smoke detector/push button/synchronizer |
| IP rating | IP66 |
| Mechanical: | |
| Model | TC3 |
| Max.piston stroke | 300mm |
| Max.length of motor | 900mm |
| Max.force | 1000 N |
| Frame housing | Stainless steel |
| Driving method | Screw driven piston type |
| Openign degree | 0~65 Degree |
| Stroke speed | 30mm/s |
| Temperature | -25°C to +50°C |
| Suitable for Window's Size and Weight: | |
| Height of window | 700mm |
| Width of window | 3000mm |
| Weight of window | 80kg |
The Benefits of using a Ahouse winodw actuator are:
DC24V motor with buil-in control board
Solar panel can be optional
Can be controled by remote control, push button,etc...
Compact, completely enclosed storage position.
Completely protected from weather when not in use.
Optional Wind Sensor.
The automatic window Operator meets the highest standards in safety. To begining with, the automatic window Operator series had met CE and IP66 standard. The diligent observation of safety standards ensures that window Opener not only meets satefy requirements, but also offers superior quality. Simplest and Safest installation instuction.
