Ahouse Window Actuator - (CE and IP66)
US$ 195 - 210
/ Set
20 Sets(Min. Order)
- Zhuhai or Guang Zhou
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ahouse | |
| Model Number | TC |
Product Description

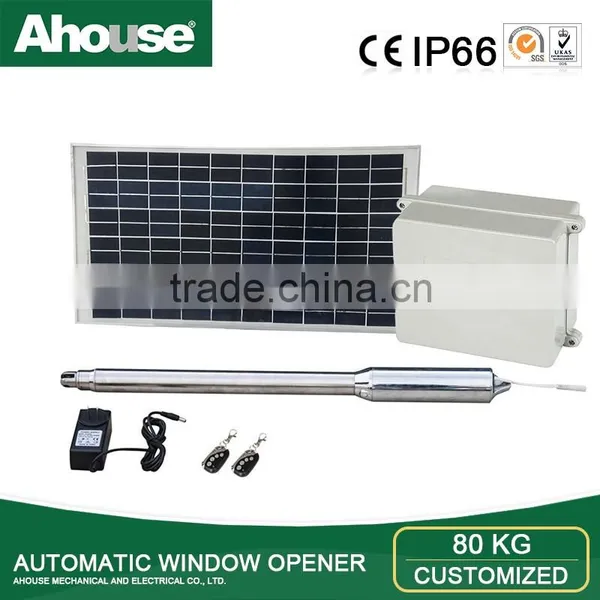

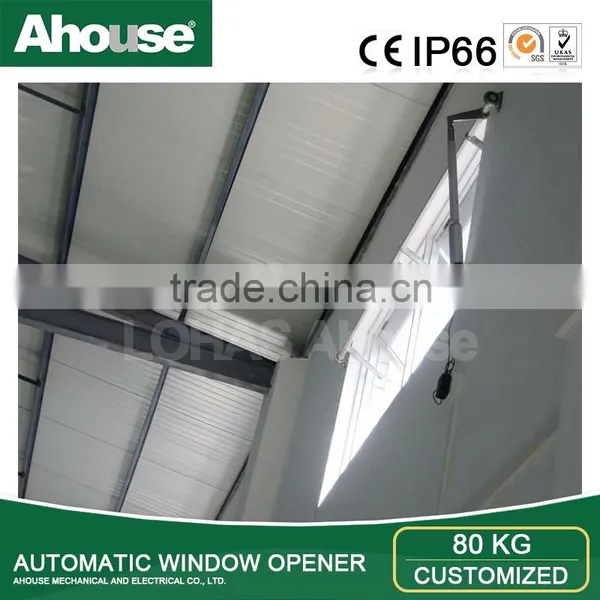

Ahouse Window Actuator - (CE and IP66)
1. DC24V Motor
2. Piston stroke can be manually adjusted
3. Build-in over current safety cut-off feature

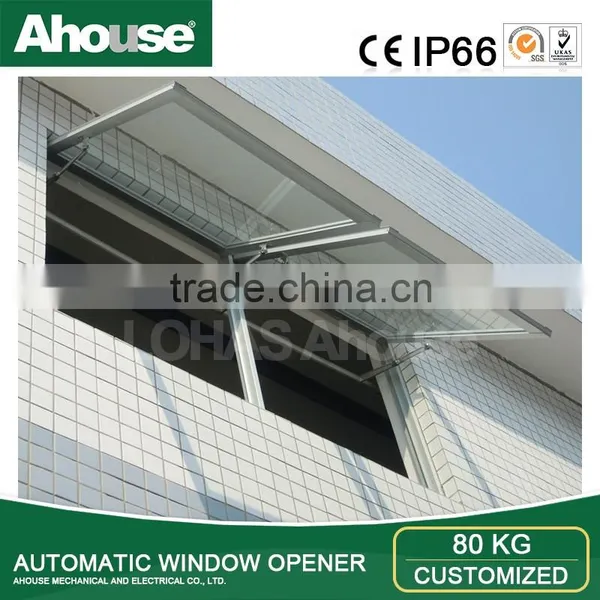

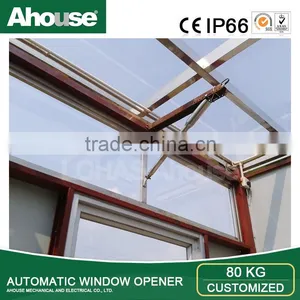

4. Suitable for all dimensions of vent window and roof light
5. Build-in control panel, easy installation
6. Can be controlled by wall switch or remote control, control group by one remote control.
7. Various piston stroke to be selected

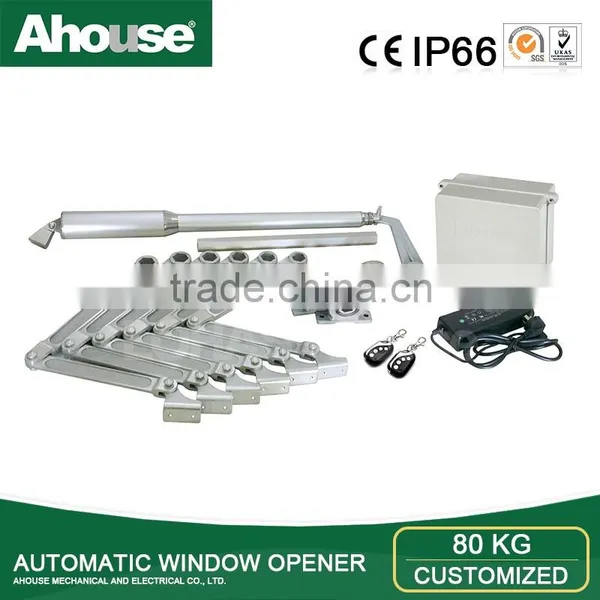

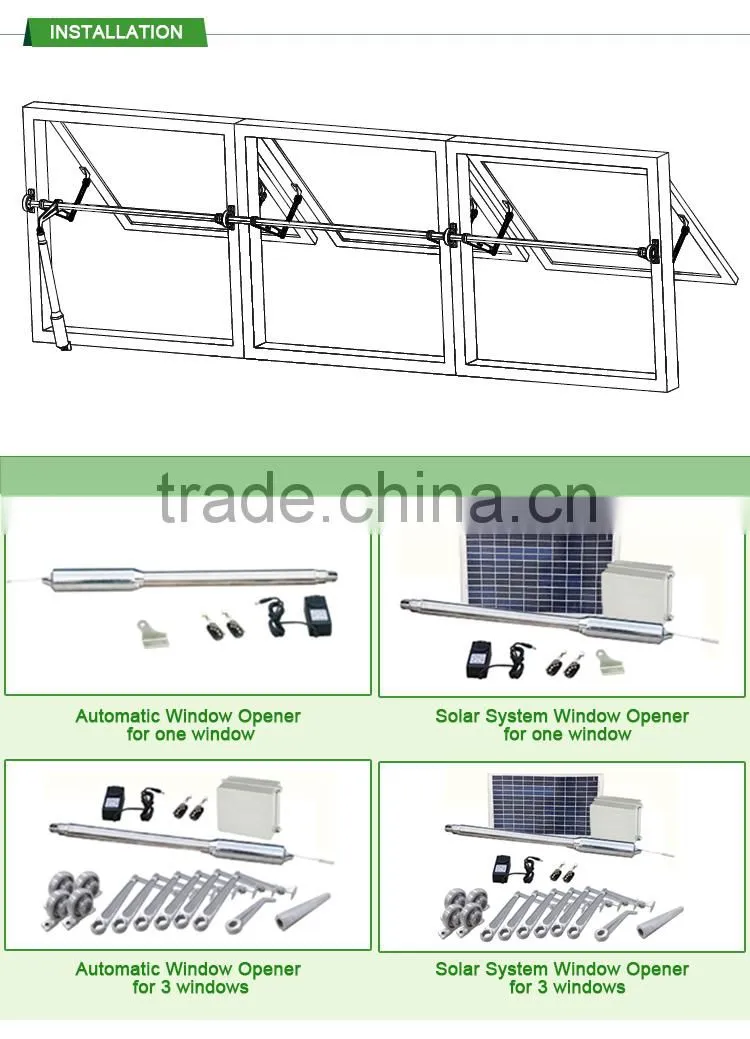

8. Complete supporting bracket kit, suitable for all window type
9. Operating temperature: -25 +50℃
Electrical:
| Supply Voltage | AC110V~230V |
| Operating Voltage | DC 24V |
| Safety Detection | Over Current Detection |
| Optional Device | Heat Detector/ Smoke Detector |
| Controller | Build-in Controller |
| IP Rating | IP66 |

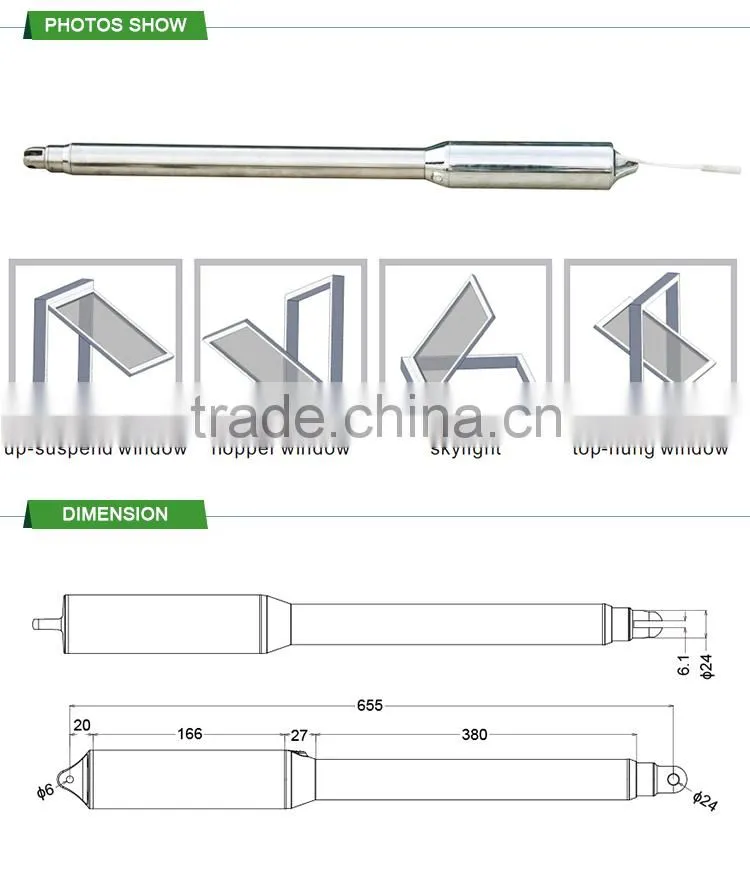

Mechanical:
| Max. Piston Stroke | 300 mm |
| Max. Length of motor | 900 mm |
| Max. Force | 1000 N |
| Frame Housing | Stainless Steel / Aluminum Alloy |
| Driving Method | Screw Driven Piston Type |
| Opening Degree | 0 to 65 Degree |
| Stroke Speed | 30mm/s |
| Temperature | -15℃ to +50℃ |
