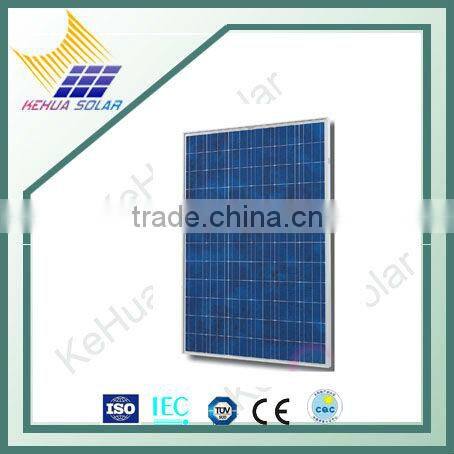

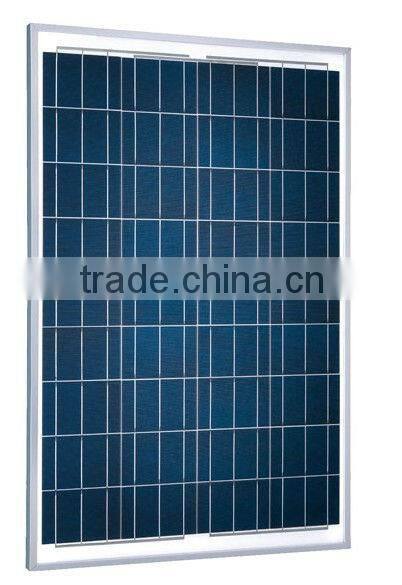

KH-205W Poly-cyrstalline Solar panel module

Specifications

Poly-crystalline Solar panel,
Solar panel modules,
PV panels





Solar panel, Solar Module

1) Solar Cell: High efficiency solar cells ensure high performance of solar module and create maximum power output.
2) Low Iron Tempered Glass: Anti-reflecting coating and high transmission rate glass increase the power output and mechanical strength of solar module.
3) Aluminum Frame: without screw, corner connection. 10 holes on the frame can be installed easily.
4) Superior Junction Box: Multi function junction box with water proof capabilities.
5) Long Lifespan: >= 25 years.
6) Tolerance: +/-3%.
7) Good performance of preventing from atrocious weather such as wind and hails. Resisting moisture and etching effectively, not effect by
8) The certificate issued by international authority: CE, TUV, IEC.



Electrical Parameters:
Pmax: 205W
Voc: 35.3V
Isc: 7.77A
Vmp: 28.5V
Imp: 7.19A
Eff: 15.0%
Maximum series Fuse rating(A): 15

Physical Parameters:
CellMerterial: Poly-crystalline 156*156

CellArray: 6*10/ 156*156mm

Dimensions: 1650mm*992mm*50mm
Weight: 20.0KGS
