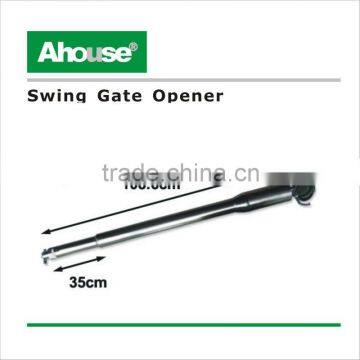

Surfaced Fixed Gate Kits
- Zhuhai or Guang Zhou
- Credit Card
You May Like
-
DIY Solar Gate Kits
-
Auto Double Gates System Kit ,Underground Swing Gate Opener, Wrought Iron Electric Gates, Swing Garage Door Opener, (CE)
-
Ahouse DC24V Gate Opener Remote Control (CEand IP66)
-
Ahouse DC24V Dual Swing Gate Opener (CE and IP66)
-
Ahouse DC24V Electric Gate Opener (EM / CE and IP66)
-
Ahouse DC24V House Gate Designs (EM / CE and IP66)
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ahouse | |
| Model Number | EM |
Product Description

1. Power supply: AC110V to 240V ± 10%, 50 to 60 HZ
2. Operating voltage: DC 24V
3. Solar and AC supply control systems
4. Piston Stroke: 200 to 450 mm
5. Suitable Gate's Length: 1.2m to 7m
6. Max. Gate's Weight: 700 kg
7. CE and IP66 assay certificate
Electrical:
Operating Voltage | DC 24V |
Electronic Controller | Microcontroller Based |
Safety Detection | Over Current Detection |
Safety Barrier | Infrared Beam Sensor (Optional) |
IP Rating | IP66 |
Mechanical:
Swing Type | EM3 Plus | EM 3 | EM 2 |
Max. Piston Stroke | 450 mm | 350 mm | 200 mm |
Max. Length of motor | 1255 mm | 1030 mm | 730 mm |
Max. Leaf's Weight | 300 kg/ Leaf | 300 kg/ Leaf | 300 kg/ Leaf |
Suitable Leaf's Length | 2 to 3.5 meter/ Leaf | 1.5 to 2.5 meter/ Leaf | 1 to 1.6 meter/ Leaf |
Frame Housing | Stainless Steel / Aluminum Alloy | ||
Driving Method | Screw Driven Piston Type | ||
Stroke Speed | 4.5 cm / sec | ||
Opening Degree | 0 to 110 degree | ||
90 Degree Rotation Time | 8 to 12 seconds | ||
Temperature | -15°C to +55°C | ||
Ahouse Surfaced Fixed Gate Kits
1. Manufacturer has patent for manual release mechanism. Use this feature in case of power failure,
during installation or maintenance
2. Easy Self-learning feature
3. Commercial power & solar energy power source can be connected at the same time
4. Over current immediate stop function
5. Adjustment time of fast speed & slow speed
6. Adjustment of force during fast speed & slow speed
7. Auto Close function with adjustable closing time delay
8. Single or dual swing
9. Use max up to 50 sets of remote controllers
10. Quality assurance: CE and IP66 certificate obtained
11. Optional parts: DC24V gate lock, flashing light, photocell, keypad, push button, backup battery
Ahouse provide the good Quality Automation Products. "LOHAS Ahouse"
Ahouse Mechanical and Electrical Co., LTD was established in 1991. After more than 20 years of
development, the company is recognized as one of the industry’s pioneers and has achieved certification
of the CE, I S O 9 0 0 1 International Quality Standard and IP66 & IP67 approved. OEM/ODM orders are
also welcomed.
